Honeywell 51401469-100 Power Supply for TDC 3000

Honeywell 51401469-100 Power Supply for TDC 3000 Automation

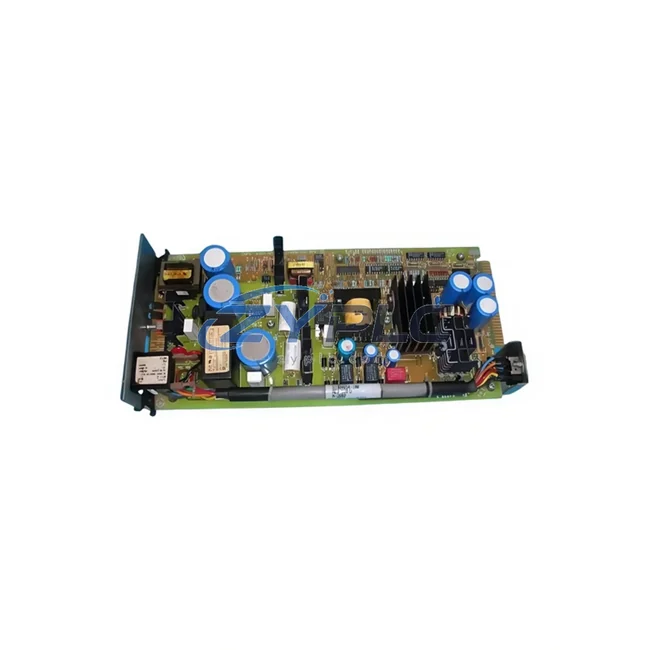

The Honeywell 51401469-100 is a high-efficiency Power Supply Module engineered for the TDC 3000 Distributed Control System platform — one of Honeywell’s most enduring and widely deployed process automation architectures. In energy-intensive industrial environments such as petrochemical refining, pulp and paper, power generation, and continuous manufacturing, the quality and stability of DC power delivery directly determines how efficiently the entire control loop operates. This module addresses that challenge by providing regulated, low-ripple DC output that minimizes resistive losses, reduces thermal stress on downstream components, and sustains uninterrupted control execution across the full production cycle.

Unlike generic replacement power supplies, the 51401469-100 is designed to the exact electrical tolerances required by TDC 3000 subsystems. It integrates seamlessly with the Honeywell TDC 3000 Local Control Network (LCN) backplane, ensuring that critical controllers such as the Advanced Process Manager (APM) and High-Performance Process Manager (HPM) receive clean, stable power without voltage sag or transient spikes that could trigger spurious shutdowns or degrade PID loop performance. When the power supply operates within its rated efficiency band, the entire control architecture — from I/O modules to communication gateways — benefits from reduced electromagnetic interference and more predictable scan cycle timing.

Product Specification Table

System Compatibility and Application

In a fully optimized TDC 3000 control environment, the 51401469-100 Power Supply Module sits at the foundation of the maintenance planning stack. The Honeywell APM (Advanced Process Manager) relies on stable DC rails to execute multi-loop PID strategies without clock drift or watchdog resets — each unplanned reset wastes energy by forcing actuators to hold last-known positions while the controller recovers. Similarly, the Honeywell HPM (High-Performance Process Manager) handles high-speed regulatory control for compressors, turbines, and large motor-driven loads; any power instability at the module level translates directly into control deviation and increased energy consumption at the drive level.

On the drive side, variable frequency drives such as the Honeywell Experion-integrated VFD interfaces depend on accurate process variable feedback delivered through stable I/O power rails. When the 51401469-100 maintains consistent voltage to the Honeywell 51304516-150 Analog Input Module and associated field termination assemblies, the flow, pressure, and temperature signals feeding the drive control loop remain accurate — enabling the VFD to operate motors at the lowest possible speed that still meets process demand, rather than running at fixed speed and wasting energy through throttling valves.

Communication integrity is equally energy-relevant. The Honeywell Universal Control Network (UCN) gateway modules and Data Hiway interface cards that bridge field devices to the LCN require uninterrupted power to maintain token-passing communication cycles. A power interruption — even a brief brownout — can cause the UCN to re-initialize, stalling data flow to the Honeywell GUS (Global User Station) operator consoles and breaking the feedback loop that operators use to trim setpoints for energy efficiency. The 51401469-100 prevents this by providing the hold-up capacity and transient suppression needed to ride through brief grid disturbances.

For condition monitoring, the module supports the power infrastructure that feeds Honeywell 51309276-150 Power Monitor circuits and related metering I/O, enabling plant energy managers to capture real-time kWh data at the process unit level. This data feeds into energy KPI dashboards, allowing maintenance teams to correlate power supply health with overall equipment effectiveness (OEE) and identify unplanned downtime before it becomes a reliability event.

Maintenance and Replacement Notes

In a continuous chemical process plant running 8,760 hours per year, unplanned DCS power-related shutdowns are among the most costly energy events — not because of the power consumed during the trip itself, but because of the energy required to restart reactors, reheat columns, and re-establish steady-state conditions. A single cold restart of a distillation unit can consume the equivalent of several days of normal steady-state energy. The Honeywell 51401469-100 directly reduces this risk by providing the electrical stability that keeps the TDC 3000 platform running continuously.

On the production line timing side, stable power to the process managers ensures that scan cycles execute on schedule. When the APM or HPM misses a scan due to a power anomaly, the control output to final elements — control valves, variable speed pumps, and motor starters — is delayed, causing process variables to drift. Correcting that drift requires additional energy input: more steam, more compressed air, more motor torque. By eliminating the root cause at the power supply level, the 51401469-100 contributes to tighter product quality bands and lower specific energy consumption per unit of output.

Predictive maintenance programs also benefit. When power supply modules are operating within specification, the thermal signatures of downstream I/O cards and communication modules remain stable and predictable. Maintenance teams using infrared thermography or online diagnostics through the Honeywell Experion PKS historian can establish accurate baselines and detect early-stage failures before they cause unplanned downtime. Replacing a degraded 51401469-100 during a planned maintenance window — rather than during an emergency — eliminates the energy penalty of an unscheduled restart and reduces spare parts consumption.

Every unit shipped by ZYPLC undergoes a full outgoing quality test under load conditions before dispatch. This ensures that the module’s output voltage, ripple, and transient response meet OEM specifications on arrival, so installation teams can commission the replacement without iterative troubleshooting that extends downtime. Combined with a warranty terms confirmed during quotation, this testing protocol gives plant engineers the confidence to treat the 51401469-100 as a like-for-like OEM replacement rather than a risk-bearing aftermarket alternative.

Product Sourcing FAQ

Q1: How does the 51401469-100 contribute to operational stability compared to a non-OEM power supply?
A non-OEM supply with looser voltage tolerances forces downstream controllers to operate with wider dead-bands, increasing control valve hunting and motor cycling. The 51401469-100 maintains OEM-specified output stability, enabling tighter PID tuning and lower energy consumption per controlled variable.

Q2: Is the 51401469-100 compatible with both early and late TDC 3000 hardware revisions?
Yes. The 51401469-100 is designed for the TDC 3000 LCN backplane architecture and is compatible across APM, HPM, and associated I/O subsystems. If you are unsure about your specific hardware revision, contact ZYPLC with your existing module part number for confirmation before ordering.

Q3: What is the recommended replacement interval, and how should the module be tested before installation?
Honeywell recommends proactive replacement of power supply modules showing output voltage drift exceeding ±2% of nominal. ZYPLC performs a full load test on every 51401469-100 prior to shipment. Upon receipt, verify output voltage under no-load and full-load conditions before installing into the live backplane to confirm the module meets site-specific requirements.

Q4: What warranty and after-sales support does ZYPLC provide?
Every 51401469-100 supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Our technical team is available to support installation, commissioning, and troubleshooting queries throughout the warranty period.
