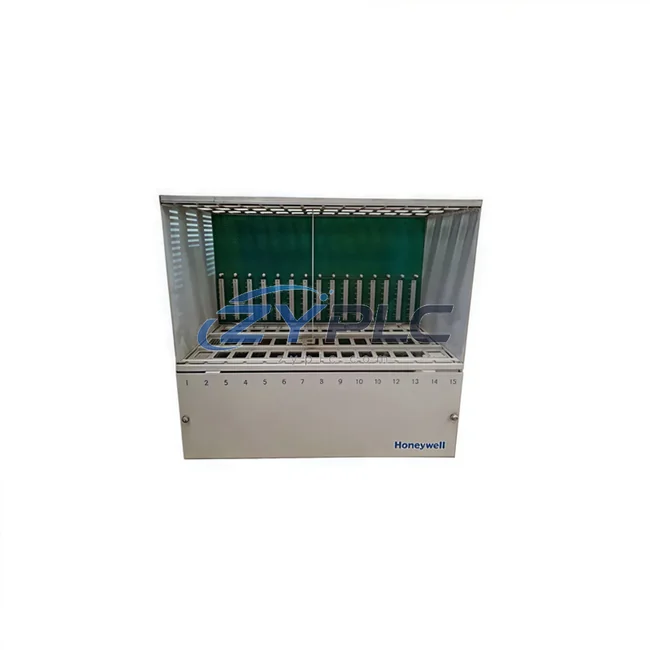

Honeywell 51401546-100 I/O Chassis for TDC 3000

Honeywell 51401546-100 I/O Chassis for TDC 3000 Automation

The Honeywell 51401546-100 is a high-efficiency I/O Chassis Rack engineered for the TDC 3000 and TPS distributed control systems. In modern industrial environments where energy accountability is no longer optional, this chassis serves as the structural and electrical backbone of a lean, responsive control architecture. By consolidating field signal termination, power distribution, and module communication into a single, optimized rack assembly, the 51401546-100 directly reduces the number of active components required per control loop — cutting parasitic power draw and minimizing heat generation across the panel enclosure.

Factories running TDC 3000 platforms depend on the integrity of their I/O infrastructure to maintain accurate energy metering, real-time process feedback, and deterministic control execution. A degraded or mismatched chassis introduces latency into the signal chain, causing controllers to overcorrect — a hidden source of unplanned downtime in motor-driven and valve-actuated processes. The 51401546-100 eliminates this risk by providing a mechanically stable, electrically clean mounting environment for Honeywell High-Performance Process Manager (HPM) and Advanced Process Manager (APM) I/O modules.

Product Specification Table

System Compatibility and Application

The 51401546-100 chassis is most effective when deployed as part of a fully integrated Honeywell TDC 3000 maintenance planning architecture. In a typical high-efficiency plant configuration, the chassis hosts a combination of Honeywell 51304485-100 Analog Input modules for real-time energy signal acquisition and 51304516-100 Analog Output modules for closed-loop actuator control. These modules feed process data — including motor current draw, valve position, and flow rate — directly into the Honeywell HPM (High-Performance Process Manager), which executes PID and advanced control strategies to minimize energy consumption per unit of output.

On the drive side, the TDC 3000 platform communicates with variable frequency drives such as the Honeywell SmartVFD HVAC series via hardwired analog signals or MODBUS RTU links terminated through the I/O chassis. This enables the control system to dynamically adjust motor speed in response to real-time load demand — one of the most impactful levers for reducing electrical energy consumption in pump, fan, and compressor applications. When paired with a Honeywell UDC3500 Universal Digital Controller for local loop backup, the system maintains energy-efficient setpoint tracking even during network interruptions.

For power quality monitoring, the chassis integrates with Honeywell Enraf and third-party power analyzers via the Local Control Network (LCN) and Universal Control Network (UCN) communication backbones. The 51401566-100 Power Supply Module provides regulated, filtered DC power to all chassis slots, preventing voltage sag from propagating into sensitive analog measurement circuits. Complementing this, the Honeywell 51198685-100 I/O Link Interface Module extends the chassis’s reach to remote I/O panels, reducing the need for long analog cable runs — a direct reduction in signal loss and associated energy measurement error.

HMI visibility is maintained through the Honeywell Experion PKS operator station, which aggregates energy KPIs from all TDC 3000 nodes into unified dashboards. Operators can monitor real-time kWh consumption per production unit, identify inefficient control loops, and trigger demand-response actions without leaving the control room. This closed-loop visibility — from field sensor through I/O chassis to HMI — is the foundation of a data-driven energy reduction program.

Maintenance and Replacement Notes

In continuous process industries — refining, petrochemicals, pulp and paper, and power generation — the TDC 3000 platform manages hundreds of control loops simultaneously. The 51401546-100 chassis supports the dense I/O configurations required for these environments, allowing engineers to consolidate field terminations and reduce the number of marshalling cabinets. Fewer cabinets mean lower panel cooling loads, reduced UPS capacity requirements, and a smaller electrical infrastructure footprint.

From a production rhythm perspective, a healthy I/O chassis directly supports line throughput optimization. When I/O modules seat correctly and communicate without retries or CRC errors, the HPM controller can execute its scan cycle at full speed — typically 100–500 ms depending on loop configuration. This deterministic execution prevents the control system from falling behind process dynamics, which would otherwise cause oscillation, overshoot, and the associated unplanned downtime of repeated corrective actuator movements.

Predictive maintenance is another area where the 51401546-100 delivers measurable value. By providing a stable, well-grounded chassis environment, it extends the service life of installed I/O cards and reduces the frequency of nuisance faults caused by poor contact or ground loops. Plants that maintain their TDC 3000 chassis infrastructure report lower mean-time-to-repair (MTTR) for I/O-related faults, translating directly into higher equipment availability and fewer unplanned shutdowns — each of which carries a significant energy penalty due to restart transients and off-spec production.

Every unit of the Honeywell 51401546-100 supplied by ZYPLC undergoes functional inspection and load testing prior to shipment. Stock is maintained on-hand for shipment arranged after confirmation, supporting urgent maintenance windows and planned turnaround schedules. All units are covered by a warranty terms confirmed during quotation, providing procurement teams with the confidence to specify refurbished TDC 3000 components without compromising plant reliability commitments.

Product Sourcing FAQ

Q1: How does the 51401546-100 chassis contribute to operational stability in a TDC 3000 system?
The chassis consolidates I/O termination and power distribution into a single, low-impedance backplane, reducing wiring complexity and panel heat load. By ensuring clean, stable signal paths for energy measurement and control output modules, it enables the HPM controller to execute tighter, more efficient control loops — directly reducing motor and actuator unplanned downtime caused by control oscillation.

Q2: Is the 51401546-100 compatible with both TDC 3000 and TPS system configurations?
Yes. The 51401546-100 is designed for use within the Honeywell TDC 3000 and TotalPlant Solution (TPS) architectures. It is compatible with HPM and APM I/O module families, as well as LCN-connected subsystems. If you are integrating with a hybrid TPS/Experion PKS environment, please confirm your module revision levels before ordering.

Q3: What is the recommended replacement or upgrade path if the chassis shows signs of wear?
For direct replacement, the 51401546-100 is the correct part. If your plant is evaluating a migration toward Experion PKS with SCADA Energy Management, Honeywell’s C300 controller platform with Series C I/O may be considered for new installations. However, for existing TDC 3000 systems with remaining service life, replacing the chassis is the most cost-effective path to restoring system integrity and energy measurement accuracy.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
All ZYPLC-supplied Honeywell 51401546-100 units are visually inspected, electrically tested for backplane continuity and slot integrity, and verified against OEM specifications before dispatch. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Units that fail within the warranty period are replaced or refunded — contact our team at plc.sales@zyplc.com to initiate a warranty claim.
