Honeywell 51401598-100 Industrial Network Interface for TDC3000 Systems

Honeywell 51401598-100 Industrial Network Interface for TDC3000 Systems: Bridging the Industrial Data Link in Smart Factory Environments

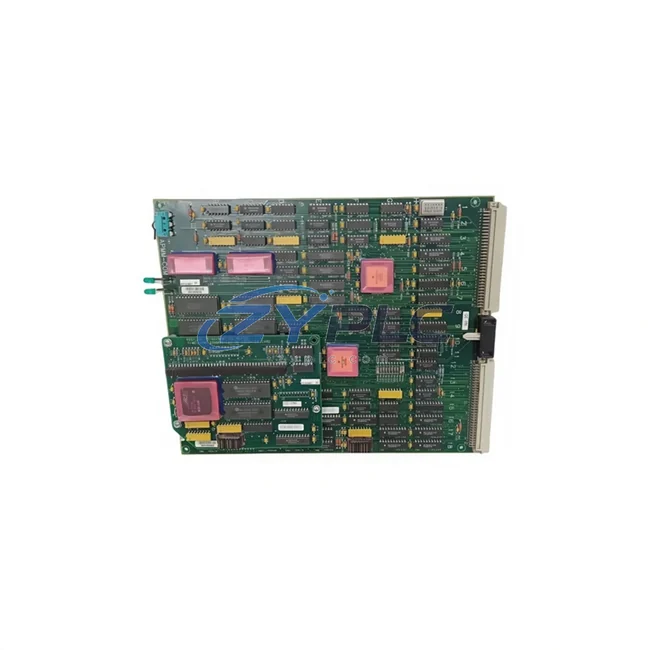

The Honeywell 51401598-100 is a high-reliability Communication Daughter Card engineered for the Honeywell TDC3000 Distributed Control System platform. Designed to serve as a critical node in the industrial data chain, this module enables seamless protocol conversion, real-time signal transmission, and stable network communication between field-level devices and supervisory control layers. Whether deployed in petrochemical refineries, power generation facilities, or advanced manufacturing plants, the 51401598-100 delivers the connectivity backbone that modern smart factories demand.

In today’s industrial landscape, the ability to move data reliably from sensors and actuators through PLCs, remote I/O modules, and HMI terminals up to SCADA and MES platforms is not optional — it is the foundation of operational intelligence. The Honeywell 51401598-100 fulfills this role within the TDC3000 architecture, acting as the communication bridge that keeps every layer of the automation pyramid synchronized and responsive.

Compatibility & Integration Notes

Connected Automation Data Flow

The Honeywell 51401598-100 sits at the heart of the TDC3000 communication architecture, orchestrating data flow across multiple automation layers. At the field level, process signals originate from instruments such as pressure transmitters, flow meters, and temperature sensors — many of which communicate via HART protocol through Honeywell’s field termination assemblies. These signals are aggregated by Honeywell HPM (High-Performance Process Manager) controllers, which rely on communication daughter cards like the 51401598-100 to relay process variable data across the Local Control Network (LCN).

As data travels upward through the network hierarchy, the Honeywell AM (Application Module) and HM (History Module) nodes receive structured process data for real-time trending, alarm management, and historian archiving. The 51401598-100 ensures that this inter-node communication remains deterministic and low-latency, which is critical for closed-loop control applications where millisecond-level response times affect product quality and process safety.

At the supervisory layer, Honeywell Experion PKS SCADA and DCS integration platforms connect to the TDC3000 network via gateway nodes, pulling live process data for operator displays, advanced process control (APC) applications, and enterprise-level MES reporting. The communication daughter card enables this upward data flow without bottlenecks, supporting the full data pipeline from field sensor to control room dashboard.

In multi-network environments, the 51401598-100 also facilitates communication between the TDC3000 platform and adjacent automation systems. For example, Honeywell UCN (Universal Control Network) nodes can interface with remote I/O racks and Honeywell PLC Bridge modules to extend the control network into areas served by programmable logic controllers. This interoperability is essential in hybrid automation environments where legacy DCS infrastructure coexists with modern PLC-based control islands.

Drive systems and variable frequency drives (VFDs) connected to motor control centers can also feed status and diagnostic data into the TDC3000 network through appropriate gateway modules, with the 51401598-100 supporting the communication layer that makes this integration possible. Similarly, Honeywell Safety Manager systems can exchange safety-critical data with the process control network, enabling integrated safety and process control architectures that meet IEC 61511 functional safety requirements.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and supervisory systems operate in silos, unable to share process information efficiently. The Honeywell 51401598-100 directly addresses this challenge within TDC3000 environments by providing a reliable, high-bandwidth communication pathway that eliminates protocol barriers between system nodes.

Protocol Unification: In facilities where multiple generations of control equipment coexist, protocol incompatibility is a constant source of integration friction. The 51401598-100 supports the TDC3000’s native LCN and UCN protocols while enabling gateway configurations that bridge to Modbus RTU, HART, and other field-level communication standards. This allows older instrumentation to participate in modern data architectures without requiring full hardware replacement.

Eliminating Data Silos: By maintaining continuous, real-time communication between HPM controllers, AM application modules, and HM history modules, the 51401598-100 ensures that process data is always available where it is needed — whether for operator decision-making at an HMI console, automated control logic in the DCS, or long-term trend analysis in the historian database. Data silos are replaced by a unified, transparent data fabric that spans the entire plant network.

Remote Monitoring and Diagnostics: Modern industrial operations increasingly rely on remote monitoring capabilities to reduce on-site maintenance costs and enable predictive maintenance strategies. The TDC3000 network, supported by communication daughter cards like the 51401598-100, provides the infrastructure for remote diagnostic access, allowing engineering teams to monitor node health, communication status, and process variable quality from centralized control rooms or even off-site locations via secure network connections.

Production Line Transparency: With the 51401598-100 maintaining reliable inter-node communication, operators gain full visibility into production line status through integrated SCADA displays and HMI screens. Real-time alarm propagation, event logging, and process variable trending give plant personnel the situational awareness needed to respond quickly to process deviations, reducing unplanned downtime and improving overall equipment effectiveness (OEE).

System Scalability: The TDC3000 platform’s modular architecture, supported by communication daughter cards, allows facilities to expand their control networks incrementally as production capacity grows. New HPM controllers, I/O expansion racks, and network nodes can be added to the existing LCN infrastructure without disrupting ongoing operations, providing a scalable path to increased automation coverage.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell 51401598-100 support, and is it compatible with modern SCADA systems?
The 51401598-100 is designed for the Honeywell TDC3000 platform and natively supports the LCN (Local Control Network) and UCN (Universal Control Network) protocols. It is compatible with Honeywell Experion PKS and other SCADA platforms that interface with TDC3000 networks through standard gateway configurations. For integration with third-party SCADA systems, Modbus RTU and HART gateway modules can be used in conjunction with this card.

Q2: How does this module ensure network stability and minimize communication latency in process-critical applications?
The 51401598-100 is engineered for deterministic, real-time communication within the TDC3000 architecture. Its backplane-mounted design minimizes signal path length and eliminates external cabling variability, contributing to consistent, low-latency data transfer. The TDC3000 LCN protocol is specifically designed for time-critical process control, with built-in error detection and redundancy support to maintain network stability even in electrically noisy industrial environments.

Q3: Can the Honeywell 51401598-100 be used to expand an existing TDC3000 system, and what testing is performed before shipment?
Yes, the 51401598-100 is fully compatible with existing TDC3000 installations and can be used as a replacement card or as part of a system expansion. Every unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity and hardware condition. Units are shipped with a warranty terms confirmed during quotation covering manufacturing defects and functional failures, with DHL and FedEx express delivery options available for urgent requirements.

Q4: What is the warranty coverage, and what support is available after purchase?
All Honeywell 51401598-100 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Warranty coverage includes functional failures and manufacturing defects under normal operating conditions. Our technical team is available to assist with installation guidance, compatibility verification, and post-sale support. For urgent inquiries, contact us at +86 19859288691 or plc.sales@zyplc.com.
