Honeywell 51402625-175 MC-PDIS12 Industrial Network Interface for TDC 3000 Systems

Honeywell 51402625-175 MC-PDIS12: Industrial Data Link for TDC 3000 Smart Factory Networks

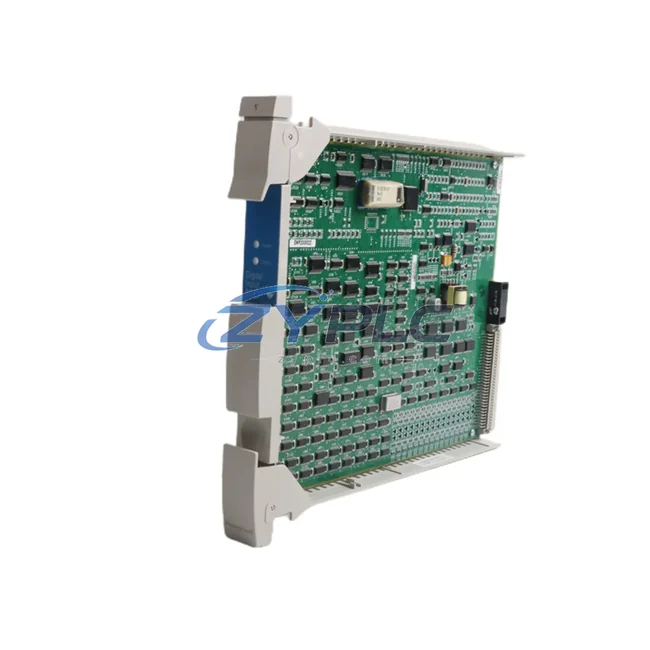

The Honeywell 51402625-175 MC-PDIS12 is a high-performance processor communication module engineered for the TDC 3000 Distributed Control System (DCS) platform. Designed to serve as the central data processing and network interface node within large-scale industrial automation architectures, this module enables seamless, real-time data exchange between field instrumentation, control loops, supervisory systems, and enterprise-level networks. In modern smart factory environments where data latency, protocol fragmentation, and network instability can directly impact production efficiency, the MC-PDIS12 delivers the processing backbone required to maintain continuous, reliable industrial connectivity.

Compatibility & Integration Notes

Connected Automation Data Flow

Within a TDC 3000 control architecture, the Honeywell 51402625-175 MC-PDIS12 functions as the communication processor that orchestrates data movement across every layer of the automation hierarchy. At the field level, process signals originating from pressure transmitters, flow meters, thermocouples, and smart sensors are collected by Honeywell PM (Process Manager) and HPM (High-Performance Process Manager) controllers. These controllers pass real-time process values upward through the UCN (Universal Control Network) — a deterministic, token-passing coaxial network — where the MC-PDIS12 module manages packet routing, error detection, and data prioritization.

As data traverses the UCN, the MC-PDIS12 interfaces with the LCN (Local Control Network) — Honeywell’s high-speed fiber-optic backbone — enabling communication with History Modules (HM), Application Modules (AM), and Universal Stations (US) that serve as the HMI and operator console layer. Operators monitoring production lines through Honeywell TPS (Total Plant Solution) consoles receive live process data, alarm states, and trend histories sourced directly through the MC-PDIS12’s processing pipeline.

For facilities integrating legacy TDC 3000 systems with modern SCADA platforms, the MC-PDIS12 supports OPC DA/UA and Modbus TCP bridging, allowing third-party SCADA software — such as Wonderware InTouch or Ignition SCADA — to subscribe to live process tags without requiring full system replacement. This protocol gateway capability is critical in hybrid environments where Honeywell Experion PKS nodes coexist alongside legacy TDC 3000 infrastructure during phased migration projects.

Remote I/O expansion is supported through Honeywell RHMUX (Remote Hardware Multiplexer) units connected via the UCN, extending the control network’s reach to distributed field junction boxes across large petrochemical plants, refineries, and power generation facilities. The MC-PDIS12 ensures that all remote I/O data is synchronized with the central control database in real time, supporting alarm management, interlock logic, and regulatory control loops without communication gaps.

At the network edge, Honeywell FTE (Fault Tolerant Ethernet) switches provide redundant Ethernet connectivity between DCS nodes and plant-wide IT infrastructure, with the MC-PDIS12 serving as the DCS-side communication anchor. This architecture supports remote diagnostics, predictive maintenance data collection, and integration with MES (Manufacturing Execution Systems) and ERP platforms — completing the data chain from field sensor to enterprise dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of control equipment. Plants running TDC 3000 systems alongside newer Experion PKS nodes, third-party PLCs, or modern edge computing gateways often face data silos where critical process information cannot flow freely between systems. The Honeywell 51402625-175 MC-PDIS12 directly addresses this challenge by acting as a multi-protocol processing bridge within the DCS architecture.

By supporting both the proprietary UCN and LCN networks and open industrial protocols including Modbus RTU/TCP and OPC UA, the MC-PDIS12 enables plant engineers to expose TDC 3000 process data to modern SCADA dashboards, cloud-based analytics platforms, and remote monitoring centers — without replacing the existing control infrastructure. This dramatically reduces the capital expenditure associated with full DCS migrations while immediately improving plant-wide data transparency.

Remote diagnostics capabilities embedded in the MC-PDIS12 allow maintenance teams to monitor module health, communication error rates, and network latency from centralized engineering workstations. Fault conditions — including UCN token loss, LCN fiber errors, or processor overload — are surfaced as alarms within the TPS operator console and can be forwarded to SCADA alarm management systems for escalation and logging. This real-time fault visibility reduces mean time to repair (MTTR) and supports continuous production uptime in critical process industries.

System scalability is another key advantage. As production capacity expands, additional PM or HPM controllers, remote I/O nodes, and HMI stations can be integrated into the existing UCN/LCN network without replacing the MC-PDIS12 processor module — protecting the original capital investment and simplifying future expansion planning.

Every Honeywell 51402625-175 MC-PDIS12 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, processor initialization, and network handshake performance. Units are shipped with full warranty terms confirmed during quotation coverage, supported by our global logistics network via DHL and FedEx for fast delivery to refineries, power plants, chemical facilities, and manufacturing sites worldwide.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell MC-PDIS12 support?
The MC-PDIS12 supports Honeywell’s proprietary UCN (Universal Control Network) and LCN (Local Control Network) protocols natively, and can bridge to Modbus RTU/TCP and OPC DA/UA for integration with third-party SCADA, HMI, and data historian systems. This makes it suitable for both pure TDC 3000 environments and hybrid DCS/SCADA architectures.

Q2: Is the 51402625-175 MC-PDIS12 compatible with Honeywell Experion PKS systems?
The MC-PDIS12 is a TDC 3000 platform module. However, it supports migration-path integration with Experion PKS through OPC UA and FTE Ethernet bridging, making it a viable component in phased migration projects where TDC 3000 and Experion PKS nodes coexist on the same plant network.

Q3: How does ZYPLC ensure network stability and communication reliability before shipment?
Each MC-PDIS12 unit undergoes pre-shipment functional testing that includes processor boot verification, UCN/LCN communication handshake testing, and protocol response validation. All units are covered by a warranty terms confirmed during quotation and shipped via tracked international courier (DHL/FedEx) with full documentation.

Q4: Can the MC-PDIS12 support system expansion without hardware replacement?
Yes. The UCN/LCN architecture supported by the MC-PDIS12 is designed for scalable expansion. Additional PM/HPM controllers, RHMUX remote I/O nodes, and Universal Station HMI consoles can be added to the network without replacing the processor module, supporting long-term plant growth and capacity upgrades.
