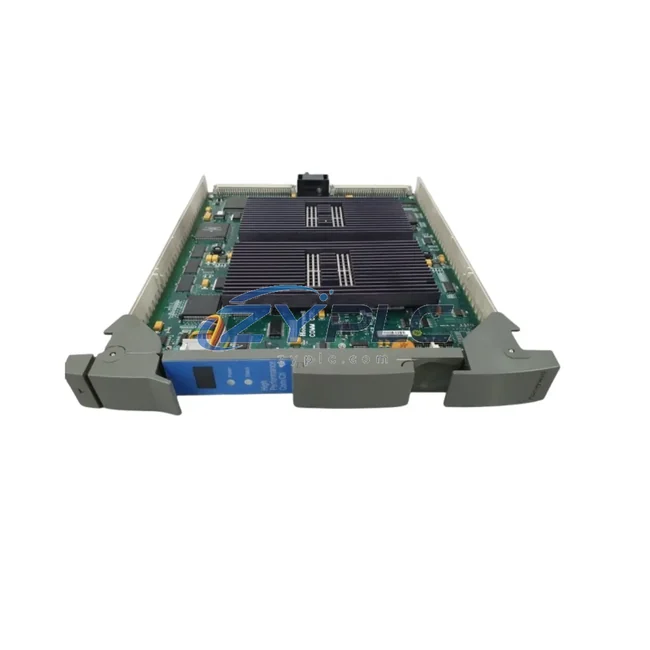

Honeywell 51403422-150 Communication Controller for TDC 3000

Honeywell 51403422-150 Communication Controller for TDC 3000

The Honeywell 51403422-150 is a purpose-built Communication Controller designed for seamless integration within the TDC 3000 Distributed Control System (DCS) architecture. Rather than functioning as a standalone component, this module occupies a critical position in the communication layer of a multi-tier industrial automation hierarchy — bridging the control layer, I/O subsystems, and supervisory network into a unified, high-availability control fabric. For engineers managing large-scale process plants in refining, petrochemical, power generation, or water treatment, the 51403422-150 delivers the communication stability and system coherence that long-term operations demand.

In a fully configured TDC 3000 environment, the 51403422-150 works in close coordination with the High-Performance Manager (HPM) processor and its associated I/O modules. The HPM platform relies on a structured backplane architecture where the communication controller manages data exchange between field I/O cards and the Universal Control Network (UCN). This ensures that analog signals from field instruments — processed through modules such as the Honeywell 51305341-100 Analog Input Module — are accurately transmitted upstream to the operator station without latency or data loss. The 51403422-150 acts as the communication backbone that makes this signal flow reliable and deterministic.

At the network layer, the TDC 3000 system uses the UCN as its primary plant-wide communication bus. The 51403422-150 interfaces directly with this network, enabling the HPM to participate in plant-wide data sharing with other control nodes, historian servers, and operator workstations. Complementary components such as the Honeywell 51402573-100 UCN Interface Module and the Honeywell 51401946-100 TDC 3000 Motherboard provide the physical and logical infrastructure that the 51403422-150 depends on for stable network participation. Together, these modules form a tightly integrated communication stack that supports both real-time control and supervisory data acquisition.

From a power and chassis perspective, the 51403422-150 is installed within the TDC 3000 card cage assembly. The Honeywell 51401477-100 DCS Chassis Assembly provides the mechanical housing and backplane connectivity required for proper module seating and power distribution. Ensuring that the chassis is correctly configured — with appropriate power supply modules and termination assemblies — is essential before commissioning the communication controller. Engineers should also verify backplane slot assignments and address configurations to avoid communication conflicts within the HPM node.

The human-machine interface layer of the TDC 3000 system is served by operator keyboards and display stations that rely on the communication controller to relay process data in real time. The Honeywell 51402497-200 Operator Keyboard and the Honeywell 51402497-100 Enhanced Operator Keyboard are typical HMI components in this architecture. These devices depend on the integrity of the communication path established by the 51403422-150 to display accurate process values, alarm states, and control outputs. Any degradation in communication controller performance directly impacts operator visibility and response capability.

For systems requiring redundancy, the TDC 3000 platform supports dual-redundant HPM configurations where two communication controllers operate in a primary/backup relationship. The Honeywell 2MLR-CPUH/S-CC TDC 3000 CPU Module is commonly paired with redundant communication controllers to ensure that a single point of failure does not interrupt process control. This redundancy architecture is particularly critical in continuous process industries such as oil refining, chemical manufacturing, and power generation, where unplanned shutdowns carry significant safety and financial consequences.

The 51403422-150 also supports integration with memory and processing modules that extend the computational capacity of the HPM node. The Honeywell 51402755-100 Memory Processor Module is a typical companion component that expands the data handling capability of the control node, allowing more complex control strategies and larger I/O point counts to be managed within a single HPM. This modular expandability is one of the defining strengths of the TDC 3000 platform and is fully supported by the communication architecture that the 51403422-150 enables.

For Ethernet-based supervisory connectivity, the Honeywell 51451432-010 Ethernet Cable provides the physical link between the TDC 3000 system and plant-wide Ethernet networks. This connectivity supports data historian integration, remote monitoring, and enterprise-level reporting — all of which depend on the communication controller maintaining stable and accurate data exchange at the field level. The 51403422-150 ensures that the data originating from field instruments reaches the supervisory layer with full fidelity.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and undergo functional testing prior to shipment. system integration support is available to assist engineers with system configuration, slot addressing, firmware compatibility verification, and commissioning guidance. Our inventory is maintained to support both planned maintenance schedules and emergency replacement requirements, minimizing downtime for critical process operations.

Product Specification Table

System Compatibility Notes

The Honeywell 51403422-150 Communication Controller is most effective when deployed as part of a fully coordinated TDC 3000 control node. A typical HPM-based control station includes the following coordinated components: the Honeywell 2MLR-CPUH/S-CC TDC 3000 CPU Module as the primary processing unit; the Honeywell 51402755-100 Memory Processor Module for extended data capacity; the Honeywell 51305341-100 Analog Input Module for field signal acquisition; the Honeywell 51401135-300 Digital Input Assembly Module for discrete I/O; the Honeywell 51402573-100 UCN Interface Module for network connectivity; the Honeywell 51401946-100 TDC 3000 Motherboard as the backplane foundation; the Honeywell 51401477-100 DCS Chassis Assembly for physical housing; the Honeywell 51402497-100 Enhanced Operator Keyboard and Honeywell 51402497-200 Operator Keyboard for HMI access; and the Honeywell 51451432-010 Ethernet Cable for supervisory network integration. Each of these components contributes to a system architecture where the 51403422-150 serves as the communication hub, ensuring that control commands, process data, and alarm signals flow reliably across all layers of the automation hierarchy.

Industrial Application Notes

The Honeywell 51403422-150 is deployed across a wide range of process industries where the TDC 3000 platform remains the backbone of plant automation. In petroleum refining, the module supports continuous monitoring and control of distillation columns, heat exchangers, and reactor systems where communication reliability directly affects product quality and safety compliance. In power generation facilities, the 51403422-150 enables coordinated control of turbine governors, boiler management systems, and auxiliary equipment through a unified DCS communication network. In petrochemical and chemical manufacturing plants, the module supports multi-loop control strategies that require deterministic data exchange between field instruments and the control room. Water treatment and wastewater management facilities use the TDC 3000 platform for SCADA integration and remote monitoring, where the communication controller ensures that flow, pressure, and chemical dosing data are accurately reported to the supervisory system. Mining and metallurgical operations rely on the HPM platform for conveyor control, crusher management, and smelting process regulation, all of which depend on the communication integrity provided by the 51403422-150. Packaging and discrete manufacturing lines that have integrated TDC 3000 systems for batch control and recipe management also benefit from the module’s ability to maintain stable communication across high-cycle-rate production environments.

Product Compatibility FAQ

Q1: Is the Honeywell 51403422-150 compatible with both standard and redundant HPM configurations?
Yes. The 51403422-150 is designed to operate in both simplex and dual-redundant HPM node configurations. In redundant deployments, two communication controllers are installed in the primary and backup HPM chassis, with automatic failover managed by the TDC 3000 system software. Engineers should verify slot addressing and UCN node ID assignments during commissioning to ensure proper redundancy handshaking.

Q2: What commissioning steps are required when replacing a 51403422-150 in an existing TDC 3000 system?
Replacement commissioning involves verifying the UCN node address configuration, confirming backplane slot compatibility within the HPM chassis, and performing a communication diagnostic using the TDC 3000 engineering workstation. ZYPLC’s system integration support team can assist with pre-installation configuration review and post-installation verification to minimize process disruption during the replacement procedure.

Q3: What does the warranty terms confirmed during quotation cover for the Honeywell 51403422-150?
The warranty terms confirmed during quotation provided by ZYPLC covers functional defects identified during normal operation under specified environmental conditions. All units are tested prior to shipment to confirm communication functionality and electrical integrity. Warranty claims are supported by ZYPLC’s technical team, and replacement units can be expedited to minimize downtime for critical process control applications. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 for warranty service inquiries.
