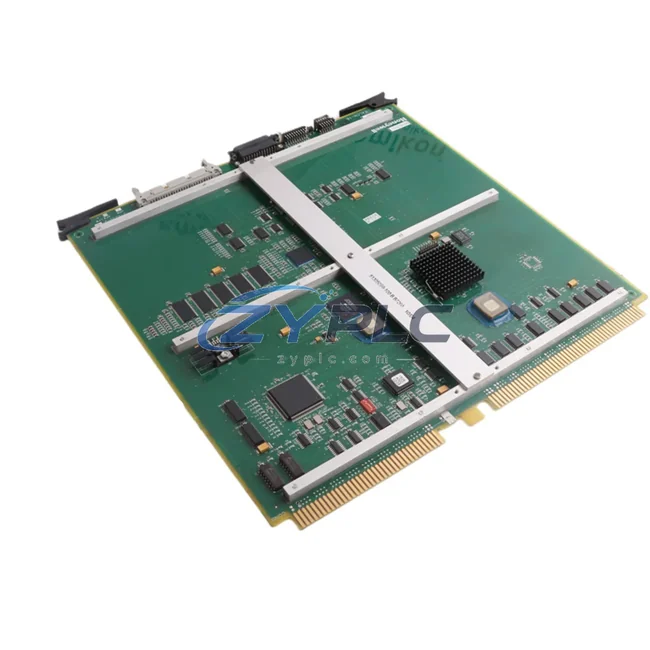

Honeywell 51403519-160 K4LCN-16 Industrial Network Interface for TDC 3000 Systems

Honeywell 51403519-160 K4LCN-16 Industrial Network Interface for TDC 3000 Systems: Backbone of Industrial Data Link and Smart Factory Connectivity

The Honeywell 51403519-160 K4LCN-16 is a high-performance Local Control Network (LCN) communication module engineered for the Honeywell TDC 3000 Distributed Control System. As a critical node in the industrial data chain, the K4LCN-16 enables seamless, deterministic communication between field devices, process controllers, and supervisory systems — forming the backbone of real-time automation in refineries, chemical plants, power generation facilities, and advanced manufacturing environments. With its robust LCN architecture, this module ensures that data flows reliably from signal acquisition at the field level all the way to SCADA dashboards and enterprise MES platforms, eliminating data silos and enabling full production transparency.

In smart factory deployments, the 51403519-160 K4LCN-16 acts as the central communication bridge that connects process controllers, remote I/O nodes, HMI workstations, and historian servers into a unified, high-speed network. Its deterministic token-passing LCN protocol guarantees low-latency, collision-free data transmission — a critical requirement in process-critical environments where milliseconds matter. Whether integrating legacy TDC 3000 infrastructure with modern SCADA platforms or expanding an existing DCS network, this module delivers the connectivity, stability, and scalability that industrial operations demand.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated TDC 3000 environment, the Honeywell 51403519-160 K4LCN-16 sits at the heart of the plant-wide communication architecture. The data journey begins at the field level, where sensors, transmitters, and actuators feed analog and digital signals into Honeywell PM (Process Manager) and HPM (High-Performance Process Manager) controllers via the Universal Control Network (UCN). The K4LCN-16 module then bridges these process controllers onto the high-speed LCN backbone, enabling real-time data exchange with upstream systems.

Connected to the LCN, Honeywell NIM (Network Interface Module) units — such as the 51401642-100 series — serve as gateways between the LCN and external Ethernet-based networks, allowing SCADA platforms like Honeywell Experion PKS or third-party systems to access live process data. Honeywell GUS (Global User Station) and US (Universal Station) HMI workstations connect directly to the LCN via the K4LCN-16 infrastructure, providing operators with real-time process visualization, alarm management, and trend analysis.

For historian and data logging functions, the Honeywell PHD (Process Historian Database) server retrieves time-stamped process variables from the LCN network, enabling long-term performance analysis and regulatory compliance reporting. In parallel, Honeywell AM (Application Module) nodes — including advanced control and optimization applications — communicate across the LCN to execute model predictive control (MPC) and real-time optimization strategies.

At the remote I/O level, Honeywell LLMUX (Low-Level Multiplexer) modules aggregate signals from thermocouples, RTDs, and pressure transmitters, feeding structured data packets into the UCN and ultimately through the K4LCN-16 to the supervisory layer. For drive and motor control integration, Honeywell Smart Transmitter Interface Modules and third-party HART-compatible field devices communicate through UCN-connected I/O subsystems, with the K4LCN-16 ensuring that all data reaches the SCADA and MES layers without packet loss or communication delay.

This end-to-end data flow — from field sensor through UCN controller, across the LCN backbone via the 51403519-160 K4LCN-16, and up to SCADA, historian, and enterprise systems — represents the complete industrial data chain that modern smart factories depend on for real-time visibility, predictive maintenance, and operational excellence.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is protocol fragmentation and data isolation. Older TDC 3000 installations often suffer from communication bottlenecks when aging LCN modules fail or degrade, causing entire network segments to lose connectivity. The Honeywell 51403519-160 K4LCN-16 directly addresses this by restoring full LCN network integrity, ensuring that all nodes — from process controllers to HMI workstations — can communicate without interruption.

In multi-protocol environments where TDC 3000 systems must coexist with modern Ethernet-based SCADA platforms, the K4LCN-16 provides the stable LCN foundation that gateway modules like the NIM rely on to perform protocol translation. Without a reliable LCN backbone, protocol conversion fails, and data islands form — leaving operators blind to critical process variables. By maintaining deterministic LCN communication, the K4LCN-16 ensures that every data point, from flow rates and temperatures to alarm states and control outputs, reaches the supervisory layer in real time.

For plants pursuing production line transparency and digital transformation, the K4LCN-16 enables the integration of TDC 3000 process data into modern MES, ERP, and cloud analytics platforms via OPC-DA/UA gateways connected to the LCN network. This eliminates manual data collection, reduces reporting latency from hours to seconds, and provides management with live KPI dashboards reflecting actual plant performance.

Remote diagnostics and predictive maintenance are also significantly enhanced by a stable K4LCN-16 installation. With the LCN network operating reliably, remote engineering workstations can access controller diagnostics, I/O status, and network health metrics without requiring on-site intervention — reducing maintenance costs and minimizing unplanned downtime. All units supplied by ZYPLC undergo comprehensive pre-shipment functional testing to verify LCN communication integrity, module initialization, and backplane compatibility before dispatch.

Industrial Connectivity FAQ

Q1: What communication latency can be expected from the Honeywell 51403519-160 K4LCN-16 on a TDC 3000 LCN network?
The TDC 3000 LCN uses a deterministic token-passing protocol that guarantees bounded communication latency, typically in the range of 1–10 milliseconds per token cycle depending on network load and the number of nodes. The K4LCN-16 module is designed to maintain this deterministic performance even under high data throughput conditions, making it suitable for time-critical process control applications in refining, chemical, and power generation industries.

Q2: Is the Honeywell K4LCN-16 compatible with both legacy TDC 3000 and modern Experion PKS environments?
Yes. The K4LCN-16 is fully compatible with the Honeywell TDC 3000 LCN architecture and can coexist in hybrid environments where TDC 3000 and Experion PKS systems share the same plant network via NIM gateway modules. This makes it an ideal solution for phased migration projects where legacy DCS infrastructure must remain operational while modern control systems are progressively integrated.

Q3: How does ZYPLC ensure network stability and compatibility before shipping the 51403519-160 K4LCN-16?
Every Honeywell 51403519-160 K4LCN-16 unit supplied by ZYPLC undergoes a rigorous pre-shipment testing protocol that includes LCN communication verification, backplane interface testing, module initialization checks, and firmware version confirmation. Units are tested in a live TDC 3000 environment to validate full network participation before dispatch. All units are covered by a warranty terms confirmed during quotation and shipped via DHL or FedEx Express with full tracking.

Q4: Can the K4LCN-16 support system expansion and additional LCN node integration?
Absolutely. The TDC 3000 LCN architecture supports up to 64 nodes per network segment, and the K4LCN-16 is fully compatible with network expansion projects that add new process managers, application modules, HMI stations, or NIM gateways. ZYPLC maintains ready inventory of K4LCN-16 modules and complementary TDC 3000 components to support both emergency replacement and planned system expansion projects with minimal lead time.
