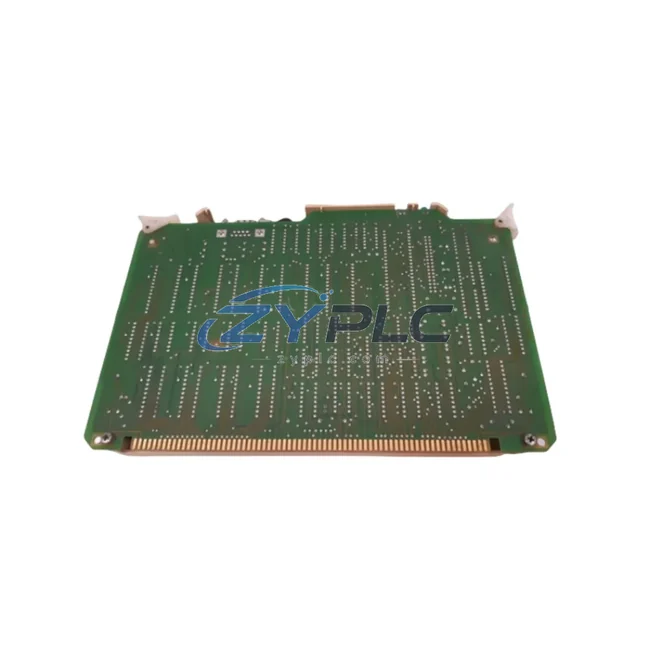

Honeywell 620-0080 Processor for 620 Series

Honeywell 620-0080 Processor for 620 Series: Compatibility and Replacement Notes

The Honeywell 620-0080 is a VR 3.1 processor module purpose-built for the Honeywell 620 Series programmable logic controller platform. Within a layered industrial automation architecture, this processor module occupies the central control tier — orchestrating signal acquisition from distributed I/O modules, executing ladder logic and function block programs, managing inter-rack communications, and delivering deterministic scan-cycle performance across the full system. Understanding the 620-0080 not as a standalone component, but as the architectural nucleus of a complete 620 Series control system, is essential for engineers designing reliable, scalable, and maintainable automation solutions in manufacturing, power generation, petrochemical processing, water treatment, mining, metallurgy, and continuous process industries.

The 620 Series platform was engineered by Honeywell for demanding industrial environments where uptime, signal integrity, and long-term maintainability are non-negotiable. The 620-0080 processor module integrates directly into the 620 Series backplane, communicating with I/O modules, power supply units, and communication interface cards through the rack bus architecture. Its VR 3.1 firmware revision ensures compatibility with the full range of 620 Series I/O modules — including analog input modules, discrete output modules, thermocouple input modules, and high-density digital I/O cards — enabling engineers to configure systems with the precise signal mix required by their process.

Product Specification Table

System Compatibility Notes

The 620-0080 processor module achieves its full architectural value when deployed within a coordinated 620 Series system. At the power layer, the Honeywell 620-0024 Power Supply Module provides regulated 5 VDC and 24 VDC rails to the backplane, ensuring the processor and all co-resident I/O modules receive stable, noise-filtered power — a prerequisite for deterministic scan-cycle execution. Engineers specifying redundant power architectures often pair dual 620-0024 units with automatic switchover logic to eliminate single-point power failure.

At the I/O layer, the 620-0080 communicates directly with discrete and analog I/O modules installed in the same rack or in remote I/O expansion racks. The Honeywell 620-0016 Discrete Input Module and 620-0017 Discrete Output Module handle digital field signals — limit switches, solenoid valves, motor contactors — while the Honeywell 620-0035 Analog Input Module processes 4–20 mA and 0–10 VDC signals from pressure transmitters, flow meters, and temperature sensors. For thermocouple-based temperature measurement in furnace or kiln applications, the 620-0036 Thermocouple Input Module provides direct millivolt-level signal conditioning without external signal converters.

At the network and communications layer, the Honeywell 620-0042 Communication Interface Module extends the 620-0080’s connectivity to SCADA systems, DCS integration points, and HMI platforms via Modbus RTU or proprietary Honeywell data highway protocols. This enables the processor to participate in plant-wide data acquisition architectures, feeding real-time process values to historian servers and operator workstations without disrupting the deterministic control scan. For facilities integrating the 620 Series into a broader Honeywell TDC 3000 or Experion PKS environment, the communication module provides the system integration bridge between legacy 620 Series control logic and modern supervisory platforms.

At the human-machine interface layer, operator panels and HMI terminals — such as Honeywell-compatible Magelis or Panel PC HMI stations — connect to the 620-0080 via the communication interface module, providing operators with real-time process visualization, alarm management, and manual override capability. The processor’s program memory retains ladder logic and configuration data through power cycles via battery-backed RAM or EEPROM, ensuring rapid restart without re-programming after planned or unplanned shutdowns.

For applications requiring processor redundancy — common in power generation, offshore platforms, and continuous chemical processes — the 620 Series supports hot-standby processor configurations using a secondary 620-0080 processor module in a redundant rack, with automatic bumpless transfer upon primary processor fault detection. Terminal modules and marshalling panels, such as Honeywell 620 Series terminal base assemblies, provide the field wiring interface between the I/O modules and field instrumentation, simplifying maintenance by allowing module hot-swap without disturbing field wiring.

Industrial Application Notes

Manufacturing and Discrete Production Lines: In automotive assembly, electronics manufacturing, and consumer goods packaging lines, the 620-0080 manages conveyor sequencing, robotic cell interlocking, vision system triggers, and reject gate control. Its deterministic scan cycle ensures that high-speed discrete events — part presence detection, torque verification, label application — are processed within the timing tolerances required by production line throughput targets.

Power Generation and Electrical Utilities: In coal-fired, gas turbine, and hydroelectric generation facilities, the 620-0080 participates in auxiliary control systems — managing cooling water pumps, fuel oil forwarding systems, generator excitation auxiliaries, and switchyard interlocking. Its robust operating temperature range and industrial-grade backplane design ensure reliable operation in the high-EMI environments typical of generator halls and switchgear rooms.

Petrochemical and Refinery Process Control: In distillation column control, heat exchanger management, and compressor anti-surge applications, the 620-0080 executes PID control loops and cascade strategies that maintain product quality and process safety. Integration with analog I/O modules enables closed-loop control of flow, pressure, temperature, and level variables across complex process trains.

Water and Wastewater Treatment: Municipal water treatment plants and industrial effluent systems deploy the 620-0080 for pump station sequencing, chemical dosing control, filtration backwash automation, and SCADA data reporting. Its long-term platform stability and available spare parts inventory make it a preferred choice for infrastructure projects with 20+ year operational lifespans.

Mining, Metallurgy, and Mineral Processing: In crusher control, conveyor protection, flotation cell management, and smelter auxiliary systems, the 620-0080 provides the control intelligence for high-power, high-inertia drive systems. Its compatibility with motor protection relays, variable frequency drives, and soft-starter control interfaces — via discrete and analog I/O modules — enables comprehensive motor management within a unified control architecture.

Product Compatibility FAQ

Q1: Is the Honeywell 620-0080 compatible with all 620 Series I/O modules, and can it support remote I/O expansion racks?
The 620-0080 VR 3.1 processor is compatible with the full range of Honeywell 620 Series I/O modules, including discrete input/output, analog input/output, and thermocouple input modules. Remote I/O expansion is supported via the 620 Series remote I/O adapter and communication interface modules, allowing the processor to address I/O points distributed across multiple racks within the same control system architecture. Engineers should verify rack addressing configuration and cable distance limitations during system design to ensure reliable backplane communication across all expansion racks.

Q2: How does the 620-0080 integrate into a SCADA or DCS environment, and what communication protocols are supported for system integration?
The 620-0080 supports serial communication via RS-232 and RS-485 interfaces, with Modbus RTU being the most widely used protocol for SCADA integration. For Honeywell DCS environments — including TDC 3000 and Experion PKS — the 620 Series communication interface module provides proprietary data highway connectivity, enabling system integration of 620 Series control data into plant-wide historian, alarm management, and advanced process control platforms. Protocol gateway devices can also bridge the 620-0080 to Ethernet-based networks (Modbus TCP, EtherNet/IP) for integration with modern SCADA architectures.

Q3: What does the warranty terms confirmed during quotation cover for the 620-0080, and what is the recommended maintenance strategy for long-term system reliability?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures occurring under normal operating conditions, including processor logic failures, backplane communication faults, and firmware-related operational issues. For long-term system reliability, engineers are advised to maintain a cold-spare 620-0080 unit in inventory, perform annual diagnostic scans using the 620 Series programming terminal, verify battery-backed RAM integrity at scheduled maintenance intervals, and document firmware revision levels across all installed processor modules. Proactive spare parts management — supported by ZYPLC’s RFQ-confirmed sourcing and global shipping capability — ensures that unplanned processor failures result in minimal production downtime.
