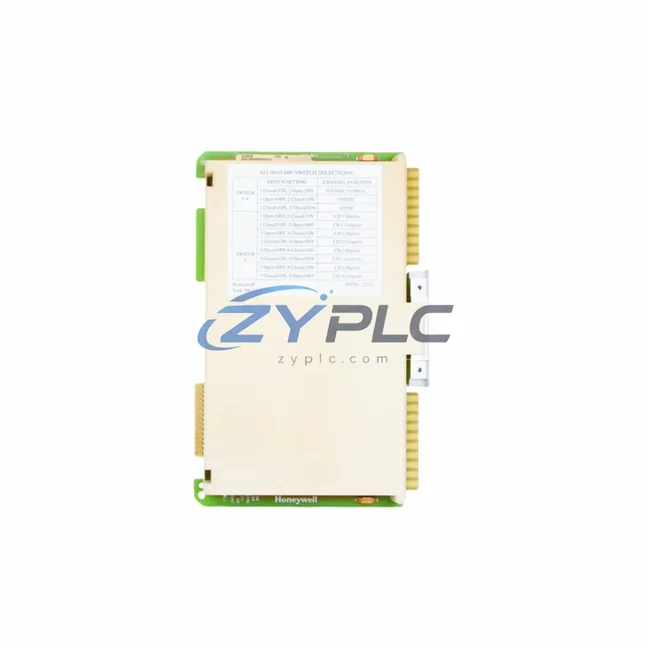

Honeywell 621-0010R Analog Output Module for Series 620 Automation
The Honeywell 621-0010R is a high-precision analog output module engineered for the Series 620 programmable controller platform. Designed to meet the demanding requirements of industrial process control environments, this module delivers stable 4–20 mA current loop outputs with 12-bit resolution, enabling fine-grained control over actuators, variable-speed drives, and proportional control valves. In energy-intensive manufacturing environments — from petrochemical refining to discrete parts assembly — the 621-0010R plays a central role in reducing unplanned downtime risk by ensuring that control signals are accurate, repeatable, and free from drift.
Unlike generic analog output cards, the 621-0010R is factory-calibrated and shipment-tested to confirm output linearity and channel isolation before leaving the warehouse. Each unit sold by ZYPLC undergoes a full functional verification cycle, and is backed by a warranty terms confirmed during quotation, giving procurement engineers and maintenance teams the confidence to deploy it in critical loops without extended commissioning delays.
Product Specification Table
| Parameter |
Specification |
| Output Signal |
4–20 mA (current loop, isolated) |
| Resolution |
12-bit (1 in 4096) |
| Number of Channels |
1 (single-channel output) |
| Power Consumption |
Low-draw design, compatible with Series 620 backplane power budget |
| Operating Efficiency |
High linearity (<0.1% full-scale error), minimizing control overshoot and unplanned downtime |
| Compatible Systems |
Honeywell Series 620 PLC platform (620-0083, 620-0036, 620-0080 backplanes) |
| Application Environment |
Industrial process control, HVAC, motor drive regulation, flow/pressure loops |
| Energy Saving Value |
Precise output reduces actuator hunting, lowers motor energy draw, extends valve life |
| Operating Temperature |
0°C to 60°C (standard industrial range) |
| Warranty |
12 months from date of shipment |
System Compatibility and Application
The 621-0010R does not operate in isolation — its maintenance planning value is fully realized when integrated into a well-structured Series 620 automation architecture. In a typical maintenance-focused control loop, the Honeywell 621-9940C CPU module serves as the central processing unit, executing ladder logic or function block programs that calculate the optimal output setpoint based on real-time process feedback. The 621-0010R then translates that digital setpoint into a precise 4–20 mA signal, driving downstream field devices with minimal latency.
On the input side, the Honeywell 621-0020R analog input module collects process variable data — temperature, pressure, flow rate — and feeds it back to the CPU. This closed-loop configuration, combining the 621-0020R for sensing and the 621-0010R for actuation, forms the backbone of energy-efficient PID control. When the process variable deviates from setpoint, the controller responds with a proportional correction rather than a binary on/off command, dramatically reducing energy spikes associated with bang-bang control strategies.
For applications requiring expanded I/O density, the Honeywell 621-0030R multi-channel analog output module can be deployed alongside the 621-0010R to control multiple drive references or valve positioners simultaneously from a single rack slot. The 621-1100R digital input module handles discrete feedback signals — motor run confirmations, limit switch states, fault relays — ensuring the analog output loop is only active when the mechanical system is in a ready state, preventing wasted energy from driving actuators against closed valves or stalled motors.
Communication and data visibility are handled through the Honeywell 621-3560R communication module, which supports Modbus RTU and other industrial protocols, enabling the Series 620 system to exchange operating load data with plant-level SCADA systems or maintenance planning platforms. Operators can monitor real-time output values, loop performance metrics, and alarm states from an HMI panel connected via the 621-9928 interface module, giving maintenance teams the visibility needed to identify inefficient control loops before they translate into measurable energy losses.
The entire rack assembly is powered through the 620-0036 power supply module, which provides regulated DC power to all installed modules including the 621-0010R. Proper power supply sizing is critical in energy-optimized systems — an undersized supply introduces voltage ripple that degrades analog output accuracy, while an oversized supply wastes standby power. The 620-0036 is matched to the Series 620 backplane’s power budget, ensuring each module operates within its rated envelope.
Maintenance and Replacement Notes
In real-world production environments, the Honeywell 621-0010R contributes to operational stability through several interconnected mechanisms. The most direct impact is on variable-speed drive (VSD) control. When the 621-0010R provides the speed reference signal to a frequency inverter — such as those used to regulate pump motors, fan drives, or conveyor systems — the precision of the 4–20 mA output directly determines how accurately the drive tracks the desired speed setpoint. A poorly calibrated or drifting analog output forces the drive to hunt around the setpoint, consuming excess energy in the process. The 621-0010R’s 12-bit resolution and factory-verified linearity eliminate this hunting behavior, keeping motor load at the theoretical minimum for any given load condition.
Beyond motor control, the 621-0010R is widely used to position proportional control valves in fluid handling systems. In steam distribution networks, cooling water circuits, and compressed air systems, valve positioning accuracy directly affects system pressure stability. An inaccurate analog output causes the valve to oscillate around the target position, creating pressure fluctuations that force compressors and pumps to work harder than necessary. By delivering a stable, accurate control signal, the 621-0010R helps maintain system pressure within tight bands, reducing compressor cycling and lowering overall utility consumption.
From a maintenance perspective, the 621-0010R’s channel isolation design protects against ground loops and common-mode noise that can corrupt analog signals in electrically noisy industrial environments. Signal corruption leads to erratic actuator behavior, which accelerates mechanical wear on valves, dampers, and drive couplings. By maintaining signal integrity, the module extends the service life of downstream field devices, reducing both maintenance labor costs and the energy embedded in replacement parts manufacturing.
ZYPLC maintains ready stock of the 621-0010R and related Series 620 components, supporting rapid deployment for both planned upgrades and emergency replacements. All units are shipped with full test documentation, and the warranty terms confirmed during quotation covers both functional defects and calibration drift beyond published specifications.
Product Sourcing FAQ
Q1: How does the 621-0010R contribute to measurable operational stability in a motor control application?
The 621-0010R provides a stable, high-resolution 4–20 mA reference signal to variable-speed drives, eliminating setpoint hunting and keeping motor speed precisely matched to process demand. In pump and fan applications, even a 5% reduction in average motor speed translates to approximately 14% lower operating load due to the affinity laws governing centrifugal loads.
Q2: Is the 621-0010R compatible with third-party PLCs or only the Honeywell Series 620 platform?
The 621-0010R is designed specifically for the Honeywell Series 620 backplane architecture and is not directly compatible with third-party PLC racks. However, its 4–20 mA output signal is a universal industrial standard, and the module can drive any field device that accepts a standard current loop input, regardless of the downstream device’s manufacturer.
Q3: What is the recommended replacement or upgrade path if the 621-0010R is discontinued or unavailable?
For applications requiring a direct replacement, the Honeywell 621-0020R (configured for output) or the multi-channel 621-0030R can serve as functional alternatives within the Series 620 platform. ZYPLC’s technical team can assist with compatibility verification and provide tested replacement units from current inventory.
Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
The warranty terms confirmed during quotation covers all functional defects, including output accuracy failures, channel isolation breakdown, and backplane connector faults. Prior to shipment, each 621-0010R unit undergoes a full functional test cycle: output linearity verification across the 4–20 mA range, channel isolation resistance measurement, and backplane communication handshake confirmation. Test records are available upon request.
