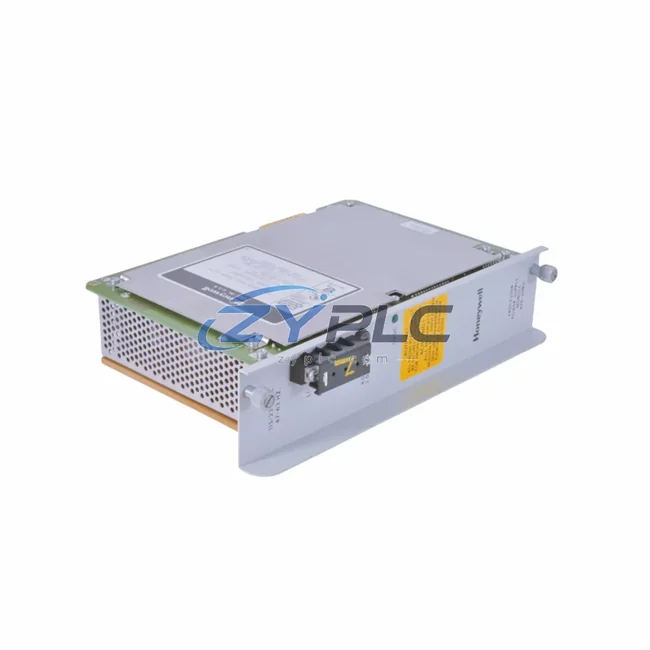

Honeywell 621-0024R Pulse Input Module for 620 Systems

Honeywell 621-0024R Industrial Network Interface for 620 Systems: Bridging Field Devices to Smart Factory Data Flows

The Honeywell 621-0024R is a high-performance Pulse Input Module engineered for the Series 620 Distributed Control System (DCS) platform. Designed to capture and digitize pulse signals from field instrumentation — including flow meters, turbine sensors, encoders, and proximity switches — this module serves as a critical node in the industrial data chain, converting raw pulse counts into structured process data that feeds directly into SCADA supervisory layers, HMI visualization platforms, and upper-level MES/ERP systems. In an era where smart factory connectivity demands zero data isolation, the 621-0024R delivers the signal integrity and protocol-ready architecture that modern industrial networks require.

At its core, the 621-0024R is built to operate within the Honeywell Series 620 modular rack infrastructure, accepting high-frequency pulse inputs and translating them into digital values accessible via the system’s internal communication bus. This makes it an indispensable component for applications involving custody transfer metering, batch counting, speed monitoring, and energy measurement — all scenarios where accurate pulse capture directly impacts process efficiency and regulatory compliance.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the 621-0024R’s role requires tracing the full data path from field device to control room. In a typical smart factory deployment, pulse signals originate at turbine flow meters or magnetic pickup sensors installed on process pipelines. These raw pulses travel via shielded field wiring to the 621-0024R module seated in the Series 620 rack. The module counts, scales, and formats these signals, making them available to the Honeywell 620 Series CPU module — such as the 621-9940 or 621-9928R processor cards — which execute the control logic and manage data routing across the system bus.

From the CPU, process values are transmitted upstream to SCADA servers running platforms like Honeywell Experion PKS or third-party systems via gateway modules. The 621-6550R communication interface module, for instance, bridges the Series 620 backplane to Ethernet-based supervisory networks, enabling real-time data visibility on operator HMI stations. Simultaneously, analog output modules such as the 621-3560R translate processed values back into 4–20 mA signals for downstream actuators and control valves, completing the closed-loop automation circuit.

For remote I/O expansion, the Series 620 architecture supports distributed rack configurations where additional modules — including digital input cards like the 621-0010R and digital output modules like the 621-0020R — extend the system’s reach across large plant footprints without sacrificing data integrity. Analog input modules such as the 621-1100R complement the 621-0024R by capturing 4–20 mA and thermocouple signals from temperature and pressure transmitters, feeding a unified process dataset to the controller.

At the network layer, edge gateways aggregate data from multiple Series 620 racks and forward structured datasets to cloud-based analytics platforms or on-premise historians. This architecture supports integration with variable frequency drives (VFDs), motor control centers, and smart sensors across the plant floor, enabling condition monitoring, predictive maintenance alerts, and maintenance planning — all driven by the accurate pulse data that the 621-0024R captures at the field level. Power supply modules such as the 620-0083 and 620-0036 ensure stable, conditioned power delivery to the entire rack assembly, maintaining signal quality and system uptime in demanding industrial environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is protocol fragmentation — where field devices, PLCs, DCS platforms, and SCADA systems speak different communication languages, creating data silos that impede real-time decision-making. The Honeywell 621-0024R, operating within the Series 620 ecosystem, directly addresses this challenge by providing a standardized, reliable interface for pulse-generating field devices that would otherwise remain disconnected from the plant’s digital infrastructure.

By integrating the 621-0024R into a Series 620 rack alongside communication gateway modules, engineers can bridge the gap between legacy pulse-output instrumentation and modern Ethernet-based control networks. This eliminates the need for standalone pulse counters or proprietary signal converters, reducing wiring complexity and potential failure points. The result is a transparent production line where flow totals, batch counts, and speed data are continuously visible on HMI screens and SCADA dashboards — enabling operators to detect anomalies, trigger alarms, and initiate corrective actions without leaving the control room.

Remote diagnostics capabilities are equally important in distributed plant environments. With the 621-0024R’s data accessible through the Series 620 network, maintenance teams can monitor module health, verify signal integrity, and perform remote troubleshooting via connected engineering workstations — reducing unplanned downtime and the need for on-site intervention. System expansion is equally straightforward: additional I/O modules can be added to existing racks or new remote racks commissioned without disrupting ongoing production, supporting phased smart factory upgrades that align with capital expenditure cycles.

Every Honeywell 621-0024R supplied by ZYPLC undergoes pre-shipment functional testing to verify pulse input accuracy, backplane communication integrity, and module identification. Units are shipped with full warranty terms confirmed during quotation coverage, ensuring operational confidence from day one of installation.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell 621-0024R support for SCADA integration?
The 621-0024R communicates via the Series 620 internal backplane bus. When paired with a Series 620 communication interface module such as the 621-6550R, the system can bridge to Ethernet-based SCADA networks, supporting Modbus TCP/IP and proprietary Honeywell protocols for seamless integration with Experion PKS and third-party supervisory platforms.

Q2: How does the 621-0024R handle high-frequency pulse inputs without data loss?
The module is designed to accurately capture and count high-frequency pulse signals from turbine meters, encoders, and proximity sensors. Its hardware-based pulse counting architecture ensures no pulses are missed during high-throughput operations, maintaining data integrity for custody transfer and batch control applications where accuracy is critical.

Q3: Can the 621-0024R be integrated into an existing Series 620 system without network downtime?
Yes. The Series 620 modular rack architecture supports hot-swap and live insertion procedures (subject to system configuration). Adding or replacing a 621-0024R module in an existing rack can typically be performed during scheduled maintenance windows with minimal impact on overall system availability, supporting phased expansion without production interruption.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 621-0024R?
All Honeywell 621-0024R units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing including pulse input verification, backplane communication checks, and module self-diagnostics to ensure full operational readiness upon arrival at your facility.
