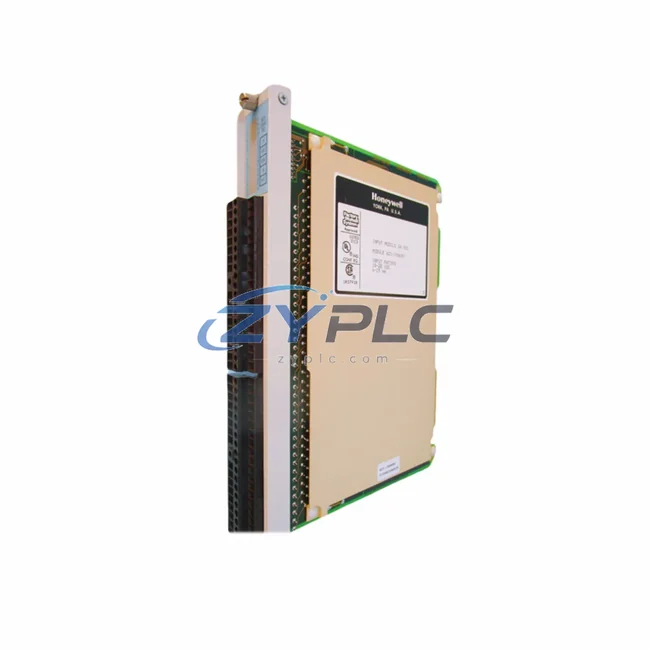

Honeywell 621-0024RC Pulse Input Module for 620 Systems

Honeywell 621-0024RC Industrial Network Interface for Series 620 Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices and supervisory systems is the backbone of operational efficiency. The Honeywell 621-0024RC Pulse Input Module is engineered to serve as a critical node in this industrial data chain — capturing high-frequency pulse signals from field instrumentation and converting them into structured, protocol-ready data streams that feed directly into Series 620 distributed control systems, SCADA platforms, and HMI visualization layers.

Designed for demanding process industries including oil & gas, chemical processing, power generation, and discrete manufacturing, the 621-0024RC delivers reliable pulse counting, frequency measurement, and totalization functions. Its tight integration with the Honeywell Series 620 control architecture ensures deterministic scan cycles, low-latency data acquisition, and robust noise immunity — all essential qualities for industrial network communication where data integrity cannot be compromised.

Compatibility & Integration Notes

Connected Automation Data Flow

The 621-0024RC sits at the signal acquisition layer of the industrial automation hierarchy. In a typical smart factory deployment, pulse signals originating from turbine flow meters, magnetic pickup sensors, or encoder-equipped conveyor drives are wired directly to the 621-0024RC’s input terminals. The module processes these raw pulse trains — filtering noise, counting edges, and computing frequency or totalized values — before passing structured data across the Series 620 backplane to the central CPU module.

Within the Series 620 rack, the CPU module — such as the Honeywell 621-0001 or 621-0002 processor — executes the control logic that acts on the pulse data, triggering alarms, adjusting setpoints, or commanding output modules like the Honeywell 621-0020 analog output module to modulate downstream actuators. This tightly coupled I/O architecture ensures scan-cycle-level determinism, which is critical for flow control and batch processing applications.

For facilities requiring integration with plant-wide SCADA systems, the Series 620 controller communicates upstream via a Honeywell 620-0086 or compatible communication interface module, which bridges the proprietary backplane protocol to Modbus RTU or RS-485 networks. From there, industrial protocol gateways — such as Moxa MGate or ProSoft MVI series communication modules — translate the data into Ethernet/IP or PROFINET frames, making the 621-0024RC’s pulse data visible to Wonderware InTouch or Honeywell Experion PKS SCADA/HMI platforms in real time.

Remote I/O expansion is also supported through the Series 620 distributed I/O architecture. Remote racks equipped with additional 621-series analog input modules (such as the 621-0010 or 621-0011) can be networked alongside the pulse input rack, allowing a single CPU to supervise multiple process zones. Edge gateway devices — including Advantech ADAM-3600 or Siemens SCALANCE series — can further aggregate data from multiple Series 620 nodes, forwarding consolidated datasets to cloud-based MES or ERP platforms for production analytics and OEE monitoring.

Variable frequency drives (VFDs) monitoring motor speed via pulse feedback also benefit from the 621-0024RC’s integration. In conveyor or pump applications, the drive’s encoder output feeds the pulse module, while the Series 620 CPU closes the speed control loop — eliminating the need for a separate standalone counter and reducing panel wiring complexity. Power quality monitoring devices and smart sensors with pulse output (such as vortex flow transmitters or Coriolis meters) connect directly to the 621-0024RC, ensuring every process variable is captured, timestamped, and available for alarm management and historical trending within the SCADA layer.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — where field devices, PLCs, and supervisory systems operate in silos, unable to share process information efficiently. The Honeywell 621-0024RC directly addresses this challenge within Series 620 installations by providing a standardized, backplane-integrated pulse acquisition channel that eliminates the need for standalone pulse counters or external signal conditioners.

Protocol fragmentation is another common barrier. Many older plant floors run a mix of proprietary DCS protocols alongside modern open standards like Modbus, PROFIBUS, or OPC-UA. By pairing the 621-0024RC with a compatible communication gateway module in the Series 620 rack, engineers can bridge this protocol gap — exposing pulse-derived process variables (flow totals, speed values, batch counts) to any SCADA or HMI system capable of reading Modbus registers, without modifying the field wiring or replacing the existing controller infrastructure.

Remote monitoring and diagnostics are equally simplified. With the 621-0024RC’s data flowing through the Series 620 CPU to an upstream Ethernet gateway, maintenance teams can access real-time pulse counts and frequency values from any networked HMI terminal or remote desktop session — enabling predictive maintenance alerts, remote fault diagnosis, and production line transparency without requiring on-site presence. This capability is especially valuable for multi-site operations where centralized SCADA visibility across geographically distributed plants is a strategic priority.

System scalability is built into the Series 620 architecture. As production capacity grows, additional 621-0024RC modules can be added to existing racks, or new remote I/O racks can be networked to the existing CPU — all without disrupting ongoing operations. This modular expansion path protects the initial automation investment while accommodating future process complexity.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell 621-0024RC support for SCADA integration?
The 621-0024RC communicates natively over the Series 620 backplane. For SCADA integration, a communication interface module (such as the Honeywell 620-0086) is used to bridge backplane data to Modbus RTU or RS-485, which can then be converted to Ethernet-based protocols (Modbus TCP, OPC-UA) via an industrial gateway for connection to Wonderware, Experion PKS, or third-party SCADA/HMI platforms.

Q2: How does the 621-0024RC ensure network stability and data integrity in noisy industrial environments?
The module incorporates hardware input filtering and noise rejection circuitry designed for industrial field environments. Its backplane communication operates within the deterministic scan cycle of the Series 620 CPU, ensuring consistent data refresh rates and eliminating the communication timeouts or packet loss that can occur with loosely coupled external counter devices.

Q3: Can the 621-0024RC be expanded or integrated into larger multi-zone control systems?
Yes. The Series 620 architecture supports multiple I/O racks — both local and remote — allowing the 621-0024RC to be deployed across multiple process zones under a single CPU or networked CPU configuration. Integration with plant-wide MES, ERP, or cloud analytics platforms is achievable through upstream gateway modules and edge computing devices without modifying the field-level wiring.

Q4: What quality assurance and warranty coverage is provided with the 621-0024RC?
Every Honeywell 621-0024RC unit supplied by ZYPLC undergoes functional testing prior to shipment, verifying pulse input response, backplane communication integrity, and module identification. A warranty terms confirmed during quotation is included, covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping and availability confirmed by RFQ availability ensure minimal lead times for urgent MRO and project requirements.
