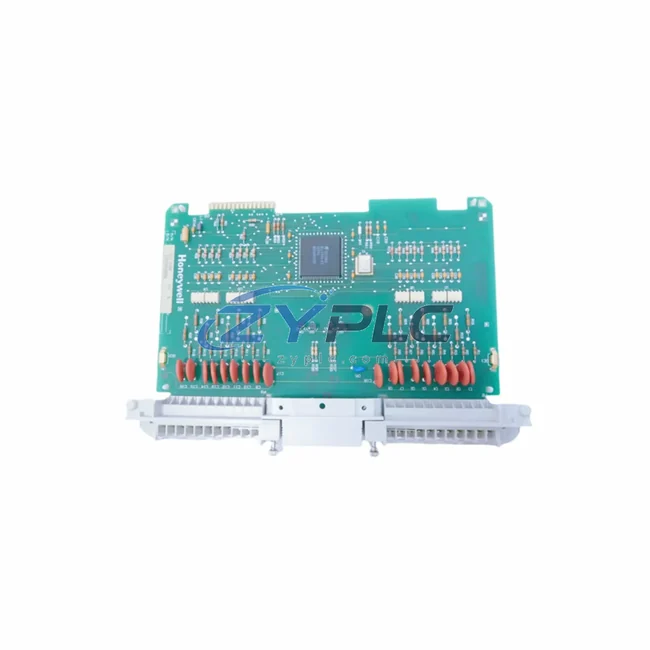

Honeywell 621-3560R Output Module for 621 Series

Honeywell 621-3560R Output Module for 621 Series

The Honeywell 621-3560R is a discrete output module purpose-built for integration within the Honeywell 621 Series programmable controller platform. Rather than functioning as a standalone component, the 621-3560R is designed to operate as a coordinated element within a layered industrial control architecture — contributing to signal integrity, system expandability, redundancy planning, and long-term maintainability across demanding process environments. Understanding its role within the full control hierarchy is essential for engineers specifying replacement parts, system expansions, or new panel builds.

Product Specification Table

System Compatibility Notes

The 621-3560R output module does not operate in isolation. Its value is realized when it is correctly positioned within a complete Honeywell 621 Series control system architecture, where each layer — from the CPU to the field device — contributes to overall system performance.

At the control layer, the 621-3560R interfaces directly with the 621 Series CPU modules such as the 621-9940C and 621-9934C, which execute the ladder logic and issue output commands through the backplane. The CPU determines the scan cycle, and the output module translates digital commands into field-level switching actions with minimal latency. For applications requiring redundant CPU configurations, the 621-3560R remains compatible with dual-CPU architectures supported by the 621 platform, ensuring that output states are maintained even during controller switchover events.

On the power supply side, the 620-0083 and 620-0036 power supply modules provide the regulated DC bus voltage required by the 621 Series rack. Stable power delivery is critical for output module reliability — voltage fluctuations at the rack level can cause spurious output transitions or module faults. Proper power budgeting across all installed I/O modules, including the 621-3560R, is a fundamental step in system commissioning.

The backplane and rack infrastructure — including the 621-1100R rack assembly — provides the physical and electrical backbone for all 621 Series modules. The 621-3560R slots directly into the rack, establishing both mechanical retention and backplane bus connectivity. For larger systems requiring expanded I/O capacity, the 621-0020R I/O expansion module enables additional rack segments to be connected, allowing the output channel count to scale without replacing the CPU or communications infrastructure.

At the communications layer, the 621-6550RC and 621-6575R communications modules provide network connectivity for the 621 Series platform, enabling integration with SCADA systems, DCS networks, and supervisory HMI platforms. The output states driven by the 621-3560R can be monitored and logged at the supervisory level through these communication gateways, supporting real-time process visibility and historical data archiving.

For human-machine interface integration, operator stations connected via the communications layer can display the status of outputs controlled by the 621-3560R, enabling operators to verify field device states without direct panel access. This is particularly valuable in remote or hazardous installations where physical inspection is impractical.

The 620-0080 power distribution module and associated terminal wiring infrastructure complete the field-side connection, ensuring that output signals from the 621-3560R reach actuators, solenoids, motor starters, and other field devices with appropriate electrical isolation and surge protection. Proper terminal block selection and cable routing are essential for maintaining signal integrity and meeting industrial wiring standards.

Together, these components — the 621-9940C CPU, 621-9934C processor, 620-0083 and 620-0036 power supplies, 621-1100R rack, 621-0020R expansion, 621-6550RC and 621-6575R communications modules, and 620-0080 power distribution — form the complete system context in which the 621-3560R output module delivers its designed function. Specifying the 621-3560R as part of a coordinated bill of materials ensures architectural consistency and simplifies long-term spare parts management.

Industrial Application Notes

The Honeywell 621-3560R output module is deployed across a wide range of industrial sectors where the 621 Series platform has established a long operational history.

In power generation and electrical utilities, the 621-3560R controls switching outputs for breaker control, transformer tap changers, and auxiliary equipment sequencing. The reliability of discrete output modules in these environments is non-negotiable, as spurious outputs can trigger protective relay actions or equipment damage.

In petrochemical and refinery applications, the module drives solenoid valves, motor starters, and shutdown actuators within safety-instrumented and process control loops. The 621 Series architecture supports the deterministic scan cycles required for process interlocking, and the 621-3560R contributes to this determinism at the field output level.

In water and wastewater treatment facilities, the 621-3560R controls pump start/stop sequences, valve actuators, and chemical dosing systems. The module’s compatibility with the broader 621 Series I/O infrastructure allows treatment plant operators to maintain a standardized spare parts inventory, reducing the risk of extended downtime due to unavailable components.

In mining and mineral processing, the module is used in conveyor control, crusher sequencing, and ventilation system management. The industrial temperature range and rack-mount form factor make the 621-3560R suitable for the harsh electrical environments typical of mining control rooms.

In manufacturing and discrete production lines, the 621-3560R drives actuators, indicators, and machine interlocks within assembly and packaging systems. Its integration with the 621 Series CPU enables tight coordination between input conditions and output responses, supporting high-speed production sequencing.

Across all these applications, the 621-3560R benefits from the warranty terms confirmed during quotation coverage provided with every unit supplied through ZYPLC, ensuring that engineering teams can specify the module with confidence in both performance and post-delivery support.

Product Compatibility FAQ

Q1: Is the Honeywell 621-3560R compatible with all 621 Series rack configurations, and can it be mixed with other I/O module types in the same rack?
The 621-3560R is designed for use within the Honeywell 621 Series rack infrastructure, including the 621-1100R and compatible rack assemblies. It can be installed alongside other 621 Series I/O modules — including analog input, analog output, and discrete input modules — within the same rack, provided that the total power budget of the installed modules does not exceed the capacity of the rack’s power supply module (such as the 620-0083 or 620-0036). During system commissioning, engineers should verify slot assignments in the CPU configuration to ensure that the output module’s rack position matches the I/O map defined in the control program.

Q2: How does the 621-3560R support long-term maintenance and spare parts planning in aging 621 Series installations?
For facilities operating legacy Honeywell 621 Series systems, maintaining a stock of critical I/O modules such as the 621-3560R is a standard practice for minimizing unplanned downtime. The module’s direct form-fit-function compatibility with the 621 Series backplane means that replacement requires no firmware reconfiguration or CPU reprogramming — the new module assumes the same I/O map position as the removed unit. ZYPLC supplies the 621-3560R with a warranty terms confirmed during quotation and provides system integration support, helping engineering teams verify compatibility with their specific system revision before shipment.

Q3: What commissioning steps are required when installing a replacement 621-3560R in an operational 621 Series system?
When replacing a 621-3560R in a live system, the recommended procedure is to place the CPU in stop or program mode before removing the existing module to prevent unintended output activation during the swap. After installing the replacement module in the correct rack slot, verify that all field wiring connections are secure and that the module’s output indicators respond correctly during a controlled test sequence. Resume CPU operation and confirm that the output states match the expected logic conditions defined in the control program. The warranty terms confirmed during quotation covers the replacement unit against functional failure from the date of delivery, providing assurance during the post-installation verification period.
