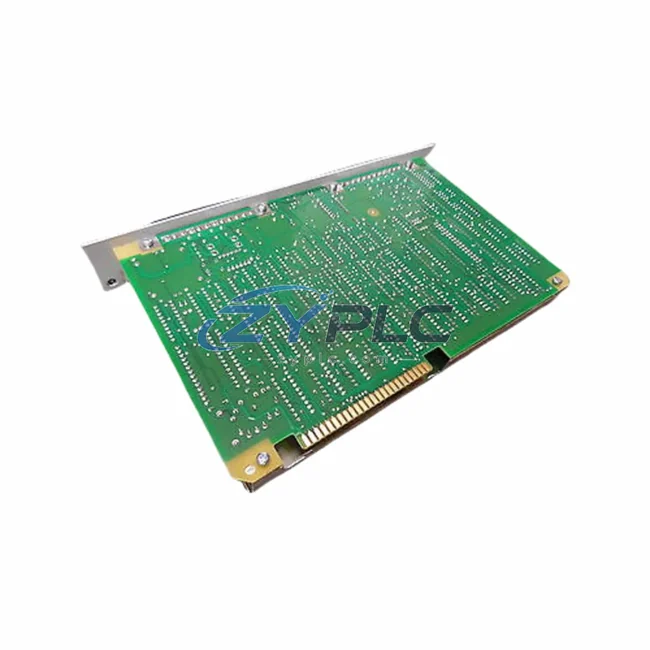

Honeywell 621-9938RC Serial I/O Module for TDC 3000 Systems

Honeywell 621-9938RC Industrial Network Interface for TDC 3000 Systems: Bridging Field Devices and Smart Factory Data Flows

In modern industrial environments, seamless data connectivity between field-level devices and supervisory control systems is no longer optional — it is the backbone of operational efficiency. The Honeywell 621-9938RC Serial I/O Module is engineered precisely for this mission: delivering reliable, high-integrity serial communication between TDC 3000 distributed control system (DCS) nodes and the broader industrial network infrastructure. Whether your facility runs continuous process control, batch manufacturing, or hybrid automation, the 621-9938RC provides the communication foundation that keeps data moving accurately and without interruption.

As a purpose-built serial I/O communication module within the Honeywell TDC 3000 platform, the 621-9938RC handles the critical task of translating field-level signals into structured data streams that upstream SCADA platforms, HMI terminals, and historian servers can consume in real time. Its role in the data chain spans from signal acquisition at the sensor and transmitter level all the way through protocol conversion, network transmission, alarm feedback, and remote diagnostic access — making it an indispensable component in any TDC 3000-based control architecture.

Compatibility & Integration Notes

Connected Automation Data Flow

The Honeywell 621-9938RC sits at the intersection of field instrumentation and plant-wide control networks, enabling a continuous, low-latency data pipeline across every layer of the automation hierarchy. In a typical TDC 3000 installation, the 621-9938RC works in concert with a range of complementary modules and subsystems to form a complete industrial communication fabric.

At the field level, process transmitters, flow meters, and smart sensors feed raw measurement data into the serial I/O layer managed by the 621-9938RC. This data is then structured and forwarded across the TDC 3000 Local Control Network (LCN), where it interfaces with process controllers such as the Honeywell 621-6550RC Advanced Process Manager and the Honeywell 621-3580RC Logic Manager. These controllers execute real-time control algorithms and pass setpoints and status data back through the network, completing the closed-loop control cycle.

For remote I/O expansion, the 621-9938RC integrates with Honeywell’s 51304453-150 I/O Link Interface Module, extending the reach of the DCS to field junction boxes and marshalling cabinets located far from the main control room. Alongside this, the 51309218-175 Communication Interface Module provides additional serial gateway capability, ensuring that legacy field devices using older serial protocols remain fully accessible within the modern TDC 3000 network architecture.

At the supervisory layer, data aggregated by the 621-9938RC flows upward to HMI workstations running Honeywell’s plant operations software, as well as to SCADA historian platforms that archive process trends for compliance and optimization analysis. The Honeywell CC-PAIH01 Analog Input module and TC-FPCXX2 Field Termination Panel complement the 621-9938RC in mixed-signal environments, handling analog process variables while the 621-9938RC manages serial communication channels. For facilities integrating edge computing or IIoT gateways, the 621-9938RC’s serial output can be bridged to modern edge devices, enabling cloud-based analytics without disrupting the existing DCS infrastructure.

Drive systems and variable frequency drives (VFDs) connected via serial interfaces also benefit from the 621-9938RC’s communication capabilities. Speed references, fault codes, and energy consumption data from drives can be routed through the module into the TDC 3000 network, giving operators full visibility over motor-driven assets from a single SCADA console. The Honeywell 900H01-0102 HC900 Hybrid Controller and 51401583-100 Power Supply Module round out the system architecture, providing process control and stable power distribution across the DCS cabinet, while the 51304337-150 Multifunction Processor Card handles high-speed computation tasks that depend on the reliable data streams delivered by the 621-9938RC.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — the condition where field devices, controllers, and supervisory systems operate in silos, unable to share process information efficiently. The Honeywell 621-9938RC directly addresses this problem by serving as a protocol-aware communication bridge within the TDC 3000 ecosystem.

In plants where multiple generations of control equipment coexist, serial devices using RS-232, RS-422, or RS-485 protocols often cannot communicate natively with modern Ethernet-based SCADA platforms. The 621-9938RC resolves this incompatibility by translating serial data streams into formats compatible with the TDC 3000 LCN, from which data can be further forwarded to OPC servers, historian databases, and cloud analytics platforms. This eliminates the need for costly rip-and-replace upgrades, allowing facilities to extend the operational life of proven field instruments while gaining the data transparency of a modern smart factory.

Remote monitoring and diagnostics are equally enhanced by the 621-9938RC. Maintenance engineers can access real-time module status, communication error logs, and channel diagnostics from the central control room or via remote desktop connections to the SCADA server — without requiring physical access to the field cabinet. This capability dramatically reduces mean time to repair (MTTR) and supports predictive maintenance strategies by surfacing early warning indicators before equipment failures occur.

Production line transparency is another key benefit. With the 621-9938RC ensuring continuous data flow from every connected field device, plant managers gain a complete, real-time view of process variables, equipment states, and alarm conditions across the entire facility. This visibility supports lean manufacturing initiatives, OEE (Overall Equipment Effectiveness) tracking, and regulatory compliance reporting — all driven by the reliable serial communication infrastructure that the 621-9938RC provides.

System scalability is built into the TDC 3000 architecture that the 621-9938RC supports. As production capacity grows or new process units are added, additional serial I/O modules can be integrated into the existing DCS network without architectural redesign, protecting the facility’s automation investment over the long term.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell 621-9938RC support, and is it compatible with modern SCADA systems?
The 621-9938RC is designed for serial communication within the Honeywell TDC 3000 DCS architecture, supporting RS-232/RS-422/RS-485 serial interfaces at the field level. It integrates natively with the TDC 3000 Local Control Network (LCN) and Data Hiway, and data can be forwarded to modern SCADA and historian platforms via OPC server interfaces connected to the TDC 3000 network. This makes it fully compatible with contemporary supervisory systems without requiring protocol replacement at the field level.

Q2: How does the 621-9938RC handle network stability and communication latency in high-demand process environments?
The 621-9938RC is engineered for deterministic serial communication, ensuring consistent, low-latency data transfer even under high I/O load conditions typical of continuous process plants. Its hardware design prioritizes signal integrity and error detection, minimizing retransmission events that could introduce latency into the control loop. For critical process applications, the module’s stable communication performance supports tight control loop timing requirements.

Q3: Has the Honeywell 621-9938RC been tested before shipment, and what warranty coverage is provided?
Yes. Every Honeywell 621-9938RC unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, channel operation, and hardware condition. All units are covered by a warranty terms confirmed during quotation from the date of shipment, providing assurance of product quality and operational reliability. Our technical team is available to support installation, configuration, and troubleshooting throughout the warranty period.

Q4: Can the 621-9938RC be used to expand an existing TDC 3000 system, and what are the integration requirements?
The 621-9938RC is fully compatible with existing TDC 3000 DCS installations and can be added to expand serial I/O capacity without disrupting ongoing operations. Integration requires a compatible TDC 3000 backplane slot and appropriate LCN network addressing configuration. ZYPLC’s engineering support team can assist with compatibility verification, slot assignment planning, and network configuration guidance to ensure a smooth integration into your existing control system architecture.
