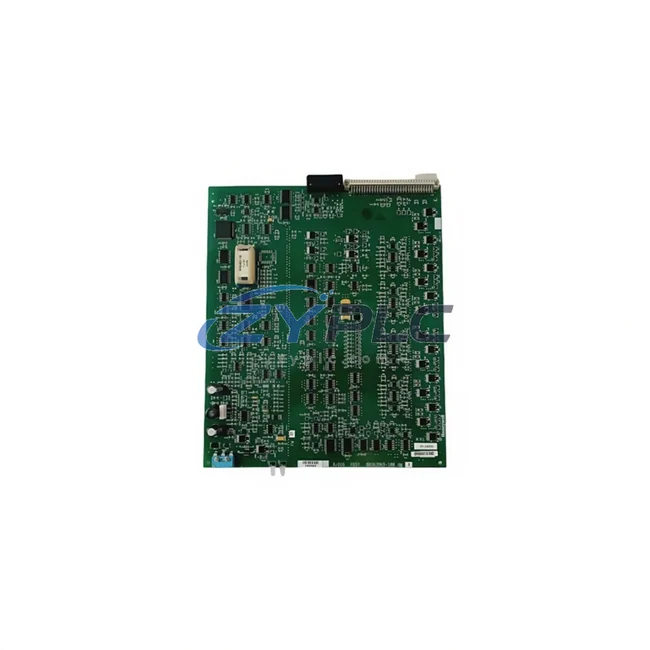

Honeywell 80363969-100 Analog Output Module

Honeywell 80363969-100 Analog Output Module for TDC PlantScape Automation

The Honeywell 80363969-100 is a high-performance analog output module engineered for the TDC/PlantScape Distributed Control System (DCS) platform. Designed to deliver precise 4–20 mA analog signal outputs to field devices, this module plays a critical role in reducing unplanned downtime risk across industrial production lines. By providing stable, accurate control signals to variable frequency drives, control valves, and actuators, the 80363969-100 ensures that each downstream device operates at its optimal setpoint — eliminating the unplanned downtime caused by signal drift, over-actuation, or imprecise loop control.

In modern manufacturing environments where energy costs represent a significant share of operational expenditure, the quality of analog output signals directly impacts motor efficiency, pump performance, and compressor loading. The Honeywell 80363969-100 addresses this challenge by maintaining tight output accuracy across its full operating range, enabling plant engineers to implement maintenance-focused control strategies without compromising process stability.

Product Specification Table

System Compatibility and Application

The Honeywell 80363969-100 analog output module operates as a precision signal source within a broader industrial automation system. In a typical TDC/PlantScape installation, the module resides in the High-Performance Process Manager (HPPM) or the Advanced Process Manager (APM) cabinet, where it interfaces with the Honeywell Universal Control Network (UCN) to receive setpoint commands from the operator station.

These setpoint commands are then converted into accurate 4–20 mA signals that drive field instruments such as control valves, variable frequency drives (VFDs), and electro-pneumatic positioners. When paired with a Honeywell HC900 Hybrid Controller or a PlantScape Server running advanced process control (APC) algorithms, the 80363969-100 enables model predictive control (MPC) strategies that dynamically adjust motor speeds and valve positions based on real-time energy demand — significantly reducing peak power consumption during production surges.

For condition monitoring integration, the module works in conjunction with Honeywell’s Experion PKS C300 Controller and power metering I/O cards such as the Honeywell 51304485-100 series analog input modules, which feed real-time kWh and kVAR data back into the control loop. This closed-loop energy feedback architecture allows the DCS to automatically throttle drive outputs when operating load exceeds predefined thresholds — a capability that is particularly valuable in compressor control, pump station management, and HVAC optimization within large industrial facilities.

The 80363969-100 also integrates seamlessly with Honeywell’s Safety Manager and FSC (Fail-Safe Controller) platforms via hardwired analog interfaces, ensuring that maintenance planning strategies do not compromise functional safety requirements. In multi-loop control configurations, the module can be combined with Honeywell 51309276-175 digital output modules and 51304516-150 analog input modules to build complete energy measurement and control subsystems within a single DCS cabinet.

Communication-wise, the TDC/PlantScape platform supporting the 80363969-100 uses the Honeywell Data Hiway and Local Control Network (LCN) protocols, which provide deterministic, low-latency data exchange between the analog output module and the operator workstation. This ensures that energy setpoint adjustments made by the operator or by an APC algorithm are reflected in field device behavior within milliseconds — a critical requirement for tight energy control in fast-responding processes such as extruder drives and centrifugal compressors.

Maintenance and Replacement Notes

In real-world production environments, the Honeywell 80363969-100 delivers measurable operational stability by eliminating the root causes of unplanned downtime in analog control loops. One of the most common sources of energy inefficiency in process plants is control valve hunting — a condition where a poorly calibrated or drifting analog output signal causes a valve to oscillate around its setpoint, resulting in excessive actuator wear and unplanned downtime risk by the associated pump or compressor.

By providing a stable, drift-free 4–20 mA output signal, the 80363969-100 eliminates valve hunting and allows the driven equipment to operate at its most efficient point on the pump or compressor curve. In a typical chemical plant with 50–100 analog output loops, replacing aging or degraded analog output modules with the 80363969-100 can reduce pump and compressor operating load by 3–8%, depending on the process conditions and the severity of the existing signal quality issues.

Beyond operational stability, the 80363969-100 contributes to production line rhythm optimization by ensuring that process transitions — such as grade changes, batch starts, and product changeovers — are executed with precise, repeatable analog ramp profiles. This reduces the time required to stabilize the process after a transition, increasing overall equipment effectiveness (OEE) and reducing the energy consumed during unstable transient periods.

From a predictive maintenance perspective, the module’s stable output performance provides a reliable baseline for condition monitoring algorithms. When the DCS detects that a control loop requires an unusually large output signal to maintain its setpoint — a condition known as output saturation — this can indicate a developing fault in the field device, such as a partially blocked control valve or a degrading actuator. Early detection of these conditions through output trend analysis allows maintenance teams to schedule corrective action before a failure occurs, avoiding unplanned downtime and the associated energy and production losses.

All units of the Honeywell 80363969-100 supplied by ZYPLC are sourced from verified industrial surplus and refurbishment channels, subjected to full functional testing on TDC-compatible test benches, and covered by a warranty terms confirmed during quotation. Each module is tested for output accuracy, channel isolation, and backplane communication integrity before shipment, ensuring that customers receive a module that performs to the original Honeywell factory specification.

Product Sourcing FAQ

Q1: How does the Honeywell 80363969-100 contribute to operational stability in a DCS-controlled plant?
The 80363969-100 delivers precise 4–20 mA output signals that minimize control valve hunting and over-actuation. By keeping field devices operating at their optimal setpoints, the module reduces unplanned downtime risk by pumps, compressors, and motor-driven equipment connected to the control loop. In multi-loop installations, the cumulative operational stability can be significant, particularly in continuous process industries such as refining and chemical manufacturing.

Q2: Is the 80363969-100 compatible with modern Honeywell Experion PKS systems?
The 80363969-100 is a native TDC/PlantScape module and is fully compatible with Honeywell TDC 3000 and PlantScape DCS platforms. For Experion PKS installations, compatibility depends on whether the system is configured with legacy TDC I/O integration via the Application Module (AM) or Series C I/O interface. ZYPLC recommends consulting your Honeywell system architecture documentation or contacting our technical team to confirm compatibility with your specific Experion PKS configuration.

Q3: What is the recommended replacement or upgrade path for aging 80363969-100 modules?
For plants seeking to maintain TDC/PlantScape platform continuity, direct replacement with a tested 80363969-100 unit is the most cost-effective approach. For plants planning a migration to Experion PKS, Honeywell’s Series C Analog Output Module (part of the IOTA family) provides a functionally equivalent replacement with enhanced diagnostics and HART communication support. ZYPLC can supply both options and provide technical guidance on the migration process.

Q4: What testing and quality assurance processes does ZYPLC apply to the 80363969-100 before shipment?
Every Honeywell 80363969-100 unit supplied by ZYPLC undergoes a comprehensive pre-shipment testing protocol that includes output accuracy verification across all channels, channel-to-channel isolation testing, backplane communication integrity checks, and thermal cycling to verify stable operation across the full industrial temperature range. Units that pass all tests are issued a test certificate and covered by a warranty terms confirmed during quotation from the date of shipment. Units that do not meet the original Honeywell factory specification are rejected and not offered for sale.
