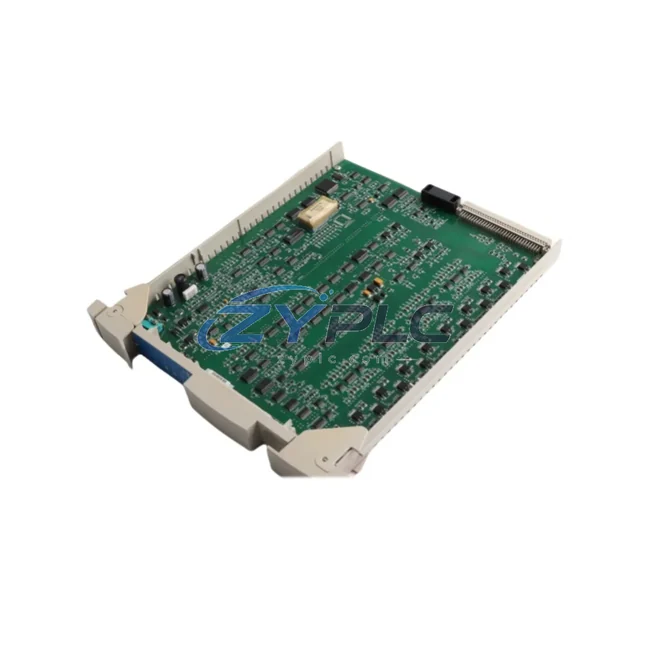

Honeywell 80363969-150MC-PAOY22 Analog Output for HC900

Honeywell 80363969-150MC-PAOY22 Analog Output for HC900

In modern industrial automation, the reliability and scalability of a distributed control system depend not on any single component, but on the seamless coordination of every layer within the control architecture. The Honeywell 80363969-150MC-PAOY22 Analog Output Module is engineered to serve as a precision signal-conditioning and output-driving element within the HC900 Hybrid Controller platform — a system architecture widely deployed across process industries including petrochemical refining, power generation, water treatment, pharmaceutical manufacturing, and continuous packaging lines.

This module occupies a critical position in the I/O layer of the HC900 architecture, translating digital control commands from the HC900 Controller CPU into calibrated 4–20 mA or 0–10 V analog signals that drive field actuators, control valves, variable-frequency drives, and positioners. Its role is not isolated — it functions as a downstream executor of the control strategy defined at the CPU level, and its output fidelity directly determines the accuracy of closed-loop regulatory control across the entire process.

Product Specification Table

System Compatibility Notes

The 80363969-150MC-PAOY22 does not operate in isolation. Its value is fully realized when integrated within a complete HC900 system architecture, where each layer contributes to overall control performance, redundancy, and maintainability.

At the control layer, the HC900 Controller CPU (C30, C50, or C70 series) executes the regulatory and logic control strategies, generating setpoint commands that are transmitted across the rack backplane to the analog output module. The CPU’s scan cycle directly governs the update rate of the analog output signals, making CPU selection a critical upstream decision when specifying this module for fast-response loops.

Power integrity is maintained by the HC900 Power Supply Module (900P01-0101 or 900P02-0101), which provides regulated 24 VDC to the rack backplane. In high-availability applications, dual redundant power supplies are recommended to eliminate single-point power failures that could interrupt analog output continuity.

The I/O layer surrounding the 80363969-150MC-PAOY22 typically includes complementary modules such as the HC900 Analog Input Module (PAIY44 or PAIY88) for process variable feedback, the HC900 Digital Input Module (PDIY88) for discrete status signals, and the HC900 Digital Output Module (PDOY88) for relay-driven actuator commands. Together, these modules form a complete signal acquisition and command execution layer that supports both regulatory and sequential control strategies.

Network connectivity is handled by the HC900 Ethernet Communication Module, which bridges the HC900 rack to supervisory SCADA systems, DCS integration layers, or plant-wide Modbus TCP / OPC-DA networks. This enables the analog output module’s performance data — including output status, fault flags, and loop diagnostics — to be monitored and logged at the supervisory level without interrupting real-time control execution.

For human-machine interface integration, the HC900 platform supports connectivity to Honeywell Experion PKS or third-party HMI terminals via Ethernet, allowing operators to visualize analog output values, adjust setpoints, and acknowledge loop alarms from centralized control rooms. The 80363969-150MC-PAOY22’s output channels can be mapped directly to HMI faceplate displays for real-time loop monitoring.

In redundant architecture designs, the HC900 supports controller redundancy modules that allow seamless CPU failover without disrupting analog output continuity — a critical requirement in continuous process industries where output interruption can trigger process upsets or safety shutdowns.

Industrial Application Notes

The 80363969-150MC-PAOY22 is well-suited for a broad range of industrial applications where precise analog output control is essential to process stability and product quality.

In petrochemical and refining plants, this module drives control valve positioners in distillation column pressure and temperature loops, where output accuracy and signal stability directly affect separation efficiency and product yield. Its 12-bit resolution ensures fine-grained valve positioning across the full 4–20 mA range.

In power generation facilities, the module is used to control turbine governor actuators, boiler feedwater control valves, and combustion air dampers. The HC900 platform’s deterministic scan cycle, combined with the PAOY22’s low-latency output response, supports the tight control margins required in power plant regulatory loops.

In water and wastewater treatment systems, the module drives variable-frequency drives (VFDs) on pump motors, controlling flow rates in filtration, aeration, and chemical dosing processes. Its channel isolation prevents ground loop interference in wet environments where signal integrity is frequently challenged.

In pharmaceutical and food-grade manufacturing, the module supports CIP (Clean-in-Place) valve sequencing and temperature control loops in jacketed reactors, where output repeatability and audit-trail compliance are mandatory for regulatory validation.

In mining and metallurgical operations, the 80363969-150MC-PAOY22 controls conveyor speed drives, crusher feed rate actuators, and flotation cell reagent dosing pumps — applications that demand robust module performance under high-vibration, high-dust operating conditions.

Product Compatibility FAQ

Q1: Is the 80363969-150MC-PAOY22 compatible with all HC900 rack configurations?
A: Yes. The PAOY22 module is designed for installation in any HC900 I/O rack slot and communicates via the standard HC900 backplane bus. It is compatible with HC900 C30, C50, and C70 controller platforms. Ensure the rack firmware and controller firmware are at compatible revision levels — consult the HC900 I/O Module Installation and User Guide (Document 51-52-25-107) for slot assignment and firmware compatibility matrices.

Q2: Can this module be hot-swapped during live system operation?
A: The HC900 platform supports I/O module replacement under power in non-redundant configurations, but analog output continuity will be interrupted during the swap interval. For applications requiring uninterrupted output, implement controller redundancy and coordinate module replacement during scheduled maintenance windows. All replacement modules supplied by ZYPLC are pre-tested and include a warranty terms confirmed during quotation covering manufacturing defects and functional performance.

Q3: What commissioning steps are required after installing the 80363969-150MC-PAOY22 in an existing HC900 system?
A: After physical installation, use Honeywell’s HC Designer configuration software to assign the module to its rack slot, configure output channel types (current or voltage), set engineering unit ranges, and define fault-state output behavior. Perform a loop calibration check against a calibrated milliamp source to verify output accuracy. Document all configuration parameters in the project database for long-term maintenance reference. ZYPLC provides pre-shipment functional test reports upon request to accelerate site commissioning.
