Honeywell 8C-PAIH52 DCS Analog Input Module

Honeywell 8C-PAIH52 DCS Analog Input Module for TDC 3000 Automation

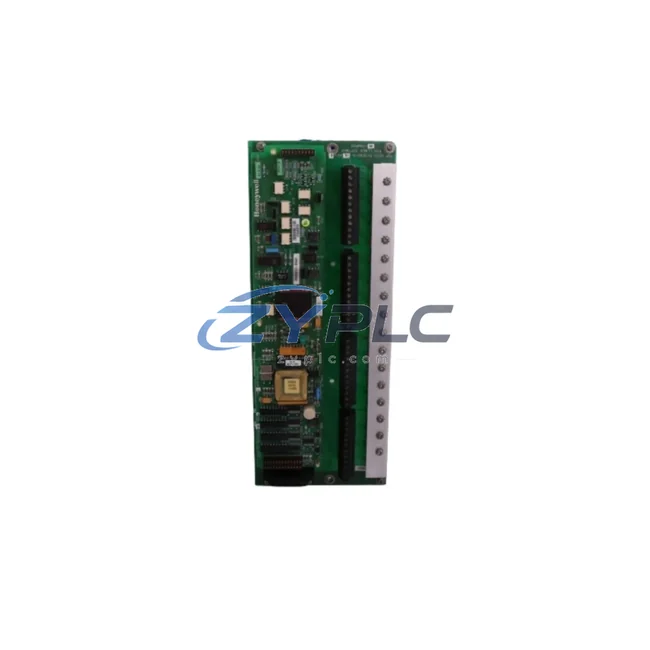

The Honeywell 8C-PAIH52 (Part No. 51307070-175) is a high-precision analog input module engineered for the Honeywell TDC 3000 Distributed Control System. Designed to meet the demanding requirements of continuous process industries — including petrochemical, power generation, pulp and paper, and refining — this module serves as a critical node in the energy data acquisition chain. By delivering accurate, low-latency analog signal conversion across up to 8 channels, the 8C-PAIH52 enables control engineers to make real-time decisions that directly reduce unplanned downtime, improve equipment utilization, and optimize production line throughput.

In modern industrial facilities, energy inefficiency often originates not from mechanical failure but from poor signal fidelity and delayed feedback loops. The 8C-PAIH52 addresses this at the source: its high-resolution analog-to-digital conversion ensures that field transmitters — whether measuring temperature, pressure, flow, or level — deliver clean, accurate data to the TDC 3000 controller. This precision is the foundation of effective maintenance planning, enabling tighter PID loop tuning, faster disturbance rejection, and reduced overconsumption caused by control instability.

Product Specification Table

System Compatibility and Application

The 8C-PAIH52 does not operate in isolation — its value is realized within a tightly integrated automation architecture. In a typical TDC 3000 installation, field instruments such as pressure transmitters and flow meters feed 4–20 mA signals into the 8C-PAIH52, which converts them for processing by the Honeywell HPM (High-Performance Process Manager). The HPM executes control algorithms that govern downstream actuators, drives, and valves. When analog input data is accurate and timely, the HPM can maintain setpoints with minimal deviation, directly reducing the energy penalty of over-control.

On the drive side, variable frequency drives (VFDs) such as those in the Honeywell SmartVFD HVAC series respond to control outputs derived from the analog input data processed by the 8C-PAIH52. Accurate flow and pressure readings allow the VFD to modulate motor speed precisely, avoiding the unplanned downtime of fixed-speed operation. In pump and fan applications, even a 10% reduction in motor speed can yield up to 27% operational stability — a gain that is only achievable when the upstream analog input chain is reliable.

For power monitoring, the 8C-PAIH52 integrates naturally with energy metering transmitters connected to the TDC 3000 I/O bus. Alongside modules such as the Honeywell 8C-TAIX51 Thermocouple Input Module and the 8C-PAOX52 Analog Output Module, it forms a complete signal chain from field measurement to control output. The Honeywell UCN (Universal Control Network) backbone ensures that data from all I/O modules — including the 8C-PAIH52 — is available system-wide with deterministic latency, supporting coordinated maintenance planning across multiple process units.

At the supervisory level, the Honeywell GUS (Global User Station) or compatible HMI workstations display real-time process trends derived from 8C-PAIH52 channel data. Operators can monitor energy-intensive loops — such as furnace temperature control or compressor suction pressure — and intervene before inefficiencies escalate. Integration with the Honeywell PHD (Process Historian Database) allows historical energy consumption data to be trended, benchmarked, and used for predictive maintenance scheduling, reducing unplanned downtime that disrupts production line rhythm and inflates energy costs per unit of output.

Communication between the TDC 3000 subsystems relies on the Honeywell LCN (Local Control Network), a deterministic token-passing network that ensures control data from the 8C-PAIH52 reaches the process manager without collision or delay. This architecture supports the kind of tight, responsive control that is essential for energy-efficient operation in high-throughput production environments.

Maintenance and Replacement Notes

In a refinery crude distillation unit, dozens of temperature and pressure loops must be maintained simultaneously to optimize separation efficiency and minimize reboiler energy consumption. Each loop depends on accurate analog input data. When an aging or faulty analog input module introduces signal noise or drift, controllers respond with excessive corrective action — opening valves wider, running pumps harder, and consuming more steam than the process actually requires. Replacing a degraded module with a properly functioning Honeywell 8C-PAIH52 restores signal integrity, allowing PID controllers to operate within their designed tuning parameters and reducing energy overconsumption at the loop level.

In power generation facilities, the TDC 3000 system manages boiler combustion control, turbine governor feedback, and auxiliary system monitoring. The 8C-PAIH52 handles analog inputs from oxygen analyzers, fuel flow transmitters, and steam pressure sensors — all critical to combustion efficiency. Accurate readings from these channels enable the combustion controller to maintain optimal air-to-fuel ratios, directly reducing fuel consumption and stack emissions. A single percentage point improvement in boiler efficiency in a large plant can represent significant annual fuel cost savings.

From a maintenance perspective, the 8C-PAIH52’s modular design supports hot-swap replacement within the TDC 3000 I/O chassis, minimizing production interruption during maintenance windows. Predictive maintenance programs that monitor channel-level diagnostics — available through the TDC 3000 system — can identify degrading input channels before they cause control upsets, allowing planned replacement rather than emergency intervention. This approach reduces both maintenance costs and the energy penalty of unplanned shutdowns and restarts, which are among the most energy-intensive events in continuous process operations.

All units supplied by ZYPLC are sourced from verified supply channels, subjected to full functional testing on TDC 3000-compatible test benches, and shipped with a warranty terms confirmed during quotation. Inventory is maintained to support rapid deployment, with typical lead times of 1–3 business days for availability confirmed by RFQ items.

Product Sourcing FAQ

Q1: How does the 8C-PAIH52 contribute to plant operational stability?
By providing accurate, high-resolution analog input data to the TDC 3000 controller, the 8C-PAIH52 enables tighter PID loop control. This reduces control-induced unplanned downtime — such as over-pumping, over-heating, or excessive valve cycling — that occurs when controllers receive noisy or drifting input signals. Accurate inputs mean the control system only uses as much energy as the process actually requires.

Q2: Is the 8C-PAIH52 compatible with my existing TDC 3000 system?
Yes. The 8C-PAIH52 (51307070-175) is a standard high-level analog input module for the Honeywell TDC 3000 platform and is compatible with HPM and other TDC 3000 process managers. It installs directly into existing I/O chassis without system reconfiguration. If you are unsure about compatibility with your specific system revision, contact our technical team with your system configuration details.

Q3: Can this module replace a faulty unit without shutting down the process?
The TDC 3000 I/O architecture supports module replacement with minimal disruption. In many configurations, channels can be taken offline individually while the remainder of the system continues to operate. Full hot-swap capability depends on your specific chassis and system configuration. ZYPLC recommends consulting your TDC 3000 system documentation or contacting our support team before performing live replacements on critical loops.

Q4: What does the warranty terms confirmed during quotation cover, and how is the module tested before shipment?
Every 8C-PAIH52 supplied by ZYPLC undergoes full functional testing, including channel-by-channel analog input verification, prior to shipment. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Warranty claims are supported by our technical team, and replacement units are dispatched promptly to minimize any impact on your production operations.
