Honeywell 8C-TAIDB1 DCS I/O for Experion

Honeywell 8C-TAIDB1 DCS I/O Module for Experion Automation

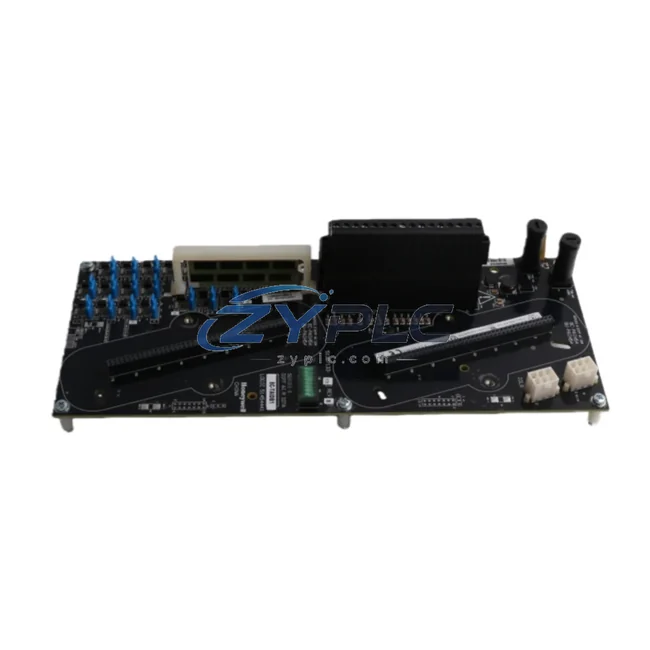

In modern process manufacturing — from petrochemical refining to pharmaceutical batch production — the ability to accurately capture field-level analog signals and relay them to the control layer without latency or data loss is the foundation of energy-efficient operations. The Honeywell 8C-TAIDB1 (cross-reference: 8C-TAID61) is a high-density analog input module engineered for the Honeywell TDC 3000 and Experion PKS distributed control systems. It enables plant engineers to monitor real-time process variables — temperature, pressure, flow, and level — with the precision required to eliminate unplanned downtime at the source.

Unlike generic I/O modules that simply pass signals, the 8C-TAIDB1 is designed to integrate seamlessly into Honeywell’s closed-loop control architecture. When paired with the Honeywell HC900 Hybrid Controller or the Experion C300 Controller, it forms a tightly coupled measurement-and-control loop that continuously adjusts process setpoints based on live analog data. This dynamic feedback mechanism is what separates reactive maintenance planning from true predictive optimization.

Product Specification Table

System Compatibility and Application

The 8C-TAIDB1 does not operate in isolation — its maintenance planning value is fully realized when it functions as part of a coordinated automation architecture. In a typical Experion PKS installation, analog field signals from pressure transmitters, flow meters, and temperature sensors are wired into the 8C-TAIDB1 module, which then communicates process data upstream to the Experion C300 Process Controller via the Honeywell FTE (Fault Tolerant Ethernet) backbone. This architecture ensures zero data loss even during network faults, preventing the kind of blind-running equipment operation that drives unplanned downtime risk.

On the drive side, the analog data captured by the 8C-TAIDB1 feeds directly into variable frequency drive (VFD) control loops. When integrated with Honeywell’s SmartLine transmitters and the Experion Orion Console, operators gain a unified view of motor load versus process demand — enabling them to reduce pump and fan speeds during low-demand periods rather than running at fixed full-load. This single operational change, enabled by accurate analog input data, can help restore stable operation when a compatible replacement is required.

For plants running legacy TDC 3000 LCN (Local Control Network) infrastructure, the 8C-TAID61 variant provides backward-compatible analog input capability without requiring a full DCS migration. This allows facilities to extend the productive life of their existing Honeywell AM (Application Module) and HM (History Module) assets while still benefiting from modern condition monitoring practices. The Honeywell UCN (Universal Control Network) interface ensures that analog data from the 8C-TAIDB1 reaches the Honeywell HPM (High-Performance Process Manager) with deterministic timing — critical for tight PID loop control in energy-intensive processes.

In multi-loop control scenarios, the 8C-TAIDB1 works alongside Honeywell 8C-TAOX15 analog output modules to form complete measurement-and-actuation pairs. The analog output module drives control valves and actuators based on the setpoint calculations performed by the C300 controller using the input data from the 8C-TAIDB1. This closed-loop pairing is the core of energy-efficient process control: measure accurately, compute precisely, actuate proportionally — and waste nothing.

Maintenance and Replacement Notes

Consider a continuous chemical processing plant running three parallel reactor trains, each with 12 temperature control loops and 8 flow control loops. Without accurate analog input data, the DCS defaults to conservative fixed setpoints — running heaters, pumps, and agitators at maximum rated capacity to ensure process stability. With the 8C-TAIDB1 providing 16-channel, high-resolution analog input per module, the Experion PKS system can implement true cascade control: the outer loop monitors reactor temperature via RTD inputs, while the inner loop adjusts steam valve position via the paired analog output module. The result is a heating system that delivers exactly the energy the process requires — no more, no less.

In power generation applications, the 8C-TAIDB1 is commonly deployed to monitor turbine inlet temperature, exhaust gas temperature, and fuel flow rate simultaneously. These three variables, when fed into the Experion C300’s combustion optimization algorithm, allow the plant to maintain peak thermal efficiency across varying load conditions. Plants that have implemented this architecture report fuel savings of 3–8% annually — a significant figure when measured against the fuel costs of a mid-size gas turbine plant.

From a maintenance perspective, the 8C-TAIDB1 supports predictive maintenance workflows by providing the continuous analog data streams that feed Honeywell’s Asset Manager and condition monitoring applications. Abnormal signal drift — indicating a failing transmitter or a developing process fault — is detected early, allowing maintenance teams to schedule interventions during planned downtime rather than responding to unplanned failures. This shift from reactive to predictive maintenance directly reduces both unplanned downtime (from degraded equipment running inefficiently) and production losses from emergency shutdowns.

Every unit supplied by ZYPLC undergoes full functional testing prior to shipment, including signal accuracy verification across all 16 channels, power consumption measurement, and communication handshake testing with the target DCS platform. Stock is maintained for shipment arranged after confirmation, with a warranty terms confirmed during quotation covering all hardware defects identified under normal operating conditions.

Product Sourcing FAQ

Q1: How does the 8C-TAIDB1 contribute to measurable operational stability on the production line?
The module enables high-resolution, real-time analog signal acquisition from field instruments. This data allows the Experion PKS or TDC 3000 DCS to implement precise closed-loop control — adjusting drives, valves, and heaters to match actual process demand rather than running at fixed conservative setpoints. The result is a direct reduction in over-drive operating load across motors, pumps, and thermal systems.

Q2: Is the 8C-TAIDB1 compatible with both TDC 3000 and Experion PKS systems?
Yes. The 8C-TAIDB1 is designed for Honeywell’s TDC 3000 platform, and the 8C-TAID61 is the functionally equivalent variant for Experion PKS environments. Both modules support standard industrial signal types (4–20 mA, RTD, thermocouple) and integrate with Honeywell’s HPM, C300, and AM controller families. Always verify the specific firmware revision and backplane compatibility with your system configuration before installation.

Q3: Can this module replace a failed analog input card without a full system reconfiguration?
In most cases, yes. The 8C-TAIDB1 / 8C-TAID61 is a direct replacement for the original Honeywell analog input modules in the same form factor. Channel configuration is retained in the DCS database, so replacement typically requires only physical swap and a channel verification test. ZYPLC recommends performing a full 16-channel signal accuracy test post-installation to confirm calibration integrity.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
All 8C-TAIDB1 and 8C-TAID61 modules supplied by ZYPLC are tested for signal accuracy, power draw, and DCS communication compatibility before dispatch. The warranty terms confirmed during quotation covers hardware defects arising under normal operating conditions, including signal channel failures, power supply faults, and communication interface issues. Warranty claims are processed directly through ZYPLC’s technical support team.
