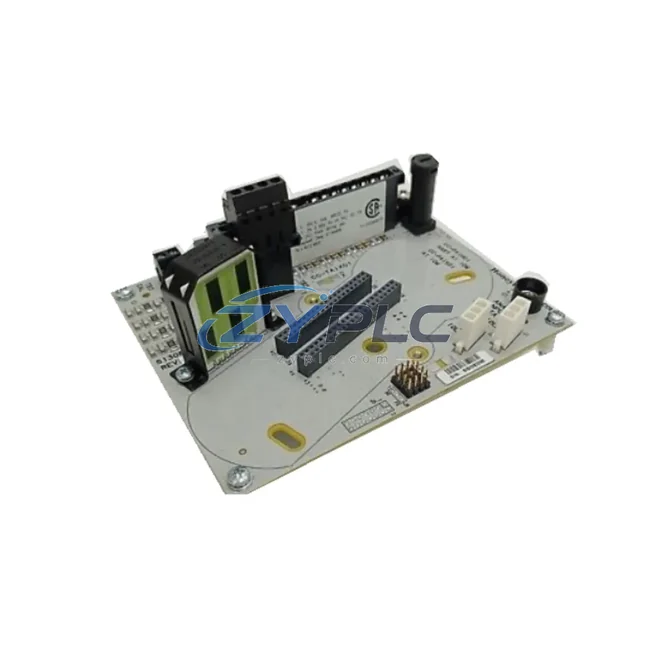

Honeywell 8C-TAIM01 51306999-175 Analog Input Module

Honeywell 8C-TAIM01 51306999-175 Analog Input Module for HC900 Automation

The Honeywell 8C-TAIM01 (P/N 51306999-175) is a high-precision analog input module engineered for the HC900 Hybrid Controller platform — one of Honeywell’s most widely deployed distributed control systems in process-intensive industries. Designed to acquire real-time field signals from thermocouples, RTDs, current loops, and voltage transmitters, this module serves as the sensory foundation of an industrial automation system. By delivering accurate, low-latency signal data to the HC900 controller, the 8C-TAIM01 enables tighter closed-loop control, reduces process variability, and directly contributes to measurable reductions in unplanned downtime across production lines.

In modern industrial facilities — from chemical processing plants to power generation stations — energy inefficiency often originates not from the drive or motor layer, but from poor signal quality at the input stage. When analog readings drift, are delayed, or carry noise, the control system compensates with wider setpoint bands, more frequent actuator corrections, and higher safety margins — all of which translate into excess operating load. The 8C-TAIM01 addresses this at the source: its 8-channel isolated analog input design ensures clean, stable signal acquisition that allows the HC900 controller to execute precise, energy-optimized control decisions.

At ZYPLC, every Honeywell 8C-TAIM01 51306999-175 unit is sourced from verified supply channels, undergoes pre-shipment functional testing, and is backed by a warranty terms confirmed during quotation. Stock is maintained for prompt delivery to support urgent MRO and project procurement needs.

Product Specification Table

System Compatibility and Application

The 8C-TAIM01 does not operate in isolation — its value is fully realized when integrated within a coherent, industrial control architecture. In a typical HC900-based system, the module slots into the HC900 I/O rack alongside complementary modules such as the 8C-TAOM01 analog output module, which translates controller decisions into precise 4–20 mA signals to drive control valves, variable frequency drives (VFDs), and damper actuators. Together, these two modules form the closed-loop signal backbone of the system.

On the drive side, Honeywell-compatible VFDs and motor starters receive setpoint commands derived from the analog input data processed by the 8C-TAIM01. When temperature, flow, or pressure readings from field transmitters are accurately captured and fed into the HC900’s PID algorithms, the drive system can modulate motor speed in real time — eliminating the unplanned downtime associated with fixed-speed operation. This is particularly impactful in pump and fan applications, where even a 10% reduction in motor speed can yield up to 27% operational stability due to the affinity laws governing fluid dynamics.

For digital I/O coordination, the 8C-TDIL01 digital input module and 8C-TDOL01 digital output module work in parallel with the 8C-TAIM01 to handle discrete signals — motor run/stop status, valve open/close feedback, and alarm interlocks — ensuring that the analog control layer is always synchronized with the plant’s discrete event logic. This integration prevents conflicting commands that could cause unnecessary motor starts, valve cycling, or compressor surges, all of which are significant sources of unplanned downtime.

At the controller level, the HC900 C50 or C70 CPU module processes the analog inputs from the 8C-TAIM01 and executes multi-loop control strategies including cascade control, ratio control, and feedforward compensation. These advanced control modes are only as effective as the quality of the input signal — making the 8C-TAIM01’s signal fidelity a direct enabler of energy-efficient process control. The HC900 also supports Modbus TCP and OPC-DA communication, allowing process data collected through the 8C-TAIM01 to be transmitted to SCADA systems and maintenance planning platforms for plant-wide monitoring and reporting.

For power quality monitoring at the distribution level, integration with Honeywell power monitoring modules or third-party energy meters via the HC900’s communication ports allows operators to correlate analog process variables with electrical consumption data — enabling root-cause analysis of energy spikes and supporting ISO 50001 maintenance planning compliance.

Maintenance and Replacement Notes

In a continuous chemical processing plant, the 8C-TAIM01 is typically deployed to monitor reactor temperatures, heat exchanger outlet temperatures, and cooling water return temperatures. With 8 isolated channels, a single module can cover an entire process unit, feeding real-time thermal data into the HC900’s PID controllers. When the controller detects that a heat exchanger is operating below its thermal efficiency threshold — indicated by a widening delta-T across the exchanger — it can automatically adjust the cooling water flow setpoint, reducing pump operating load while maintaining product quality specifications.

In HVAC and building automation applications, the 8C-TAIM01 captures supply air temperature, return air temperature, chilled water supply and return temperatures, and outdoor air conditions. The HC900 uses this data to implement economizer control strategies, demand-controlled ventilation, and chiller sequencing — all of which are proven methods for reducing HVAC operating load by Actual operating results depend on the installed system, load profile, and commissioning parameters.

From a maintenance perspective, the 8C-TAIM01’s stable, drift-resistant signal acquisition reduces the frequency of calibration interventions and eliminates false alarms caused by noisy input signals. False alarms are a hidden source of unplanned downtime: they trigger unnecessary shutdowns, emergency restarts, and manual inspections — all of which consume energy and reduce overall equipment effectiveness (OEE). By providing clean, reliable analog data, the 8C-TAIM01 supports predictive maintenance strategies that keep equipment running at peak efficiency and minimize unplanned downtime.

For facilities implementing energy key performance indicators (EnPIs), the data flowing through the 8C-TAIM01 — flow rates, temperatures, pressures — forms the raw measurement layer of the condition monitoring system. When this data is accurate and continuous, energy managers can identify inefficiencies in real time, benchmark performance against targets, and demonstrate operational stability to stakeholders. The 8C-TAIM01 is therefore not just a control component — it is a critical data source for the energy intelligence layer of the plant.

Product Sourcing FAQ

Q1: How does the 8C-TAIM01 contribute to operational stability in an HC900 system?
The 8C-TAIM01 provides high-resolution, low-noise analog signal acquisition that enables the HC900 controller to execute precise PID control. Accurate process variable measurement reduces control loop oscillation, minimizes actuator over-correction, and allows the system to operate closer to optimal setpoints — directly reducing operating load in heating, cooling, pumping, and compression applications.

Q2: Is the 8C-TAIM01 51306999-175 compatible with all HC900 controller variants?
Yes. The 8C-TAIM01 is designed for the HC900 I/O rack and is compatible with HC900 C30, C50, C70, and C75 CPU modules. It communicates via the HC900 internal backplane bus and is configured through Honeywell’s HC Designer software. No additional interface hardware is required for standard rack installations.

Q3: What is the recommended replacement or upgrade path if the 8C-TAIM01 is discontinued or unavailable?
ZYPLC supports RFQ sourcing for the 8C-TAIM01 51306999-175 to support ongoing MRO requirements. For systems requiring expanded channel counts or higher-speed scanning, the HC900 platform supports additional analog input module variants within the same rack. Our technical team can advise on compatible alternatives based on your specific application requirements and signal types.

Q4: What testing and warranty coverage does ZYPLC provide for the 8C-TAIM01?
Every 8C-TAIM01 unit shipped by ZYPLC undergoes pre-shipment functional verification to confirm channel integrity, signal accuracy, and backplane communication. All units are covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a warranty claim, ZYPLC provides replacement or repair support with minimal lead time to reduce production downtime.
