Honeywell 8C-TAOXA1 51307135-175 Analog Output Module C300

Honeywell 8C-TAOXA1 51307135-175 Analog Output Module: Industrial Data Link for C300 DCS Networks

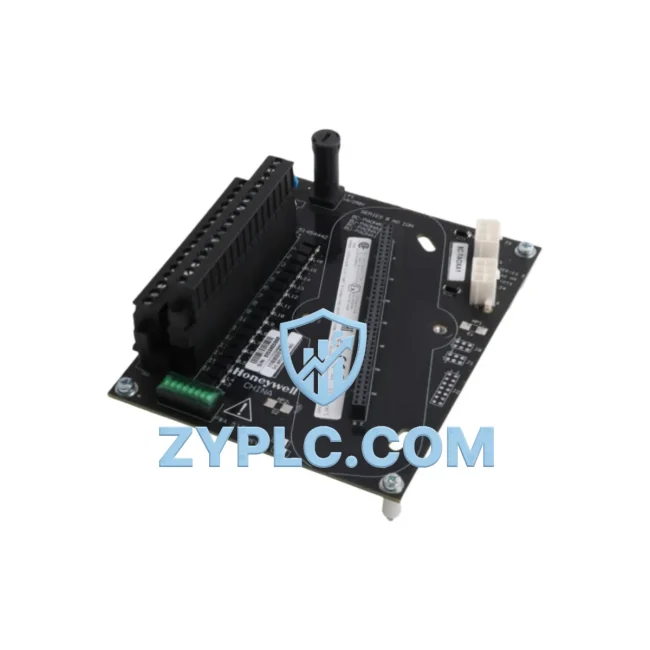

The Honeywell 8C-TAOXA1 (Part No. 51307135-175) is a high-performance Analog Output Module engineered for the Honeywell C300 Distributed Control System (DCS). Designed to serve as a critical node in the industrial data chain, this module bridges the gap between the DCS controller and field-level actuators, control valves, variable frequency drives, and positioners. In smart factory environments where real-time signal fidelity and network stability are non-negotiable, the 8C-TAOXA1 delivers precision 4–20 mA analog output signals with HART protocol support, enabling bidirectional communication between the control layer and intelligent field devices.

Whether deployed in oil and gas processing, chemical manufacturing, power generation, or advanced discrete automation, the Honeywell 51307135-175 module ensures that every control command issued by the C300 Controller is faithfully transmitted to the process field — with minimal latency, maximum reliability, and full integration into the plant’s SCADA and HMI architecture.

Network Communication Table

Connected Automation Data Flow

In a fully integrated Honeywell Experion PKS environment, the 8C-TAOXA1 Analog Output Module operates at the heart of the process control data flow. The data chain begins at the field level, where sensors and transmitters — such as pressure transmitters, flow meters, and temperature sensors — feed real-time process values back to the C300 Controller via Analog Input Modules like the Honeywell 8C-TAIXA1 (51307135-150). The C300 Controller processes this data, executes the control algorithm, and issues output commands that are routed through the 8C-TAOXA1 to downstream actuators.

The 8C-TAOXA1 transmits 4–20 mA signals to control valves, electro-pneumatic positioners, and variable frequency drives (VFDs) — including Honeywell-compatible drives and third-party inverters integrated via the plant’s control network. With HART protocol support, the module also enables two-way communication with smart field devices, allowing the Honeywell Experion PKS Station (HMI) and connected SCADA systems to retrieve device diagnostics, calibration data, and health status without interrupting the control loop.

The module slots into the Honeywell CC-PCNT01 C300 Controller Chassis and communicates over the Fault Tolerant Ethernet (FTE) network — a redundant, high-availability network backbone that ensures uninterrupted data transmission even during single-point failures. Alongside the Honeywell 8C-PAONA1 (51307135-275) Analog Output Module and the Honeywell 8C-TDIDS1 (51307135-100) Digital Input Module, the 8C-TAOXA1 forms part of a comprehensive I/O subsystem that supports both legacy process instrumentation and modern IIoT-ready field devices.

For remote I/O applications, the module integrates seamlessly with Honeywell Remote I/O (RIO) nodes, extending the C300 control architecture across geographically distributed plant sections. Data from remote nodes is aggregated at the Honeywell Application Control Environment (ACE) server, where it is made available to plant-wide SCADA platforms, historian databases, and MES systems. Edge gateways and OPC-UA servers can further bridge the Honeywell DCS data to cloud-based analytics platforms, enabling predictive maintenance and real-time KPI monitoring across the entire smart factory ecosystem.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in modern industrial facilities is data isolation — the inability to move process data seamlessly between field devices, controllers, and upper-level management systems. The Honeywell 8C-TAOXA1 51307135-175 directly addresses this challenge by serving as a protocol-aware, network-integrated output node within the C300 DCS architecture.

Protocol Fragmentation: Many industrial sites operate a mix of legacy 4–20 mA devices alongside modern HART-enabled smart instruments. The 8C-TAOXA1 supports both simultaneously, eliminating the need for separate signal converters or protocol gateways at the field level. This reduces wiring complexity, lowers installation costs, and ensures that all field device data — including HART diagnostic variables — is available to the Experion PKS SCADA and HMI layer without additional middleware.

Remote Monitoring and Diagnostics: In large-scale process plants, manual inspection of field devices is time-consuming and operationally risky. The HART communication capability of the 8C-TAOXA1 enables remote device diagnostics directly from the Experion PKS operator station. Maintenance teams can read device status, detect loop faults, and perform calibration checks without visiting the field — dramatically reducing mean time to repair (MTTR) and improving overall equipment effectiveness (OEE).

Production Line Transparency: By integrating with the plant’s FTE network and Experion PKS historian, the 8C-TAOXA1 contributes to a fully transparent production data layer. Every analog output command is logged, timestamped, and available for trend analysis, alarm management, and regulatory compliance reporting. This level of transparency is essential for ISO-certified manufacturing environments and facilities operating under stringent process safety standards.

System Scalability: The modular architecture of the C300 DCS allows additional 8C-TAOXA1 modules to be added to the I/O chassis without system downtime, supporting phased plant expansions and capacity upgrades. This scalability ensures that the control infrastructure can grow alongside production demands without requiring a full system redesign.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell 8C-TAOXA1 51307135-175 support?
The 8C-TAOXA1 supports HART (Highway Addressable Remote Transducer) protocol over the standard 4–20 mA analog output loop. At the system level, it communicates with the C300 Controller via the Honeywell proprietary I/O backplane interface and integrates into the plant-wide Fault Tolerant Ethernet (FTE) network, ensuring compatibility with Experion PKS SCADA, HMI, and historian systems.

Q2: How does the module ensure network stability and signal reliability in harsh industrial environments?
The 8C-TAOXA1 is designed for continuous operation in demanding process environments. It features galvanic isolation on analog output channels to prevent ground loop interference, and operates within the redundant FTE network architecture of the C300 DCS, which provides automatic failover in the event of a network segment failure. The module undergoes full functional testing prior to shipment from ZYPLC, with each unit verified for output accuracy and HART communication integrity.

Q3: Is the Honeywell 51307135-175 compatible with third-party SCADA and HMI systems?
Yes. While the 8C-TAOXA1 is natively integrated with Honeywell Experion PKS, its HART protocol support and standard 4–20 mA output make it compatible with third-party SCADA platforms (including Wonderware, iFIX, and Ignition) via OPC-DA or OPC-UA server interfaces. System integrators can configure the C300 DCS to expose process data to external HMI and SCADA systems without modifying the field wiring or I/O configuration.

Q4: What warranty and after-sales support does ZYPLC provide for the Honeywell 8C-TAOXA1?
ZYPLC provides a 12-month warranty on all Honeywell 8C-TAOXA1 51307135-175 modules. Each unit is inspected and functionally tested before shipment. In the event of a warranty claim, ZYPLC offers rapid replacement or repair support. Our technical team is available to assist with installation guidance, compatibility verification, and system integration questions. Contact us at plc.sales@zyplc.com or +86 19859288691 for pre-sales and after-sales support.
