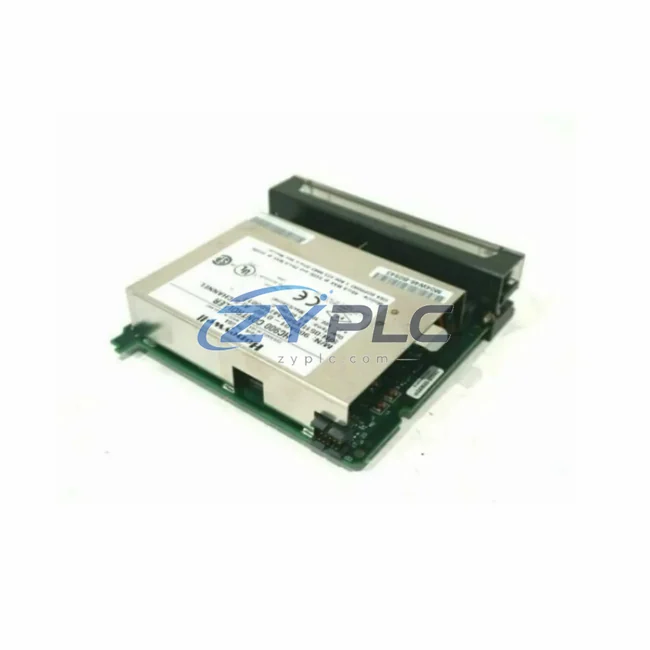

Honeywell 900A01-0102 Analog Input Module for HC900

Honeywell 900A01-0102 Analog Input Module for HC900: Control Layer Coordination and Upstream Signal Integration

In a fully integrated distributed control system, every module must perform not only its primary function but also contribute to the coherence, scalability, and long-term reliability of the entire architecture. The Honeywell 900A01-0102 Analog Input Module is engineered precisely for this purpose — serving as a critical signal acquisition node within the HC900 Hybrid Controller platform, enabling seamless data flow from field instrumentation to the control layer, and supporting the layered automation strategies demanded by modern industrial environments.

The 900A01-0102 is designed to accept analog signals from field devices such as thermocouples, RTDs, pressure transmitters, and flow sensors, converting these signals into digital values that the HC900 controller can process in real time. Its role within the system architecture extends beyond simple signal conversion: it participates in the overall I/O subsystem that defines how the HC900 platform responds to process variables, executes control algorithms, and communicates status to supervisory systems.

Product Specification Table

System Compatibility Notes

The 900A01-0102 does not operate in isolation. Its value is fully realized when integrated within a complete HC900 control architecture, where multiple modules and components work in concert to deliver reliable, scalable process control. Understanding how this module interacts with adjacent system layers is essential for engineers designing or expanding HC900-based systems.

At the controller level, the Honeywell 900C53-0243 HC900 CPU Module serves as the processing core, executing control strategies and managing communication between all I/O modules on the rack. The 900A01-0102 feeds real-time analog data directly to this CPU via the backplane bus, ensuring that process variables are available to control algorithms with minimal latency. For applications requiring redundant control, the 900C72-0460 Redundant CPU Module can be paired with the primary CPU, with the 900A01-0102 continuing to supply consistent analog data to both processors simultaneously.

Power integrity is maintained by the Honeywell 900P01-0301 Power Supply Module, which provides stable DC power to the HC900 rack. In critical applications, a redundant power supply configuration ensures that a single power failure does not interrupt analog signal acquisition. The 900A01-0102 draws its operating power from the rack backplane, making power supply selection and sizing a key architectural consideration.

On the I/O side, the 900A01-0102 is commonly deployed alongside the 900B01-0001 Digital Input Module and the 900G01-0102 Analog Output Module, forming a complete signal acquisition and actuation layer. Digital inputs capture discrete status signals from field devices such as limit switches and motor contactors, while analog outputs drive control elements such as control valves and variable frequency drives. Together, these modules provide the HC900 system with full-spectrum process visibility and control authority.

For applications requiring expanded I/O capacity, the 900R12-0101 Remote I/O Rack allows additional 900A01-0102 modules to be installed at remote locations, connected to the main HC900 controller via a dedicated communication link. This architecture supports geographically distributed process areas without requiring additional controllers, reducing system cost and complexity while maintaining centralized control.

Communication to supervisory systems is handled through the HC900 controller’s Ethernet port, supporting Modbus TCP and OPC protocols. The 900H01-0102 Ethernet Communication Module extends this capability, enabling integration with SCADA platforms, historian systems, and plant-wide data networks. Analog data acquired by the 900A01-0102 is thus available not only to the local control strategy but also to enterprise-level monitoring and reporting systems.

At the human-machine interface layer, operator workstations running Honeywell’s HC Designer configuration software provide full visibility into the analog input channels managed by the 900A01-0102. Alarm setpoints, engineering unit conversions, and signal filtering parameters are all configured at this level, ensuring that operators receive accurate, actionable process information. The 900A16-0202 Analog Input Module (16-channel thermocouple variant) is a closely related module that may be deployed in parallel with the 900A01-0102 in systems requiring dedicated thermocouple measurement alongside general-purpose analog inputs.

Industrial Application Notes

The Honeywell 900A01-0102 is deployed across a wide range of industrial sectors where reliable analog signal acquisition is fundamental to process safety and efficiency.

In chemical and petrochemical processing, the module monitors temperature, pressure, and flow variables across reactor systems, distillation columns, and heat exchangers. Its high-resolution 16-bit conversion ensures that small process deviations are detected early, enabling the HC900 controller to implement corrective actions before process upsets escalate.

In power generation and utilities, the 900A01-0102 is used to monitor turbine inlet temperatures, boiler drum levels, and generator output parameters. The module’s channel isolation prevents ground loops and signal interference in electrically noisy environments, maintaining measurement accuracy across long cable runs from field instruments.

In water and wastewater treatment, the module acquires flow, pH, turbidity, and dissolved oxygen measurements from field analyzers, providing the HC900 controller with the data needed to manage dosing systems, aeration processes, and filtration cycles. Its compatibility with 4–20 mA transmitters makes it universally applicable across the wide variety of instrumentation found in water treatment facilities.

In mining and metals processing, the 900A01-0102 supports temperature monitoring in furnaces and kilns, as well as pressure and flow measurement in hydraulic and pneumatic systems. The module’s wide operating temperature range and robust construction make it suitable for the demanding environmental conditions typical of these applications.

In food and beverage and pharmaceutical manufacturing, the module’s precision analog acquisition supports batch process control, where accurate temperature and pressure measurement is critical to product quality and regulatory compliance. Its integration with the HC900 platform’s batch management capabilities enables full recipe-driven process control.

Product Compatibility FAQ

Q1: How many 900A01-0102 modules can be installed in a single HC900 system, and what are the rack configuration options?
The HC900 platform supports multiple I/O rack configurations, including 4-slot, 8-slot, and 12-slot racks. Each rack can accommodate multiple 900A01-0102 modules, and remote I/O racks connected via the 900R12-0101 Remote I/O interface allow the system to be expanded significantly beyond the local rack. The total number of analog input channels available in a single HC900 system depends on the controller model and the number of racks configured, but typical systems support hundreds of analog input points across multiple racks and remote I/O nodes.

Q2: Is the 900A01-0102 compatible with both the standard HC900 controller and the redundant CPU configuration?
Yes. The 900A01-0102 is fully compatible with both standard and redundant HC900 CPU configurations. In a redundant system using the 900C72-0460 Redundant CPU Module, the analog input data acquired by the 900A01-0102 is available to both the primary and secondary CPUs via the backplane bus. Switchover between primary and secondary CPUs occurs without interruption to analog data acquisition, ensuring continuous process monitoring during controller failover events. This makes the 900A01-0102 suitable for high-availability applications where control continuity is a critical requirement.

Q3: What does the warranty terms confirmed during quotation cover, and how is warranty service handled for the 900A01-0102?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. During the warranty period, defective modules are eligible for replacement or repair at no additional cost. Warranty claims are processed through ZYPLC’s technical support team, who will assess the reported fault and coordinate the appropriate service response. Customers are advised to retain original packaging and documentation to facilitate warranty processing. For applications where extended coverage is required, post-warranty support and spare module stocking services are available through ZYPLC’s inventory program.
