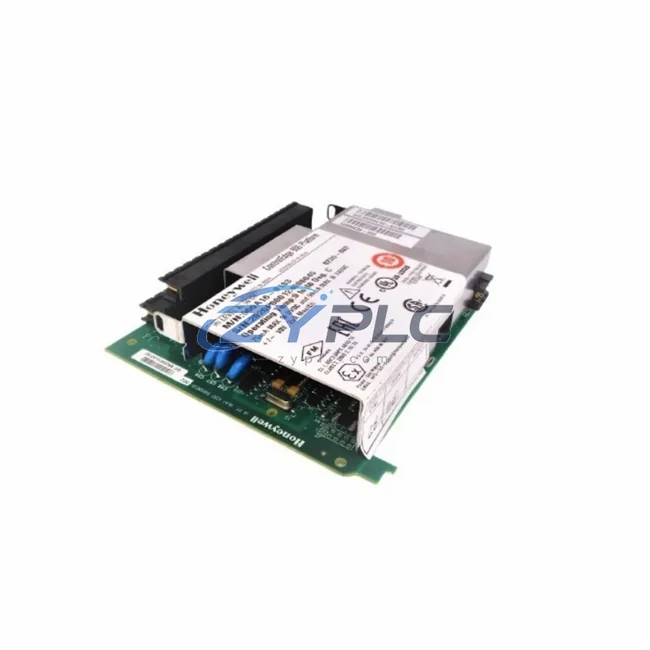

Honeywell 900A16-0106 Analog Input for HC900

Honeywell 900A16-0106 Analog Input for HC900: Compatibility and Replacement Notes

The Honeywell 900A16-0106 is a 16-channel high-level analog input module engineered for seamless integration within the HC900 Hybrid Controller platform. Rather than functioning as a standalone component, this module occupies a critical position within a layered industrial automation architecture — bridging field-level instrumentation with the process control layer to deliver consistent, high-fidelity signal acquisition across demanding industrial environments. Its design philosophy centers on system coherence: every electrical parameter, communication protocol, and mechanical form factor has been optimized to align with the HC900 rack-based ecosystem, ensuring that engineers can deploy, expand, and maintain their control infrastructure with confidence.

In a complete HC900 control system, the 900A16-0106 operates in close coordination with the HC900 Controller CPU module (such as the 900C52-0243 or 900C32-0143), which serves as the central processing unit responsible for executing control strategies, managing I/O scanning cycles, and maintaining real-time communication with supervisory systems. The analog input data acquired by the 900A16-0106 — whether from thermocouples, RTDs, pressure transmitters, or flow meters — is passed directly to the CPU for PID loop execution, alarm management, and historian logging. This tight integration eliminates signal latency and ensures that process variables are reflected accurately in the control strategy at all times.

At the power layer, the 900A16-0106 relies on the HC900 Power Supply module (such as the 900P01-0001 or 900P02-0001) to deliver stable, regulated DC power across the backplane. The HC900 backplane architecture distributes power and communication signals simultaneously, meaning that the analog input module benefits from both electrical isolation and high-speed data transfer without requiring additional wiring between modules. This backplane-based design significantly reduces installation complexity and improves long-term reliability in environments subject to vibration, temperature cycling, and electromagnetic interference.

From a network and communication perspective, the HC900 platform supports multiple industrial protocols including Modbus TCP/IP, OPC DA/UA, and Ethernet-based supervisory connectivity. The 900A16-0106 contributes to this communication architecture by feeding real-time process data into the controller’s data map, which is then made available to SCADA systems, distributed control systems, and historian servers via the HC900’s integrated Ethernet port. For applications requiring redundant communication paths, the HC900 supports dual Ethernet configurations, and the analog input data from the 900A16-0106 is automatically included in both primary and secondary data streams.

At the human-machine interface layer, operators interact with the process data acquired by the 900A16-0106 through compatible HMI terminals or SCADA workstations running Honeywell’s HC Designer or third-party visualization platforms. The module’s 16-channel capacity allows a single rack slot to monitor an extensive range of process variables simultaneously, reducing the number of modules required and simplifying the overall panel layout. This density advantage is particularly valuable in retrofit projects where rack space is limited and minimizing physical footprint is a priority.

For system architects designing redundant or fault-tolerant control systems, the 900A16-0106 can be paired with redundant CPU modules and redundant power supplies within the HC900 architecture to achieve high-availability configurations. In such designs, the analog input module continues to supply process data to the standby CPU in real time, ensuring bumpless transfer in the event of a primary controller failure. This redundancy capability makes the module well-suited for critical process applications in the power generation, oil and gas, and chemical processing industries.

Maintenance engineers benefit from the module’s hot-swap capability within the HC900 rack, allowing replacement without powering down the entire control system. Combined with the HC900’s built-in diagnostics and fault reporting, the 900A16-0106 supports predictive maintenance strategies by flagging channel-level faults, out-of-range signals, and communication errors directly to the operator interface. This reduces unplanned downtime and extends the operational life of the control system as a whole.

ZYPLC maintains availability subject to RFQ confirmation of the Honeywell 900A16-0106 and all associated HC900 system components, backed by a warranty terms confirmed during quotation covering manufacturing defects and functional performance. Our technical team provides pre-sales architecture consultation, compatibility verification, and post-sales commissioning support to ensure that every module integrates correctly into your existing or new control system design.

Product Specification Table

System Compatibility Notes

The 900A16-0106 achieves its full potential when deployed as part of a coordinated HC900 system architecture. A typical installation begins with the HC900 rack assembly — either the 900R08-0001 (8-slot) or 900R16-0001 (16-slot) backplane — which provides the physical and electrical foundation for all modules. The CPU module (900C52-0243 for high-performance applications or 900C32-0143 for standard process control) occupies the leftmost slot and manages all I/O scanning and control execution.

Adjacent to the CPU, the 900A16-0106 analog input module collects process variable data from field instruments and transmits it across the backplane at high speed. In systems requiring analog output capability, the 900B08-0100 analog output module works in tandem with the 900A16-0106 to close control loops — receiving setpoint commands from the CPU and driving final control elements such as control valves and variable frequency drives. For discrete I/O requirements, the 900G32-0101 digital input module and 900H32-0101 digital output module complement the analog I/O layer, providing a complete mixed-signal I/O architecture within a single rack.

Communication gateways such as the 900CS-0001 serial communication module extend the HC900’s connectivity to legacy Modbus RTU devices, enabling integration of older field instruments and third-party controllers into the unified control architecture. At the supervisory level, the HC900’s Ethernet port connects directly to SCADA servers and historian platforms, with the 900A16-0106’s channel data automatically mapped into the controller’s OPC data server for real-time visualization and trending.

Industrial Application Notes

The Honeywell 900A16-0106 is deployed across a wide range of industrial sectors where reliable analog signal acquisition is fundamental to process safety and efficiency. In power generation facilities, the module monitors critical parameters such as generator output voltage, transformer temperatures, and cooling water flow rates, feeding this data to the HC900 CPU for automated load management and protective relay coordination. Its 16-bit resolution ensures that even small deviations in process variables are detected and acted upon before they escalate into equipment damage or production loss.

In oil and gas processing plants, the 900A16-0106 handles signals from pressure transmitters, level sensors, and gas analyzers distributed across hazardous areas, with the HC900 system providing the centralized control logic for separator control, compressor management, and pipeline pressure regulation. The module’s channel isolation prevents ground loops and signal cross-contamination — a critical requirement in environments where multiple field instruments share common grounding infrastructure.

Water and wastewater treatment facilities rely on the 900A16-0106 to monitor flow rates, pH levels, dissolved oxygen concentrations, and chemical dosing rates across multiple treatment stages. The HC900’s multi-loop PID capability, fed by the analog input data from the 900A16-0106, enables precise chemical dosing control that meets regulatory discharge standards while minimizing reagent consumption. In pharmaceutical and food processing applications, the module supports FDA 21 CFR Part 11 compliance by providing accurate, auditable process data for batch record generation and quality assurance reporting.

Mining and metallurgical operations use the 900A16-0106 in ore processing, flotation control, and smelting applications where high ambient temperatures and heavy electrical noise are constant challenges. The module’s robust isolation design and wide operating temperature range ensure reliable performance in these demanding environments, while the HC900’s redundant architecture options provide the fault tolerance required for continuous operation in remote locations where maintenance access is limited.

Product Compatibility FAQ

Q1: Is the 900A16-0106 compatible with all HC900 CPU and rack configurations?
The 900A16-0106 is fully compatible with all HC900 rack sizes (900R08-0001 and 900R16-0001) and all HC900 CPU variants, including the 900C32-0143, 900C52-0243, and 900C71-0243. No firmware upgrades or hardware modifications are required for integration into existing HC900 systems. ZYPLC recommends verifying the HC Designer software version to ensure that the module’s channel configuration templates are available in your engineering environment.

Q2: Can the 900A16-0106 be used in a redundant HC900 architecture, and how does failover affect analog input data continuity?
Yes. In redundant HC900 configurations, both the primary and secondary CPU modules continuously scan all I/O modules, including the 900A16-0106, via the backplane. In the event of a primary CPU failure, the secondary CPU assumes control without interrupting the I/O scan cycle, ensuring that analog input data remains available to the control strategy without any gap. This bumpless transfer capability is essential for applications where process upsets during controller switchover are unacceptable, such as continuous chemical reactors and power plant auxiliary systems.

Q3: What does the warranty terms confirmed during quotation cover, and what support does ZYPLC provide during the warranty period?
ZYPLC’s warranty terms confirmed during quotation covers all manufacturing defects, functional failures, and performance deviations from Honeywell’s published specifications for the 900A16-0106. During the warranty period, ZYPLC provides free replacement or repair of defective units, technical support for installation and commissioning issues, and compatibility verification for system expansion projects. Our engineering team is available via phone (+86 19859288691) and email (plc.sales@zyplc.com) to assist with architecture design, module configuration, and long-term maintenance planning throughout the warranty period and beyond.
