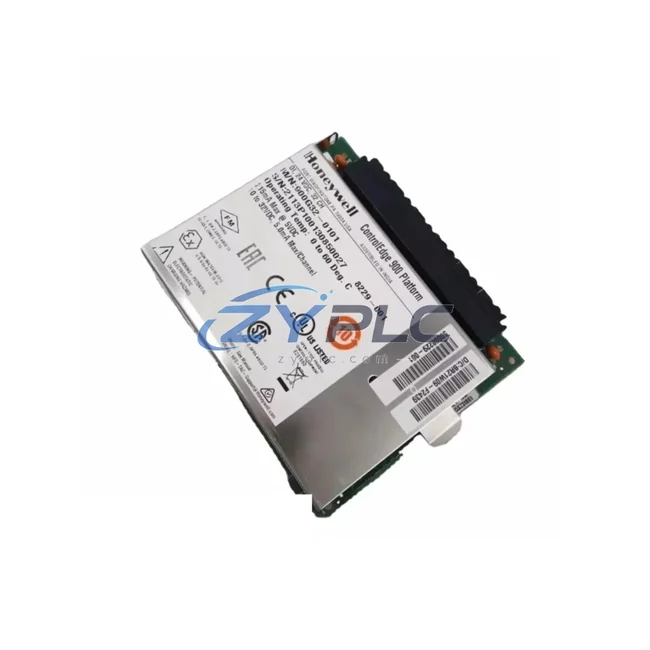

Honeywell 900C75S-0560 Redundant CPU for HC900

Honeywell 900C75S-0560 Redundant CPU for HC900

The Honeywell 900C75S-0560 is a high-performance Redundant C75 CPU module engineered for deployment within the ControlEdge HC900 Distributed Control System (DCS) architecture. Designed to serve as the central processing backbone of mission-critical automation environments, this module delivers seamless bumpless switchover between primary and secondary CPU states, ensuring uninterrupted process control across manufacturing, power generation, petrochemical, water treatment, mining, metallurgy, and packaging applications. Its role within the HC900 platform extends far beyond standalone computation — it functions as the architectural keystone that coordinates signal flow, I/O synchronization, network communication, and redundancy management across every layer of the control hierarchy.

In a fully integrated HC900 system, the 900C75S-0560 operates in conjunction with the 900P01-0001 Power Supply Module, which provides regulated 24 VDC bus power to the controller rack. The CPU communicates with distributed I/O racks via the 900H01-0001 HC900 Remote I/O Scanner, enabling deterministic data exchange across multi-rack configurations. Analog process variables are acquired through modules such as the 900G32-0001 Analog Input Module and 900B08-0001 Analog Output Module, while discrete field signals are managed by the 900G16-0001 Digital Input Module and 900B16-0001 Digital Output Module. Together, these I/O components form the signal acquisition and actuation layer that feeds real-time data to the 900C75S-0560 for processing and control loop execution.

At the network layer, the 900C75S-0560 supports Ethernet-based supervisory communication, enabling integration with SCADA platforms, historian servers, and engineering workstations running Honeywell’s HC Designer configuration software. The module’s dual Ethernet ports facilitate both peer-to-peer redundancy synchronization and upstream supervisory network connectivity, supporting Modbus TCP and OPC DA/UA protocols for system integration with third-party systems. This communication architecture ensures that the CPU can participate in plant-wide data exchange without compromising deterministic control loop timing.

The redundancy architecture of the 900C75S-0560 is particularly significant in high-availability process environments. When paired with a secondary CPU module on a redundant rack configuration, the system continuously synchronizes control program state, I/O data tables, and communication session parameters between primary and standby processors. Upon detection of a primary CPU fault — whether hardware-related or communication-induced — the standby module assumes control within milliseconds, with no process upset or operator intervention required. This bumpless transfer capability is essential in continuous process industries where even brief control interruptions can result in product loss, equipment damage, or safety incidents.

From an engineering and commissioning perspective, the 900C75S-0560 simplifies system deployment through its compatibility with the HC900 rack backplane, including the 900RK02-0001 2-Slot Rack and 900RK08-0001 8-Slot Rack configurations. The module’s firmware supports online program download, allowing engineers to update control logic without taking the system offline — a critical capability for continuous production environments. Diagnostic LEDs on the module faceplate provide immediate visual indication of CPU status, redundancy state, communication health, and I/O scanner connectivity, reducing mean time to repair (MTTR) during fault conditions.

For human-machine interface integration, the HC900 system supports connectivity to Honeywell’s HC900 Operator Interface Terminal as well as third-party HMI platforms via Modbus TCP, enabling operators to monitor process variables, acknowledge alarms, and adjust setpoints from centralized control rooms or local panel-mounted displays. The 900C75S-0560’s processing capacity supports complex control strategies including cascade loops, ratio control, feedforward compensation, and model-based predictive control, making it suitable for advanced process control applications in refining, chemical processing, and utility management.

Long-term maintainability is a core design principle of the HC900 platform. The 900C75S-0560 is hot-swappable in redundant configurations, allowing field replacement of a failed CPU without process shutdown. Spare module management is simplified by the module’s automatic configuration download from the HC900 system database upon insertion, eliminating manual re-programming steps. ZYPLC maintains availability subject to RFQ confirmation of the 900C75S-0560 and associated HC900 components, supporting rapid deployment for both new system builds and emergency replacement scenarios. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, with pre-shipment functional verification to ensure module integrity upon arrival.

Product Specification Table

System Compatibility Notes

The 900C75S-0560 achieves its full operational potential when deployed as part of a coordinated HC900 system architecture. At the power layer, the 900P01-0001 Power Supply delivers stable bus voltage to the CPU and I/O modules mounted on the 900RK08-0001 8-Slot Rack, ensuring consistent electrical performance across all installed modules. The CPU’s I/O scanner interface connects to remote racks via the 900H01-0001 Remote I/O Scanner, extending the control system’s physical reach across large process areas without degrading communication determinism.

Analog process control is handled through the 900G32-0001 Analog Input Module for temperature, pressure, flow, and level signal acquisition, while the 900B08-0001 Analog Output Module drives control valves, variable frequency drives, and other modulating actuators. Discrete I/O is managed by the 900G16-0001 Digital Input Module and 900B16-0001 Digital Output Module, supporting motor starters, solenoid valves, and interlock circuits. The 900C75S-0560 processes all incoming signals within its configured scan cycle, executes the resident control strategy, and updates output modules with calculated control actions — completing the closed-loop control cycle with deterministic timing.

For redundancy-critical applications, a second 900C75S-0560 is installed in the redundant CPU slot of the HC900 rack, continuously synchronized with the primary module via the internal redundancy bus. This configuration eliminates single points of failure at the controller level, complementing redundant power supply arrangements and dual-path network topologies to deliver system-level high availability. The result is a control architecture capable of meeting the uptime requirements of continuous process industries without reliance on manual intervention or scheduled maintenance windows.

Industrial Application Notes

In petrochemical and refining environments, the 900C75S-0560 manages distillation column temperature profiles, reactor pressure control, and feed ratio regulation — applications where process continuity is directly linked to product quality and safety compliance. Its redundant architecture ensures that control authority is maintained even during planned maintenance activities on the primary CPU.

In power generation and utility facilities, the module coordinates boiler combustion control, turbine auxiliary systems, and cooling water management. Its Modbus TCP communication capability enables integration with maintenance planning systems and plant historians, supporting regulatory reporting and operational optimization initiatives.

In water and wastewater treatment plants, the 900C75S-0560 manages pump sequencing, chemical dosing, filtration cycles, and effluent monitoring — processes that require reliable, unattended operation across extended periods. Its hot-swap capability allows module replacement during off-peak hours without disrupting treatment processes.

In mining and metallurgical operations, the module controls conveyor systems, crusher sequencing, flotation cell management, and smelter process variables. The HC900 platform’s tolerance for industrial electromagnetic environments makes it well-suited for the electrically noisy conditions typical of mineral processing facilities.

In packaging and discrete manufacturing lines, the 900C75S-0560 supports high-speed I/O scanning and deterministic loop execution, enabling precise coordination of filling, sealing, labeling, and inspection stations within integrated production lines.

Product Compatibility FAQ

Q1: Is the 900C75S-0560 compatible with existing HC900 racks and I/O modules already installed in my facility?
Yes. The 900C75S-0560 is fully compatible with the HC900 rack backplane family, including 2-slot, 4-slot, and 8-slot rack configurations. It supports all HC900 I/O module types, including analog input/output, digital input/output, and specialty modules. Firmware version compatibility should be verified against the installed HC Designer software version prior to deployment; ZYPLC’s technical team can assist with compatibility confirmation for your specific system configuration.

Q2: How does the redundancy switchover work, and will it cause any process upset?
The 900C75S-0560 implements bumpless hot-standby redundancy. The standby CPU continuously mirrors the primary CPU’s program state, I/O data tables, and communication sessions. Upon primary CPU failure, the standby assumes control within the configured switchover time — typically less than one scan cycle — with no discontinuity in output values or control loop states. This ensures that field devices, including control valves and motor drives, experience no step change in their commanded positions during the switchover event.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for installation and commissioning?
All 900C75S-0560 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional verification to confirm communication port integrity, redundancy bus operation, and I/O scanner connectivity. ZYPLC provides technical support for installation guidance, HC Designer configuration assistance, and troubleshooting throughout the warranty period. Replacement units are dispatched promptly in the event of a warranty claim, minimizing system downtime. Contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com for pre-sales technical consultation and post-sales support.
