Honeywell 900CRAD-10 HC900 Industrial Network Interface for DCS Systems

Honeywell 900CRAD-10 HC900 Industrial Network Interface: Bridging the Industrial Data Link in Smart Factory Environments

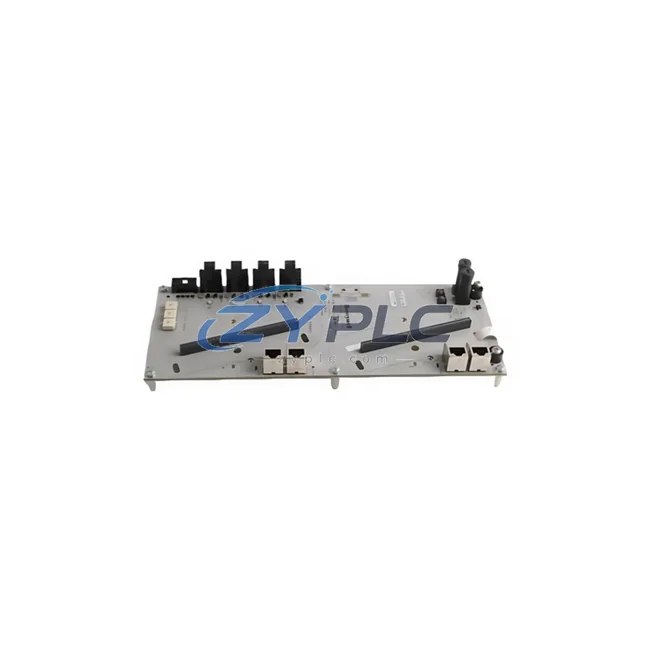

The Honeywell 900CRAD-10 is a purpose-engineered DCS Communication Gateway designed for the HC900 Distributed Control System platform. As industrial facilities accelerate their transition toward smart manufacturing, the demand for reliable, protocol-agnostic communication infrastructure has never been greater. The 900CRAD-10 serves as the critical bridge between field-level devices and supervisory control layers — enabling seamless data flow from sensors and actuators all the way up to SCADA platforms, historian servers, and enterprise MES systems.

In a modern industrial network, data originates at the edge: pressure transmitters, flow meters, temperature sensors, and motor-driven actuators continuously generate process values that must be captured, validated, and transmitted without latency. The 900CRAD-10 Adaptor Panel integrates directly into the HC900 controller backplane, providing a structured communication pathway that aggregates I/O data from remote I/O racks and field instruments, then presents it to higher-level systems through standardized industrial protocols. This architecture eliminates the signal fragmentation that plagues legacy point-to-point wiring schemes and replaces it with a deterministic, network-based data pipeline.

Compatibility & Integration Notes

Connected Automation Data Flow

The 900CRAD-10 sits at the heart of a layered industrial communication architecture. At the field level, process instruments — including Honeywell SmartLine pressure transmitters, thermocouple input modules, and analog I/O cards from the HC900 900A01-0101 I/O family — feed live process values into the HC900 controller via the backplane bus. The 900CRAD-10 Adaptor Panel structures this raw I/O data and makes it available to the controller’s communication stack, where it can be forwarded upstream over Ethernet to SCADA servers running Honeywell Experion PKS or third-party platforms such as Wonderware InTouch or Ignition by Inductive Automation.

Within the control network, the HC900 controller — such as the Honeywell 900C50R-0143 CPU module — coordinates with the 900CRAD-10 to manage data polling cycles, ensuring that critical loop variables like PID setpoints, valve positions, and alarm states are refreshed at deterministic intervals. This is particularly important in applications where the HC900 system is networked alongside Allen-Bradley ControlLogix PLCs or Siemens S7-300 controllers via Modbus TCP/IP gateways, requiring synchronized data exchange across heterogeneous control platforms.

For remote I/O expansion, the 900CRAD-10 supports integration with Honeywell HC900 remote I/O racks, allowing field cabinets located hundreds of meters from the main control room to participate in the same data network. Signals from distributed junction boxes — carrying 4–20 mA analog inputs from flow transmitters, RTD temperature sensors, and discrete outputs driving solenoid valves — are aggregated at the remote rack and transmitted back to the main controller over the HC900 communication bus managed by the 900CRAD-10 interface.

At the HMI layer, operators interact with process data through Honeywell HC900 Designer-configured screens or third-party HMI panels connected via Modbus TCP/IP. The 900CRAD-10 ensures that tag values displayed on operator workstations accurately reflect real-time field conditions, with update rates fast enough to support alarm management and process trending. When integrated with a Honeywell Experion PKS station or a standalone OPC DA server, the gateway enables historian logging of process variables for compliance reporting, energy management, and predictive maintenance analytics.

Edge computing nodes and industrial IoT gateways — such as Moxa EC-series or Advantech WISE-5000 edge controllers — can also connect to the HC900 network via the 900CRAD-10’s Modbus TCP/IP interface, enabling local data preprocessing and cloud forwarding without disrupting the primary control loop. This architecture supports the incremental digitalization strategies favored by process industries transitioning from traditional DCS environments to hybrid IIoT-enabled smart factory platforms.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the existence of data silos — isolated control islands where PLCs, DCS controllers, remote I/O systems, and field instruments operate on incompatible protocols with no shared data pathway. The Honeywell 900CRAD-10 directly addresses this problem by providing a standardized communication interface that bridges the HC900 DCS platform with the broader plant network.

In facilities where legacy Modbus RTU devices coexist with modern Ethernet-based systems, the 900CRAD-10 enables protocol normalization at the controller level. Field devices that previously required dedicated serial communication masters can now be integrated into a unified Modbus TCP/IP network, with the HC900 controller acting as the protocol gateway. This eliminates the need for standalone protocol converters and reduces the number of communication failure points in the network topology.

Remote monitoring and diagnostics are significantly enhanced through the 900CRAD-10’s network integration. Maintenance engineers can access live process data, controller diagnostics, and I/O status from remote workstations without requiring physical access to the control panel. This capability is critical for facilities with geographically distributed process units — such as pipeline stations, water treatment plants, and offshore platforms — where on-site intervention is costly and time-consuming.

Production line transparency is another key benefit. By connecting the HC900 DCS to SCADA and MES platforms through the 900CRAD-10 communication interface, plant managers gain real-time visibility into production KPIs, batch records, and equipment health metrics. This data transparency enables faster decision-making, reduces unplanned downtime, and supports the continuous improvement cycles that define world-class manufacturing operations.

System scalability is built into the 900CRAD-10 architecture. As production capacity expands or process requirements evolve, additional HC900 remote I/O racks and communication modules can be added to the network without redesigning the core communication infrastructure. The adaptor panel’s backplane integration ensures that new I/O points are immediately visible to the controller and upstream SCADA systems, minimizing commissioning time and engineering overhead.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell 900CRAD-10 support, and is it compatible with third-party SCADA systems?
The 900CRAD-10 operates within the HC900 DCS communication framework, which supports Modbus RTU, Modbus TCP/IP, and OPC DA interfaces. This makes it compatible with a wide range of third-party SCADA platforms, including Wonderware, Ignition, and iFIX, as well as Honeywell’s own Experion PKS environment. Protocol compatibility should be verified against the specific HC900 firmware version in use.

Q2: How does the 900CRAD-10 ensure network stability in high-noise industrial environments?
The HC900 platform is designed for industrial-grade reliability, with the 900CRAD-10 adaptor panel providing electrically isolated communication pathways that minimize the impact of electromagnetic interference common in motor-drive and high-voltage switching environments. Redundant power supply options and watchdog timer functions further enhance network stability during transient fault conditions.

Q3: Can the 900CRAD-10 be used to expand an existing HC900 system without replacing the current controller?
Yes. The 900CRAD-10 is designed as a modular expansion component within the HC900 architecture. It can be added to existing HC900 controller racks to extend communication capabilities or increase remote I/O capacity without requiring a controller replacement. System expansion planning should reference the HC900 system configuration guide to ensure backplane slot and power budget compatibility.

Q4: What quality assurance and warranty coverage is provided with the 900CRAD-10?
Every 900CRAD-10 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication interface integrity and I/O channel performance. A warranty terms confirmed during quotation is included with each unit, covering manufacturing defects and communication failures under normal operating conditions. Availability confirmed by RFQ inventory ensures rapid order fulfillment with global shipping capability to support urgent maintenance and project timelines.
