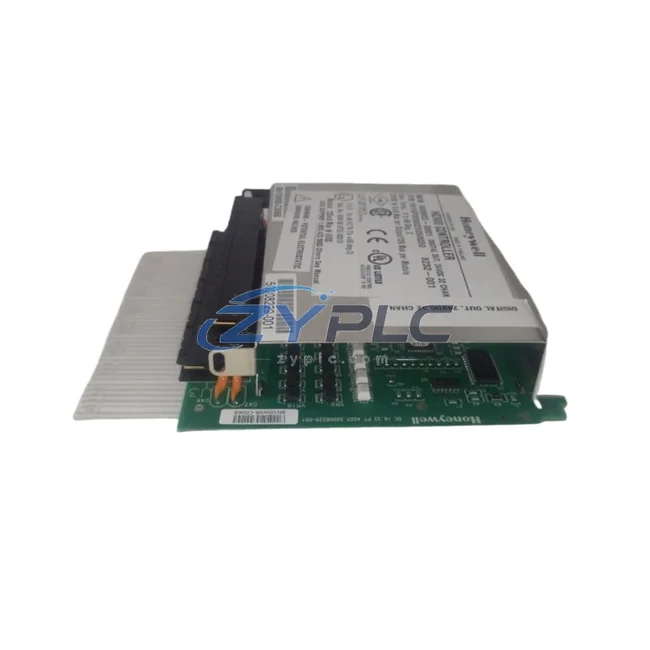

Honeywell 900H32-0001 Digital Output HC900

Honeywell 900H32-0001 Digital Output HC900: Compatibility and Replacement Notes

The Honeywell 900H32-0001 is a 32-channel digital output module purpose-built for the HC900 Hybrid Controller platform, one of Honeywell’s most widely deployed distributed control system (DCS) architectures in process industries. Rather than functioning as a standalone component, the 900H32-0001 occupies a critical position within a layered automation hierarchy — bridging the command logic of the CPU layer with the physical actuation layer, ensuring that discrete control signals are delivered with precision, speed, and system-level consistency.

Understanding the role of this module requires viewing it within the full control system architecture: from the controller and I/O backplane, through the communication network, to the human-machine interface and field devices. The 900H32-0001 is not simply a signal conduit — it is a system-compatible component engineered for system integration across all layers of the HC900 platform.

Product Specification Table

System Compatibility Notes

The 900H32-0001 digital output module achieves its full value only when considered as part of a coordinated HC900 system architecture. At the controller layer, the Honeywell 900C50 or 900C30 CPU module executes the control strategy — processing analog and discrete inputs, running PID loops, logic blocks, and sequence programs — and then issues discrete output commands to modules like the 900H32-0001 via the internal backplane bus. This tight coupling between CPU and I/O ensures deterministic scan-cycle performance, which is essential in time-sensitive process control environments.

At the power layer, the Honeywell 900P24 power supply module provides stable, regulated DC power to the HC900 rack, ensuring that all I/O modules — including the 900H32-0001 — operate within their specified electrical parameters. In redundant system designs, a secondary power supply can be configured to maintain continuous operation during power source failures, eliminating single points of failure at the power layer.

The I/O layer is structured around the HC900 I/O expansion rack (900RCK08 or 900RCK16), which accommodates multiple I/O modules in a single chassis. The 900H32-0001 slots directly into this rack alongside complementary modules such as the Honeywell 900H16-0001 16-channel digital output module and the Honeywell 900G32-0001 32-channel digital input module, enabling a balanced I/O architecture that matches the signal density requirements of the application. For analog process variables, the Honeywell 900A16-0100 analog input module integrates seamlessly within the same rack, allowing mixed I/O configurations without additional hardware.

At the network and communication layer, the HC900 platform supports Ethernet-based supervisory communication via the controller’s built-in Ethernet port, enabling integration with SCADA systems, historian servers, and OPC-DA/UA clients. The Honeywell HC900 Ethernet Communication Module extends this capability to peer-to-peer controller communication in multi-controller architectures, ensuring that the output commands issued to the 900H32-0001 are synchronized across distributed control nodes.

At the human-machine interface layer, operators interact with the HC900 system through compatible HMI platforms such as the Honeywell Experion PKS station or third-party SCADA software connected via OPC. The discrete output states driven by the 900H32-0001 — valve positions, motor run/stop status, alarm relay states — are reflected in real time on the HMI, providing operators with full visibility into the actuation layer. This system integration between the output module and the HMI layer is fundamental to effective process supervision.

At the execution layer, the 900H32-0001 drives field devices including solenoid valves, motor starters, contactor coils, alarm annunciators, and pilot lights. In applications where relay isolation is required between the control system and high-voltage field circuits, interposing relay modules or terminal relay assemblies are installed between the 900H32-0001 output channels and the field wiring, maintaining electrical isolation and protecting the module from inductive load transients.

Industrial Application Notes

Manufacturing and Discrete Production Lines: In automotive assembly, food and beverage packaging, and electronics manufacturing, the 900H32-0001 controls conveyor drives, pneumatic actuators, reject gates, and indicator lamps. Its 32-channel density reduces the number of modules required per rack, simplifying cabinet layout and reducing wiring complexity in high-channel-count applications.

Power Generation and Utilities: In power plant auxiliary systems — including cooling water pumps, fuel oil transfer systems, and auxiliary boiler controls — the 900H32-0001 provides reliable discrete output control for motor starters and valve actuators. The HC900 platform’s ability to support redundant CPU configurations ensures that output commands remain uninterrupted during controller switchover events, a critical requirement in continuous power generation environments.

Petrochemical and Refinery Applications: In distillation column control, compressor sequencing, and flare system management, the 900H32-0001 operates within HC900 architectures that combine analog PID control with discrete logic for interlock and safety shutdown sequences. The module’s integration with the HC900 controller’s function block programming environment allows engineers to implement complex cause-and-effect logic without external relay panels.

Water and Wastewater Treatment: Municipal water treatment plants and industrial effluent systems rely on the 900H32-0001 to control pump stations, chemical dosing systems, and UV disinfection units. The HC900 platform’s Ethernet connectivity enables remote monitoring and control from centralized SCADA systems, reducing the need for on-site operator presence at remote pump stations.

Mining, Metallurgy, and Mineral Processing: In ore crushing circuits, flotation cell control, and smelter auxiliary systems, the 900H32-0001 provides robust discrete output control in environments characterized by vibration, dust, and wide temperature variation. The module’s plug-in design allows rapid replacement during planned maintenance shutdowns, minimizing production downtime.

Process Control and Chemical Manufacturing: Batch reactor sequencing, agitator control, and product transfer systems in specialty chemical plants benefit from the 900H32-0001’s tight integration with the HC900 controller’s batch sequencing and recipe management capabilities, enabling fully automated production cycles with minimal operator intervention.

Product Compatibility FAQ

Q1: Is the 900H32-0001 compatible with both the 900C50 and 900C30 HC900 controller variants, and can it be used in a redundant CPU configuration?
Yes. The 900H32-0001 is fully compatible with all HC900 controller variants, including the 900C50 (with redundancy support) and the 900C30 (standard configuration). In redundant CPU architectures using paired 900C50 controllers, the I/O subsystem — including the 900H32-0001 — remains active and continues to execute output commands during a controller switchover, as the redundant CPU assumes control without interrupting the I/O scan cycle. This makes the 900H32-0001 suitable for high-availability process control applications where output continuity is a system requirement.

Q2: How many 900H32-0001 modules can be installed in a single HC900 system, and what are the backplane slot and rack expansion constraints?
The HC900 system supports up to 16 I/O expansion racks, each accommodating up to 16 I/O module slots (using the 900RCK16 rack). This allows a maximum theoretical configuration of 256 I/O module slots per HC900 system, though practical limits are governed by the controller’s I/O point capacity and scan cycle budget. Multiple 900H32-0001 modules can be distributed across racks to match the physical layout of the control cabinet and field junction boxes, reducing field wiring runs and improving system maintainability.

Q3: What does the warranty terms confirmed during quotation cover for the 900H32-0001, and what is the recommended commissioning and long-term maintenance procedure?
All 900H32-0001 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes functional testing to verify channel integrity and backplane communication. For commissioning, engineers should verify slot assignment in the HC900 Designer configuration software, confirm output channel addressing, and perform a loop check against the field device schedule before enabling outputs. For long-term maintenance, periodic inspection of backplane connector contacts, output channel load verification, and firmware compatibility checks with the installed controller version are recommended to ensure continued system reliability.
