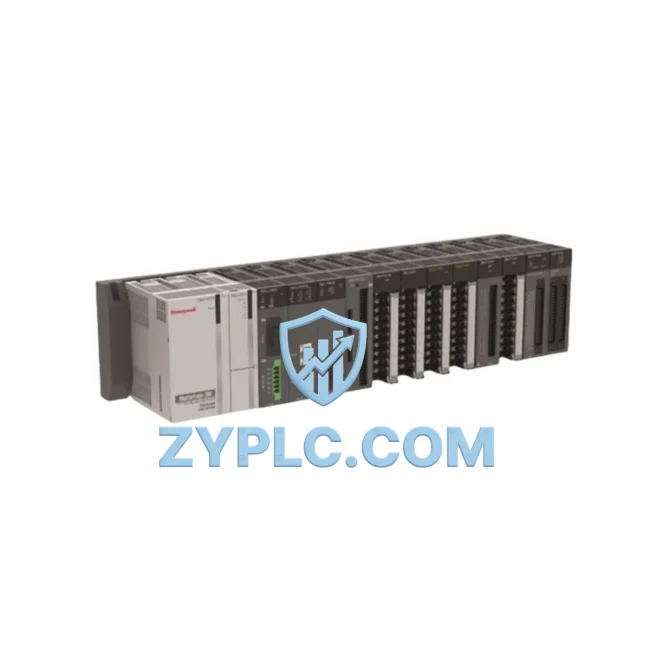

The Honeywell 900R04-0300 is a high-density, energy-optimized rack module engineered for the HC900 Hybrid Controller platform — one of Honeywell’s most widely deployed process automation architectures in refining, chemical processing, power generation, and discrete manufacturing. As a 4-slot rack expansion unit, the 900R04-0300 forms the physical and electrical backbone of the HC900 control node, enabling precise slot-by-slot power distribution, reduced inter-module wiring losses, and tightly regulated backplane communication that directly contributes to lower system-level operating load. In production environments where uptime and energy efficiency are equally critical, this rack module delivers the structural reliability and electrical integrity that modern industrial operations demand.

Unlike generic rack solutions, the 900R04-0300 is purpose-built for the HC900 ecosystem, ensuring full compatibility with Honeywell’s C30, C50, C70, and C75 controller modules. Its backplane architecture supports deterministic scan cycles, which means the CPU — such as the 900C30-0243-00 or 900C50-0243-00 — can execute control loops with minimal jitter, reducing unnecessary re-computation cycles and the associated energy overhead. When paired with Honeywell’s 900P01-0300 power supply module, the rack maintains stable 5 VDC and 24 VDC rails under variable load conditions, preventing voltage sag that would otherwise force connected I/O modules into error-recovery states and increase idle power draw.

Product Specification Table

System Compatibility and Application

In a fully optimized HC900 control architecture, the 900R04-0300 rack module serves as the integration point for a coordinated set of field devices and control components. A typical maintenance-focused deployment begins with the 900C50-0243-00 controller module seated in the primary rack, executing PID loops and cascade control strategies that regulate process variables — temperature, pressure, flow — with the precision needed to avoid energy-wasting overshoot and oscillation.

Analog input modules such as the 900G32-0101 gather real-time process signals from field transmitters, feeding the controller with the data it needs to make energy-conscious control decisions. On the output side, 900H01-0101 analog output modules translate controller commands into 4–20 mA signals that drive control valves and variable-speed drives, enabling smooth, proportional actuation rather than energy-intensive on/off switching. Digital I/O modules like the 900G16-0101 handle discrete signals from motor starters, contactors, and safety interlocks, ensuring that high-draw equipment is energized only when process conditions require it.

Communication is handled through the HC900’s built-in Ethernet port on the controller module, supporting Modbus TCP and OPC connectivity to SCADA systems and Honeywell’s Experion PKS platform. This integration allows operating load data — collected from power meters and flow computers connected via 900H08-0101 thermocouple input modules or dedicated energy metering I/O — to be aggregated at the supervisory level, enabling operators to identify inefficient process segments and implement corrective control strategies in real time.

For multi-rack configurations, the 900R04-0300 can be expanded using remote I/O racks connected via the HC900’s fiber-optic or copper remote I/O link, allowing a single controller to manage distributed field devices across a large plant floor without the energy losses associated with long 4–20 mA signal runs. The 900P01-0300 power supply module, mounted in each rack, ensures that power is delivered efficiently to every I/O slot, with built-in protection against overcurrent and short-circuit conditions that could otherwise cause unplanned shutdowns and the energy-intensive restart sequences that follow.

Maintenance and Replacement Notes

In continuous process industries — petrochemical plants, food and beverage facilities, pharmaceutical manufacturing — the HC900 system built around the 900R04-0300 rack delivers measurable operational stability through tighter process control. When a PID loop running on the 900C50-0243-00 controller maintains a reactor temperature within ±0.5°C rather than ±2°C, the heating system operates at a lower average duty cycle, directly reducing electrical consumption. Similarly, when flow control loops eliminate the hunting behavior caused by poorly tuned or hardware-degraded controllers, pump and compressor motors run at steadier loads, reducing reactive power demand and improving power factor across the facility.

Predictive maintenance is another dimension of maintenance planning enabled by the HC900 platform. The system’s diagnostic registers — accessible via the HC900 Designer configuration software — provide module health data, communication error counts, and power supply status that maintenance teams can monitor to identify degrading components before they cause process upsets. A failing analog input module that introduces signal noise into a control loop will cause the controller to make unnecessary corrective actions, wasting actuator energy and increasing wear on final control elements. By replacing degraded modules proactively — using tested, warranted spares like the 900R04-0300 — facilities avoid both the unplanned downtime of unstable control and the production losses of unplanned downtime.

Inventory availability is a critical factor in maintaining this level of operational discipline. ZYPLC maintains ready stock of the 900R04-0300 and associated HC900 components, with every unit subjected to functional testing prior to shipment. The 12-month warranty covers both the rack module and its backplane connectors, ensuring that replacement units perform to Honeywell’s original specifications from the moment they are installed. Fast shipping from verified stock means that maintenance windows can be planned and executed without extended lead times, keeping production lines running at their optimized energy efficiency targets.

Product Sourcing FAQ

Q: How does the 900R04-0300 contribute to operational stability compared to a standard rack module?
A: The 900R04-0300’s backplane is engineered specifically for the HC900 platform, ensuring low-impedance power distribution to each I/O slot. This reduces voltage drop under load, which means I/O modules operate within their optimal power envelope rather than drawing abnormal load to compensate for supply instability. Combined with the deterministic scan cycle of the HC900 controller, the result is a control system that executes efficiently without unnecessary computational overhead.

Q: Is the 900R04-0300 compatible with all HC900 controller and I/O modules?
A: Yes. The 900R04-0300 is fully compatible with all HC900 controller modules (C30, C50, C70, C75) and the complete range of HC900 I/O modules, including analog input/output, digital input/output, thermocouple, RTD, and pulse input types. It is also compatible with the 900P01-0300 power supply module. No firmware or configuration changes are required when replacing an existing rack of the same part number.

Q: What is the recommended replacement procedure to minimize production downtime?
A: For a hot-swap replacement in a multi-rack HC900 configuration, the affected rack should be powered down at the 900P01-0300 power supply while the controller continues to operate via remote I/O on other racks. I/O modules are then transferred to the new 900R04-0300 rack, the power supply is reconnected, and the controller automatically re-establishes communication with the restored rack. ZYPLC recommends pre-staging the replacement rack with all I/O modules installed and verified before the maintenance window begins.

Q: What does the 12-month warranty cover, and how is it supported?
A: The 12-month warranty covers manufacturing defects, backplane connector integrity, and functional performance to Honeywell’s original specifications. Every 900R04-0300 unit shipped by ZYPLC is tested under load prior to dispatch. In the event of a warranty claim, ZYPLC provides direct technical support and replacement coordination. Contact our team at plc.sales@zyplc.com or +86 19859288691 to initiate a warranty request.
