Honeywell 900RTC-BA50 Analog Output RTP Cable | HC900

Honeywell 900RTC-BA50 Industrial Network Interface for HC900 Systems: Precision Analog Data Link in Smart Factory Environments

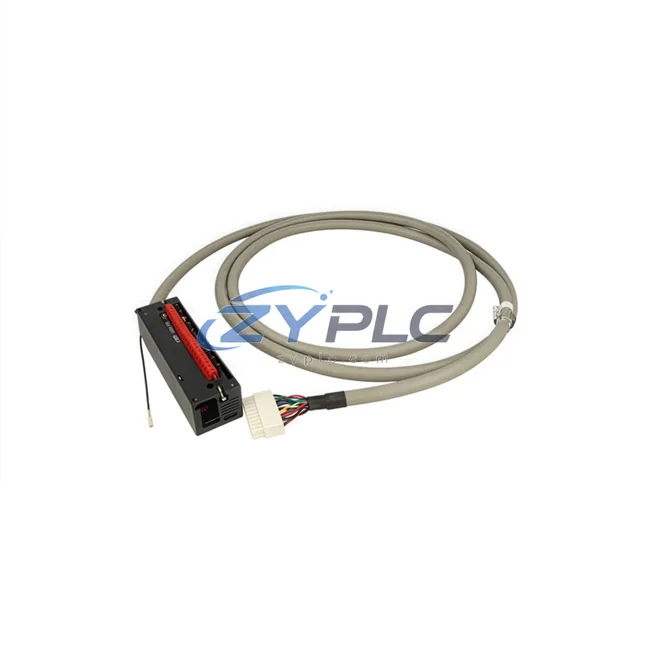

The Honeywell 900RTC-BA50 is a dedicated Analog Output Remote Termination Panel (RTP) Cable engineered for seamless integration within the Honeywell HC900 Process Controller platform. Designed to bridge the gap between controller I/O modules and field-level termination panels, this 50-conductor cable forms a critical segment of the industrial data chain — connecting analog output signals from the HC900 rack to remote termination assemblies with precision, reliability, and minimal signal degradation.

In modern smart factory deployments, the integrity of analog signal transmission is foundational to process control. The 900RTC-BA50 ensures that 4–20 mA and 0–10 V analog output signals generated by the HC900 analog output modules are delivered cleanly to field devices — including control valves, variable frequency drives (VFDs), electro-pneumatic positioners, and current-to-pressure transducers — without noise interference or voltage drop. This makes it an indispensable component in continuous process industries such as oil and gas, chemical processing, power generation, and advanced manufacturing.

Compatibility & Integration Notes

Connected Automation Data Flow

The 900RTC-BA50 operates at the physical layer of the HC900 control architecture, but its role extends far beyond simple wiring. In a fully integrated smart factory, analog output signals originate from the Honeywell HC900 Process Controller — a hybrid DCS/PLC platform capable of handling complex regulatory and logic control. The HC900 analog output module (such as the 900AO-0101) generates precise analog signals that travel through the 900RTC-BA50 cable to the remote termination panel, where field wiring connects to actuators and final control elements.

Upstream, the HC900 controller communicates with SCADA systems via Modbus TCP/IP or OPC-DA/UA protocols, enabling real-time process data to flow to historian servers and operator workstations. The Honeywell HC Designer engineering software configures the control strategy, while the HC900 Operator Interface or third-party HMI platforms — such as Wonderware InTouch or Ignition SCADA — provide visualization and alarm management.

At the field level, the analog outputs driven through the 900RTC-BA50 connect to devices including Fisher DVC6200 digital valve controllers, ABB ACS880 variable frequency drives, and Yokogawa EJA series pressure transmitters operating in reverse signal loops. For remote I/O expansion, the HC900 system supports Honeywell 900RIO Remote I/O modules, which extend the control network across large plant footprints using fiber optic or copper Ethernet backbones.

Edge computing nodes — such as the Honeywell Experion Edge or third-party industrial edge gateways — aggregate analog process data for local analytics, predictive maintenance algorithms, and cloud upload to IIoT platforms. The 900RTC-BA50 thus sits at the intersection of physical signal integrity and digital data transparency, enabling every milliamp of analog output to be traced, logged, and acted upon across the entire automation hierarchy.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is data isolation — the inability to share process information across disparate control systems, protocols, and vendor platforms. The Honeywell HC900 ecosystem, anchored by components like the 900RTC-BA50, directly addresses this challenge through a combination of standardized analog interfaces and open digital communication protocols.

In plants where older pneumatic or 4–20 mA-only field devices coexist with modern Ethernet-based SCADA systems, the HC900 platform acts as a protocol bridge. Analog signals from legacy sensors and actuators are terminated cleanly via RTP cables like the 900RTC-BA50, then digitized within the HC900 controller and made available over Modbus TCP, EtherNet/IP, or OPC-UA to upper-level systems. This eliminates the need for costly rip-and-replace upgrades while enabling full process transparency.

For production line visibility, the HC900 with 900RTC-BA50 cabling supports real-time monitoring of analog output channels — allowing operators to detect valve drift, actuator saturation, or signal loop failures before they escalate into unplanned downtime. Remote diagnostic capabilities, accessible through the HC Designer software or SCADA dashboards, allow maintenance engineers to interrogate individual I/O channels without physical site visits.

System scalability is another key advantage. As production capacity grows, additional HC900 I/O racks can be added and interconnected via the 900RIO remote I/O architecture, with RTP cables like the 900RTC-BA50 maintaining consistent termination standards across all expansion modules. This modular approach ensures that new process loops can be commissioned rapidly without redesigning the existing control infrastructure.

Every Honeywell 900RTC-BA50 shipped by ZYPLC undergoes pre-shipment inspection and is backed by a warranty terms confirmed during quotation, ensuring that your control system wiring meets the reliability standards demanded by continuous process operations. Availability confirmed by RFQ availability and fast global DHL/FedEx dispatch minimize procurement lead times for both planned projects and emergency replacements.

Industrial Connectivity FAQ

Q1: Is the Honeywell 900RTC-BA50 compatible with all HC900 analog output modules?
The 900RTC-BA50 is specifically designed for use with Honeywell HC900 analog output modules that utilize the 50-pin RTP connector interface, such as the 900AO-0101. Always verify the module’s RTP cable specification in the HC900 hardware manual before ordering to ensure pin-count and connector-type compatibility.

Q2: Does using an RTP cable introduce signal delay or communication latency in the analog loop?
No. The 900RTC-BA50 is a passive wiring assembly — it introduces no active processing, buffering, or protocol conversion. Analog signal transmission is essentially instantaneous at the electrical level, with any loop response time determined by the HC900 controller’s scan rate and the field device’s response characteristics, not the cable itself.

Q3: Can the HC900 system with 900RTC-BA50 cabling integrate with third-party SCADA and HMI platforms?
Yes. The HC900 controller supports Modbus TCP/IP and OPC-DA/UA communication, making it compatible with major SCADA platforms including Ignition, Wonderware, iFIX, and Citect. Analog output data routed through the 900RTC-BA50 is available as process variables within the HC900 data map and can be published to any connected SCADA or HMI system in real time.

Q4: What warranty and quality assurance does ZYPLC provide for the 900RTC-BA50?
All Honeywell 900RTC-BA50 cables supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects. Each unit undergoes pre-shipment inspection prior to dispatch. We maintain RFQ-confirmed sourcing for rapid fulfillment, with global shipping via DHL and FedEx. For volume orders or urgent requirements, contact our team directly for lead time confirmation and RFQ support.
