Honeywell 900TCK-0200 Industrial Network Interface for Experion PKS Systems

Honeywell 900TCK-0200: Industrial Data Link for Experion PKS Smart Factory Connectivity

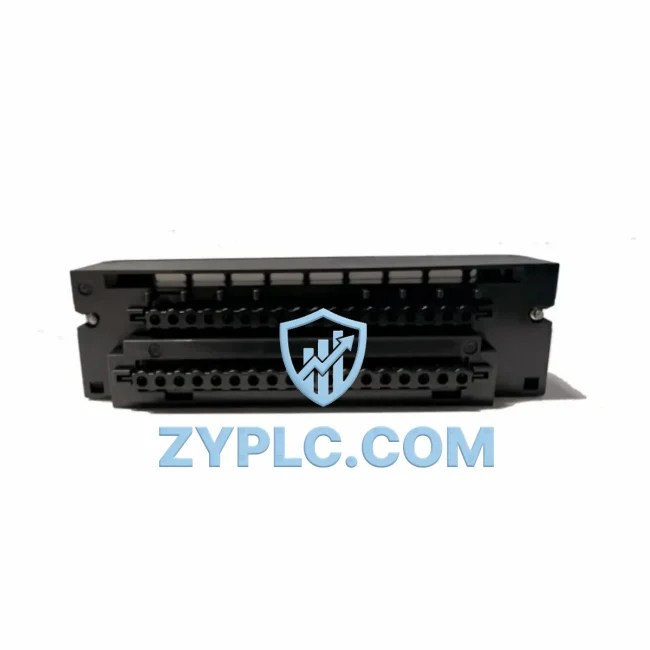

The Honeywell 900TCK-0200 Voltage Terminal Block is a precision-engineered field wiring interface designed for seamless integration within the Honeywell Experion PKS Distributed Control System (DCS) architecture. In modern smart factory environments where uninterrupted data flow between field instruments, controllers, and supervisory systems is mission-critical, the 900TCK-0200 serves as a reliable signal termination and distribution node — bridging analog and digital field signals to the Experion PKS C300 Controller and its associated I/O subsystems.

As industrial sites evolve toward fully connected automation networks, the demand for robust, protocol-compatible terminal infrastructure has never been greater. The 900TCK-0200 is engineered to meet this demand, supporting stable voltage signal transmission across the full data chain — from field-level sensors and transmitters through to SCADA platforms, HMI workstations, and enterprise-level MES systems.

Network Communication Table

Connected Automation Data Flow

In a typical Experion PKS deployment, the 900TCK-0200 sits at the heart of the field wiring layer, receiving voltage signals from pressure transmitters, temperature sensors, flow meters, and level instruments installed across the production floor. These signals are routed through the terminal block to the Honeywell 900G32-0001 Series C I/O Gateway, which aggregates field data and forwards it upstream via FTE (Fault Tolerant Ethernet) — Honeywell’s redundant, high-availability industrial Ethernet backbone — to the Honeywell C300 Process Controller.

The C300 executes real-time control logic and communicates bidirectionally with the Experion PKS Server, where operators interact through Honeywell HMIWeb Display Builder HMI stations. Simultaneously, the process data is made available to Honeywell Uniformance PHD historian and upstream SCADA platforms for trend analysis, alarm management, and production reporting.

For sites requiring protocol bridging — for example, integrating legacy Modbus RTU devices such as variable frequency drives (VFDs), motor control centers (MCCs), or third-party PLCs — the 900TCK-0200 terminal infrastructure pairs naturally with Honeywell 900RMT-0001 Remote I/O modules and compatible Modbus-to-FTE gateways, enabling seamless data aggregation without disrupting the primary DCS network. Edge devices such as Honeywell HC900 Hybrid Controllers can also be integrated into the same wiring infrastructure, extending the reach of the Experion PKS network to skid-mounted or standalone process units.

In multi-loop control architectures, the 900TCK-0200 supports parallel signal distribution to redundant I/O channels, ensuring that critical process variables — such as reactor temperature, vessel pressure, or flow rates — are continuously monitored even during partial network faults. This redundancy is essential for compliance with IEC 61511 functional safety standards in process industries including oil and gas, chemical, and pharmaceutical manufacturing.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — the inability to consolidate process data from heterogeneous field devices, proprietary controllers, and aging communication protocols into a unified, real-time operational picture. The Honeywell 900TCK-0200, as part of the Experion PKS Series 900 I/O ecosystem, directly addresses this challenge.

By providing a standardized voltage signal termination point, the 900TCK-0200 eliminates the need for custom wiring adapters or signal converters when connecting field instruments to the Experion PKS I/O subsystem. This standardization accelerates commissioning timelines, reduces wiring errors, and simplifies future maintenance — all critical factors in large-scale DCS migration projects where minimizing downtime is paramount.

For sites transitioning from older DCS platforms — such as Honeywell TDC 3000 or third-party systems — the 900TCK-0200 provides a compatible termination interface that preserves existing field wiring investments while enabling migration to the modern Experion PKS architecture. Combined with Honeywell Series C Universal I/O modules, the terminal block supports software-configurable signal types, allowing a single hardware platform to handle AI, AO, DI, and DO signals without physical rewiring.

Remote diagnostics capabilities are further enhanced when the 900TCK-0200 is deployed alongside Honeywell Field Device Manager (FDM), which provides HART-based asset management, loop calibration, and predictive maintenance data directly within the Experion PKS environment. This integration transforms isolated field devices into networked, intelligent assets — enabling proactive maintenance scheduling, reducing unplanned downtime, and supporting the transition to Industry 4.0 operational models.

All units supplied by ZYPLC undergo pre-shipment functional testing, are sourced from verified supply channels, and are backed by a 12-month warranty. In-stock inventory ensures rapid fulfillment with global DHL/FedEx express shipping to support urgent MRO and project procurement requirements.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell 900TCK-0200 support in an Experion PKS network?
The 900TCK-0200 is a voltage terminal block that interfaces with Experion PKS Series 900 I/O modules, which support FTE (Fault Tolerant Ethernet) as the primary network protocol. When paired with HART-enabled I/O modules such as the Honeywell 900AI-0001, the terminal infrastructure also supports HART communication for field device diagnostics and asset management. Modbus RTU integration is achievable via compatible gateway modules within the same I/O cabinet.

Q2: Is the 900TCK-0200 compatible with both redundant and non-redundant Experion PKS configurations?
Yes. The 900TCK-0200 terminal block is designed to support both simplex and redundant I/O configurations within the Experion PKS Series 900 architecture. In redundant deployments, dual I/O module pairs share the same terminal block wiring, ensuring continuous signal availability during module switchover events — a critical requirement for high-availability process control applications.

Q3: How does ZYPLC ensure network stability and product quality for the 900TCK-0200?
Every 900TCK-0200 unit supplied by ZYPLC is sourced from verified distribution channels and undergoes pre-shipment inspection and functional verification. Products are covered by a 12-month warranty against manufacturing defects. Our technical team can provide configuration guidance, compatibility verification, and post-sale support to ensure stable integration within your existing Experion PKS network infrastructure.

Q4: Can the 900TCK-0200 be used in system expansion projects to add new I/O points to an existing Experion PKS installation?
Absolutely. The Series 900 I/O architecture is designed for modular expansion, and the 900TCK-0200 terminal block can be added to existing I/O cabinets to support new field device connections without requiring changes to the controller or network configuration. This makes it an ideal component for phased plant expansion projects, where new process loops are added incrementally to an existing DCS infrastructure.
