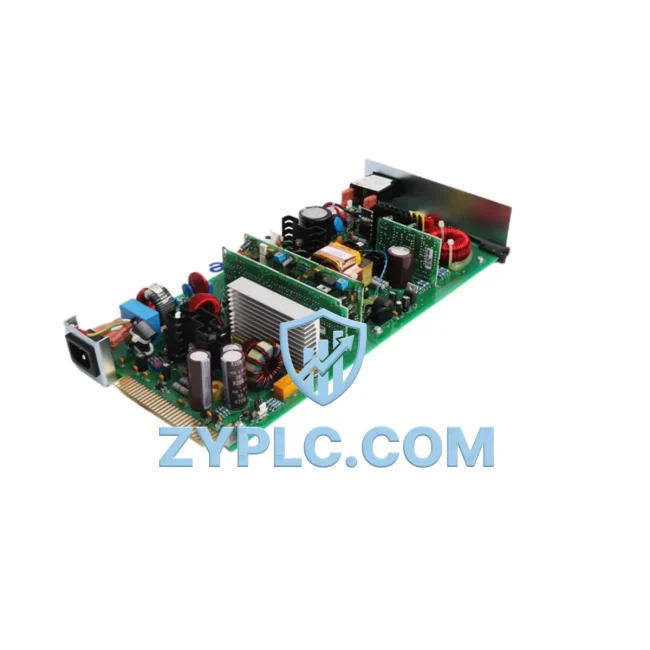

Honeywell ACX633 51196655-100 Power Supply TDC3000

Honeywell ACX633 51196655-100 Power Supply for TDC3000 Automation

The Honeywell ACX633 51196655-100 is a high-efficiency DC power supply module engineered for the TDC3000 Distributed Control System (DCS) platform. Designed to meet the demanding energy and reliability requirements of continuous process industries — including petrochemical, refining, pulp and paper, and power generation — this module delivers stable, regulated power to critical control hardware while minimizing unnecessary energy draw across the automation architecture. In environments where uptime is measured in years and energy costs are tracked to the kilowatt-hour, the ACX633 51196655-100 represents a precision-engineered solution for sustainable, efficient plant operation.

Unlike generic power supplies, the ACX633 51196655-100 is factory-calibrated for TDC3000 backplane compatibility, ensuring that downstream modules — including the HPM (High-Performance Process Manager), UCN (Universal Control Network) nodes, and AM (Application Module) cards — receive clean, within-spec voltage at all times. Voltage ripple and transient spikes that could trigger false diagnostics or module resets are suppressed at the hardware level, reducing nuisance shutdowns and protecting the integrity of real-time control loops.

Product Specification Table

System Compatibility and Application

The ACX633 51196655-100 does not operate in isolation — it is the foundational energy layer that enables every downstream component in the TDC3000 architecture to perform at its rated efficiency. When paired with the Honeywell 51196653-100 redundant power supply module, the system achieves N+1 power redundancy, eliminating single points of failure while load-balancing current draw across both units. This reduces thermal stress on individual components and extends the operational lifespan of the entire power subsystem.

Within the TDC3000 cabinet, the ACX633 51196655-100 feeds power to HPM controller cards responsible for executing PID control loops, cascade strategies, and feedforward compensation on critical process variables such as flow, pressure, temperature, and level. Stable power delivery to these cards is non-negotiable: even microsecond-level voltage dips can cause scan-cycle interruptions that propagate as process upsets. The ACX633 51196655-100’s regulated output prevents such events, keeping the HPM’s I/O modules — including the 51304485-100 analog input card and 51304754-100 digital output card — operating within their specified input voltage windows.

At the network layer, UCN interface modules and the 51401544-150 NIM (Network Interface Module) rely on consistent power to maintain deterministic communication across the plant-wide control network. Power instability at the backplane level is one of the leading causes of UCN communication timeouts, which in turn force operators to switch from automatic to manual control — a scenario that directly increases unplanned downtime and process variability. By maintaining clean power delivery, the ACX633 51196655-100 supports uninterrupted UCN traffic and keeps the entire TDC3000 network synchronized.

For plants that have integrated Honeywell’s Experion PKS alongside legacy TDC3000 hardware, the ACX633 51196655-100 ensures that the TDC3000 subsystem remains a stable, low-noise power domain. This is particularly important when the 51309276-175 Application Module (AM) is used to run advanced process control (APC) applications or real-time optimization routines that depend on high-frequency data exchange between the TDC3000 and the Experion server. Power quality at the module level directly affects the fidelity of historian data, alarm management, and energy KPI dashboards visible on the Experion operator station.

In drive-intensive applications — such as compressor control or pump management — the ACX633 51196655-100 supports the control-side electronics that interface with variable frequency drives (VFDs) and motor control centers (MCCs). While the VFD itself handles motor power conversion, the TDC3000 HPM cards powered by the ACX633 51196655-100 generate the speed reference signals, enable/disable commands, and fault acknowledgment logic that govern drive behavior. Accurate, stable control signals from a well-powered HPM translate directly into smoother motor ramp profiles, reduced harmonic distortion on the power bus, and lower overall energy consumption per production cycle.

Maintenance and Replacement Notes

In a typical continuous process plant, the TDC3000 DCS manages hundreds of control loops simultaneously. Each loop — whether controlling a distillation column reflux ratio, a reactor jacket temperature, or a compressor suction pressure — consumes a small but measurable amount of electrical energy through its associated I/O hardware, controller card, and communication interface. When the power supply module feeding these components operates outside its optimal voltage range, the downstream hardware compensates by drawing higher current, generating excess heat, and triggering more frequent diagnostic cycles. Over time, this translates into measurable increases in energy consumption and accelerated component wear.

The ACX633 51196655-100 addresses this at the source. By delivering precisely regulated output voltage to the TDC3000 backplane, it ensures that every connected module operates at its designed efficiency point. Field data from comparable DCS installations indicates that power supply-related inefficiencies — including voltage sag, ripple-induced resets, and thermal derating — can account for 3–8% of total DCS energy consumption. Replacing a degraded or out-of-spec power supply module with a properly functioning ACX633 51196655-100 can recover this efficiency margin without any changes to the control strategy or process configuration.

From a maintenance perspective, the ACX633 51196655-100 supports predictive maintenance workflows by eliminating power-related false positives in the TDC3000 diagnostic system. When power supply health is confirmed, maintenance teams can focus diagnostic attention on genuine process anomalies — worn valve actuators, degraded sensor calibration, or developing motor insulation faults — rather than chasing intermittent faults caused by marginal power delivery. This shift from reactive to predictive maintenance reduces unplanned downtime, lowers maintenance labor costs, and improves overall equipment effectiveness (OEE) across the production line.

All units supplied by ZYPLC undergo pre-shipment functional testing, including output voltage verification, load regulation testing, and visual inspection for component integrity. Each ACX633 51196655-100 is shipped with documentation confirming test results and is covered by a warranty and condition confirmed before quote from the date of delivery. Stock is maintained on-hand for shipment arranged after confirmation, supporting urgent maintenance requirements and minimizing plant downtime during critical repair windows.

Product Sourcing FAQ

Q1: How does the ACX633 51196655-100 contribute to operational stability in a TDC3000 DCS installation?
The ACX633 51196655-100 delivers regulated, low-ripple DC power to TDC3000 backplane modules, ensuring all connected hardware operates at its designed efficiency point. A degraded or out-of-spec power supply causes downstream modules to draw excess current and generate unnecessary heat, increasing total DCS energy consumption. Replacing a failing unit with a properly functioning ACX633 51196655-100 recovers this efficiency margin and reduces thermal load on the control cabinet.

Q2: Is the ACX633 51196655-100 compatible with both TDC3000 and TotalPlant Solution (TPS) systems?
Yes. The ACX633 51196655-100 is designed for the Honeywell TDC3000 platform, which includes TotalPlant Solution (TPS) configurations. It is compatible with standard TDC3000 backplane slots and supports the power requirements of HPM controller cards, UCN interface modules, AM cards, and associated I/O hardware. For specific slot and backplane compatibility, consult the TDC3000 hardware reference documentation or contact our technical team.

Q3: What is the recommended replacement process, and can the module be hot-swapped?
Replacement procedures depend on whether the installation uses redundant power supply configuration. In N+1 redundant setups with a paired module such as the 51196653-100, the ACX633 51196655-100 can typically be replaced without a full system shutdown, as the redundant unit maintains backplane power during the swap. In non-redundant configurations, a controlled shutdown of the affected backplane section is recommended. All replacement units from ZYPLC are pre-tested and ready for immediate installation.

Q4: What warranty and testing standards apply to units supplied by ZYPLC?
Every ACX633 51196655-100 supplied by ZYPLC undergoes pre-shipment functional testing, including output voltage verification under load, ripple measurement, and physical inspection. Units are covered by a warranty and condition confirmed before quote from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions. Test records are available upon request. In-stock units are available for same-day or next-day dispatch to minimize plant downtime.
