Honeywell C7027A1064 UV Flame Detector for C7027

Honeywell C7027A1064 UV Flame Detector for C7027 Control System

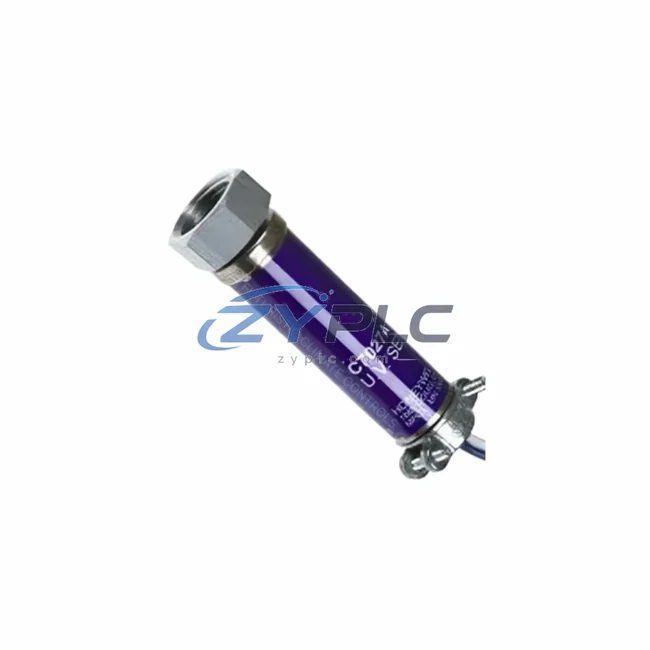

The Honeywell C7027A1064 is a precision ultraviolet (UV) flame detector engineered for seamless system integration within Honeywell’s C7027 burner management and combustion control architecture. In modern industrial automation, flame detection is not an isolated safety function — it is a critical node within a layered control hierarchy that spans the burner management controller, safety interlock logic, I/O signal conditioning, field wiring infrastructure, and human-machine interface. The C7027A1064 is designed to fulfill this role with reliability, long service life, and full compatibility with the broader Honeywell combustion control ecosystem.

Whether deployed in a single-burner boiler application or integrated into a multi-burner process heater system, the C7027A1064 delivers consistent UV flame signal output that feeds directly into the flame amplifier and relay logic of the C7027 control platform. Its architecture-ready design ensures that system engineers can specify, install, and commission this detector with confidence, knowing it will perform within the signal and timing parameters expected by the upstream control logic.

Product Specification Table

System Compatibility Notes

The C7027A1064 does not operate in isolation. Its value is fully realized when understood within the context of a complete burner management system (BMS) architecture. At the control layer, the Honeywell RM7800 Series Burner Management Relay Module or the EC7890 Integrated Burner Controller serves as the primary logic processor, receiving flame presence confirmation from the C7027A1064 via a compatible flame amplifier such as the R7847A1042 or R7848A1017. These amplifier modules translate the UV detector’s raw signal into a clean relay output that the burner controller uses to sequence ignition, modulate fuel valves, and trigger safety shutdowns.

At the I/O and signal conditioning layer, the C7027A1064 interfaces with the R7847 or R7848 amplifier, which in turn connects to the burner controller’s discrete input terminals. In larger multi-burner installations, the S7800A1142 Display Module provides local operator visibility into flame status, lockout history, and diagnostic codes — forming the human-machine interface layer of the combustion control architecture. For systems requiring remote monitoring, the 7800 SERIES Keyboard Display Module (KDM) enables engineers to interrogate system status without physical access to the control panel.

At the power layer, the C7027A1064 (120 VAC) or C7027A1072 (240 VAC) variant is selected based on the local panel supply voltage, ensuring compatibility with the control cabinet’s power distribution design. Proper grounding and shielded wiring between the detector and amplifier are essential for signal integrity, particularly in environments with high electromagnetic interference from variable frequency drives (VFDs) or large motor starters.

For redundant flame detection architectures — common in power generation, petrochemical, and critical process applications — dual C7027A1064 detectors can be mounted at different viewing angles on the same burner, with each feeding an independent amplifier channel. This redundancy design eliminates single-point failure risk in the flame sensing layer and supports SIL-rated safety system requirements. The R7849A1023 Dual Amplifier Module is specifically designed to support this dual-detector configuration within the C7027 platform.

At the field wiring and terminal layer, the C7027A1064 connects via standard 1/2-inch NPT sight pipe fittings, with wiring routed through the control cabinet’s terminal block assemblies. Proper cable selection — typically shielded, twisted-pair instrumentation cable — ensures that the UV signal path remains clean across the full operating temperature range of the installation environment.

Industrial Application Notes

Industrial Boiler Plants: In steam generation facilities, the C7027A1064 is mounted on the burner front plate, providing continuous UV flame monitoring during the firing cycle. The detector’s output feeds the RM7800 burner management relay, which controls the main fuel valve, ignition transformer, and combustion air damper in a tightly sequenced startup and shutdown logic. Facilities operating multiple boilers benefit from standardizing on the C7027A1064 across all units, simplifying spare parts inventory and technician training.

Petrochemical and Refinery Process Heaters: In fired heater applications within refineries and chemical plants, flame detection reliability is a process safety requirement. The C7027A1064’s solar-blind UV detection capability ensures that ambient light from furnace walls or adjacent burners does not cause false flame signals, maintaining the integrity of the safety interlock system. Integration with the plant’s distributed control system (DCS) is achieved through the burner management controller’s digital output signals.

Power Generation — Gas Turbine Auxiliaries: In auxiliary boiler and heat recovery steam generator (HRSG) applications within power plants, the C7027A1064 supports the burner management system that controls duct burners and supplemental firing systems. Its compatibility with the Honeywell 7800 SERIES platform makes it a natural fit for facilities already standardized on Honeywell combustion control infrastructure.

Food and Beverage Processing: In direct-fired ovens, dryers, and process heaters used in food manufacturing, the C7027A1064 provides reliable flame supervision that meets the safety requirements of NFPA 86 (Standard for Ovens and Furnaces). Its NEMA 4 enclosure rating ensures durability in washdown-adjacent environments.

District Heating and Commercial HVAC: Large commercial boiler plants and district heating systems benefit from the C7027A1064’s long service life and straightforward replacement procedure, minimizing planned maintenance downtime and supporting continuous heating system availability during peak demand periods.

Product Compatibility FAQ

Q1: Is the C7027A1064 directly interchangeable with the C7027A1072 in an existing system?
The C7027A1064 (120 VAC / 60 Hz) and C7027A1072 (240 VAC / 50 Hz) are functionally identical UV flame detectors that differ only in supply voltage rating. They are not directly interchangeable without verifying the panel supply voltage. Before substituting one for the other, confirm the voltage specification on the existing wiring diagram and the R7847 or R7848 amplifier module’s input voltage requirements. Both models are compatible with the same sight pipe mounting hardware and amplifier wiring terminals.

Q2: Can the C7027A1064 be used in a SIL-rated safety instrumented system (SIS)?
The C7027A1064 is designed for use within Honeywell’s C7027 burner management platform, which is engineered to meet the functional safety requirements of NFPA 85 and EN 298. For formal SIL certification of the complete safety function, the system integrator must evaluate the full safety loop — including the detector, amplifier, burner management controller, and final element (fuel valve) — against IEC 61511 requirements. ZYPLC recommends consulting the Honeywell safety manual for the RM7800 or EC7890 platform when designing SIL-rated combustion safety loops. All C7027A1064 units supplied by ZYPLC include a warranty terms confirmed during quotation covering manufacturing defects and operational failures under normal service conditions.

Q3: What is the recommended maintenance interval for the C7027A1064, and how does ZYPLC support long-term system availability?
Honeywell recommends annual inspection of UV flame detectors, including cleaning of the UV-transparent sight glass, verification of detector sensitivity using a UV test lamp, and functional testing of the complete flame detection loop from detector through amplifier to burner controller output. ZYPLC supports RFQ sourcing for C7027A1064 and C7027A1072 units to support planned maintenance replacements and emergency breakdowns, with rapid dispatch capability to minimize system downtime. Our warranty terms confirmed during quotation on all supplied units provides additional assurance for maintenance planning and budget forecasting. For system architecture consultation, spare parts planning, or technical support, contact ZYPLC directly.
