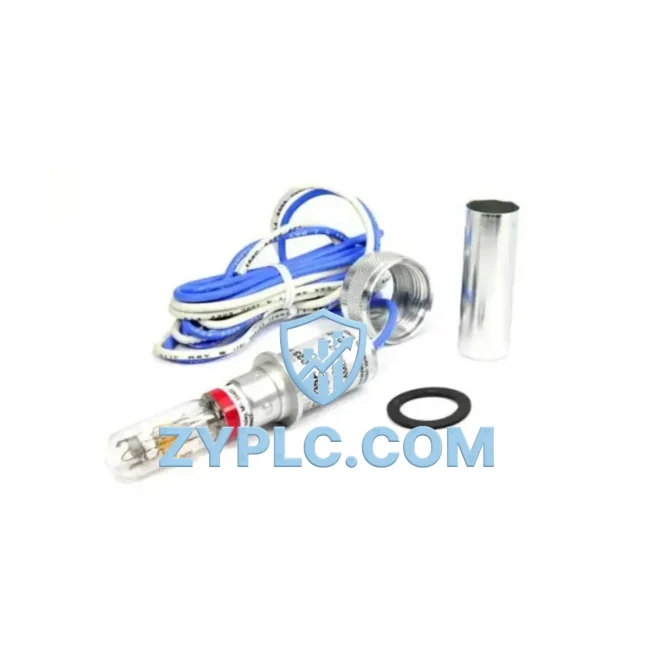

Honeywell C7035A1023 UV Flame Sensor for C7035

Honeywell C7035A1023 UV Flame Sensor: Compatibility and Replacement Notes

The Honeywell C7035A1023 UV Flame Sensor is not simply a standalone detection component — it is a precision-engineered element within a fully coordinated burner management and industrial combustion control architecture. Designed to operate within the C7035 Series flame detection platform, this sensor integrates seamlessly into multi-layer automation systems where signal integrity, response latency, and system-wide consistency are non-negotiable engineering requirements. Understanding the C7035A1023 in the context of its surrounding control hierarchy reveals why it remains a preferred choice for system integrators, OEM panel builders, and maintenance engineers across combustion-intensive industries.

In a layered industrial automation environment, the UV flame sensor occupies a critical position at the field instrumentation level — the lowest and most operationally sensitive tier of the control stack. Its output directly influences the logic decisions made at the burner control level, which in turn communicates upward to the supervisory control layer. Any degradation in sensor performance propagates through the entire signal chain, affecting safety interlocks, alarm management, and process continuity. The C7035A1023 is engineered to eliminate this risk through consistent UV detection sensitivity, stable analog output, and robust housing suitable for harsh combustion environments.

Product Specification Table

System Compatibility Notes

The C7035A1023 achieves its full operational value when evaluated within the complete burner management system (BMS) architecture. At the controller level, the Honeywell RM7800L Burner Control Module serves as the primary logic processor, executing the flame safeguard sequence — pre-purge, ignition trial, run, and post-purge — based on inputs received from field sensors including the C7035A1023. The flame signal generated by the UV sensor is conditioned and interpreted by a dedicated Honeywell R7847A Flame Amplifier, which translates the raw UV detection signal into a logic-level input for the burner control module.

At the ignition layer, the Honeywell Q624A Ignition Transformer or equivalent ignition module initiates the combustion event that the C7035A1023 is tasked with confirming. The sensor’s sub-second response time ensures that the burner control module receives a validated flame signal before the ignition trial period expires, preventing nuisance lockouts and maintaining process uptime. In redundant flame detection architectures — common in power generation and petrochemical applications — a secondary UV or infrared sensor such as the Honeywell C7027A1023 Infrared Flame Detector may be deployed in parallel, with both sensors feeding independent amplifier channels to the same burner control module for cross-validation.

At the I/O and network layer, the burner control module interfaces with a plant-level Distributed Control System (DCS) or Programmable Logic Controller (PLC) — such as a Honeywell Experion PKS controller or a Siemens S7-300/S7-400 series PLC — via hardwired discrete I/O or fieldbus communication (Modbus RTU, PROFIBUS DP). The flame status, lockout condition, and diagnostic data from the RM7800 series are mapped to the supervisory control layer, enabling operators to monitor combustion health from the HMI workstation without direct field access.

Power distribution to the burner control panel is typically managed through a 24 VDC or 120 VAC panel power supply, with dedicated circuit protection for the flame detection circuit. Terminal blocks — such as the Phoenix Contact PTFIX or Weidmüller WDU series — provide reliable field wiring termination points within the control cabinet, ensuring that the sensor signal path remains free of impedance discontinuities that could cause false flame-out indications. In safety-critical installations, the entire flame detection circuit may be routed through a Safety Relay Module (e.g., Pilz PNOZ or Schmersal SRB series) to enforce SIL-rated safety function integrity.

Industrial Application Notes

Power Generation and Boiler Plants: In utility-scale and industrial boiler applications, the C7035A1023 is deployed in multi-burner configurations where each burner requires independent flame supervision. The sensor’s UV detection capability is particularly well-suited to natural gas and light oil combustion, where the UV emission spectrum is strong and consistent. Integration with the plant DCS allows operators to monitor individual burner flame status across an entire boiler bank from a centralized control room, supporting both operational efficiency and regulatory compliance with NFPA 85 (Boiler and Combustion Systems Hazards Code).

Petrochemical and Refinery Process Heaters: Process heaters in crude distillation, hydrotreating, and reforming units operate under continuous high-temperature conditions where flame reliability is directly linked to product yield and personnel safety. The C7035A1023’s robust UV detection performance in high-radiant-heat environments makes it a reliable choice for these applications. Its compatibility with the RM7800 series burner controls — widely deployed in refinery heater management systems — ensures seamless integration without requiring custom signal conditioning hardware.

Pharmaceutical and Food Processing Steam Generation: GMP-compliant manufacturing facilities require burner management systems that provide complete audit trails of flame events, lockout occurrences, and maintenance interventions. The C7035A1023, operating within a Honeywell RM7800 BMS, supports this requirement through the burner control module’s built-in diagnostic and data logging capabilities. The 12-Month Warranty and documented supply chain traceability further support the validation documentation requirements common in regulated manufacturing environments.

Mining and Mineral Processing: In remote mining operations where maintenance access is infrequent and spare parts logistics are challenging, the C7035A1023’s proven reliability and broad compatibility with the C7035 Series ecosystem reduce the risk of extended unplanned downtime. Stocking the C7035A1023 alongside compatible amplifier modules and burner control spares as part of a planned maintenance inventory strategy is a recognized best practice in mining facility engineering.

Product Compatibility FAQ

Q1: Is the C7035A1023 directly interchangeable with the C7035A1064 in an existing RM7800 Series burner control system?
The C7035A1023 and C7035A1064 are functionally equivalent UV flame sensors within the C7035 Series platform and are generally considered cross-reference replacements for one another in RM7800 Series burner control applications. Both sensors are designed to interface with Honeywell R7847 and R7848 flame amplifier modules. However, engineers should verify the specific amplifier model and wiring configuration against the original system documentation before substitution, as minor differences in sensitivity calibration or connector type may exist between production batches. Our technical team can assist with pre-installation compatibility verification.

Q2: Can the C7035A1023 be used in a redundant flame detection architecture, and what additional components are required?
Yes. Redundant flame detection using the C7035A1023 is achievable by deploying two sensors on independent sight tubes aimed at the same burner flame, each connected to a separate flame amplifier channel (e.g., R7847A Channel 1 and Channel 2, or two independent R7847A modules). Both amplifier outputs are then wired to the burner control module’s dual-channel flame input terminals. This configuration is commonly specified in SIL 2 burner management systems where a single sensor failure must not result in an undetected loss of flame. The RM7800 series supports this architecture natively. Consult the system’s functional safety documentation for specific wiring and proof-test interval requirements.

Q3: What does the 12-Month Warranty cover, and how does it support long-term maintenance planning?
The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. For maintenance engineers managing planned replacement cycles on burner management systems, this warranty period aligns with typical annual shutdown and inspection schedules, allowing defective units to be returned and replaced without additional procurement cost. We recommend maintaining a minimum of one spare C7035A1023 per active burner control panel as part of a critical spares inventory strategy. Our supply team can support blanket order arrangements and consignment stock programs for facilities with multiple burner systems requiring ongoing sensor availability.
