Honeywell C7061F2001 Industrial UV Flame Detector for C7061 Systems

Honeywell C7061F2001 Industrial UV Flame Detector: Precision Flame Sensing for Smart Factory Safety Networks

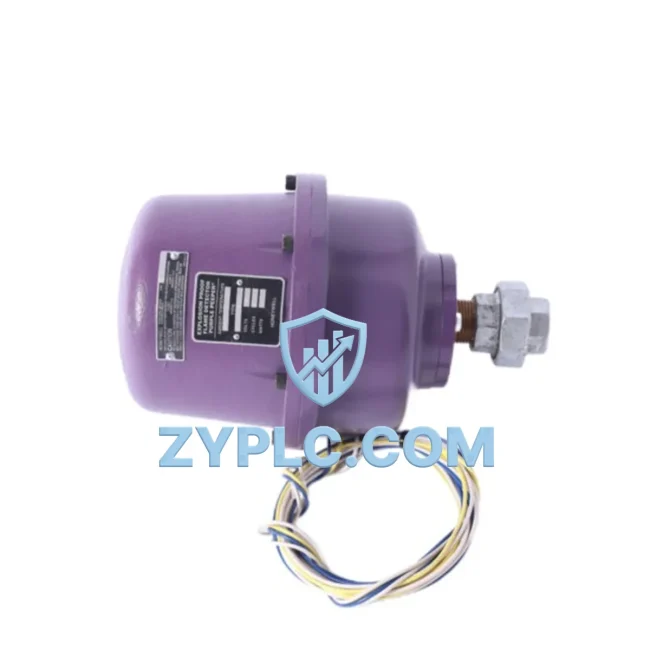

The Honeywell C7061F2001 is a self-checking ultraviolet (UV) flame detector engineered for demanding industrial combustion control and burner management applications. Designed to operate within the Honeywell C7061 Series flame sensing platform, this detector delivers reliable, real-time flame signal output that integrates seamlessly into modern industrial safety architectures — from field-level burner controllers to plant-wide SCADA and DCS systems. With its robust UV sensing technology, the C7061F2001 ensures continuous flame supervision, rapid fault detection, and uninterrupted data flow across the entire industrial safety network.

Compatibility & Integration Notes

Connected Automation Data Flow

In a modern smart factory or process plant, the Honeywell C7061F2001 UV flame detector sits at the very origin of the industrial safety data chain. Its UV sensing element continuously monitors the burner flame and transmits a real-time analog signal to a compatible flame amplifier — typically the Honeywell R7847 or R7849 Rectification Amplifier — which interprets the signal and drives the burner management relay logic.

This flame signal is then fed into a Honeywell RM7800L or RM7840L Burner Management Controller, which acts as the primary safety interlock node. The RM7800 series controller communicates upstream via Modbus RTU or PROFIBUS DP protocol — enabled through a Honeywell S7800A1001 Display Module or a dedicated protocol gateway — to the plant’s Distributed Control System (DCS), such as the Honeywell Experion PKS or a third-party DCS platform.

At the field network layer, the burner management data — including flame status, fault codes, and interlock states — is aggregated by an industrial Ethernet switch (e.g., a managed DIN-rail switch supporting PROFINET or EtherNet/IP) and transmitted to the SCADA server for real-time monitoring and alarm management. Operators at the HMI workstation — running platforms such as Honeywell’s Experion Station or a third-party SCADA/HMI — receive live flame status, burner cycle counts, and fault diagnostics without delay.

For facilities deploying remote I/O modules in distributed combustion zones, the C7061F2001 signal can be routed through a HART-to-Modbus gateway or a fieldbus coupler to consolidate multiple burner status signals onto a single industrial network segment. This architecture supports integration with safety PLCs (such as the Honeywell Safety Manager SC or a Siemens S7-300F safety controller) that enforce SIL-rated interlock logic across the entire combustion system.

Edge-level data from the C7061F2001 — including UV signal strength trends and self-check cycle results — can also be captured by an industrial edge gateway for predictive maintenance analytics, feeding into cloud-based or on-premise asset management platforms. This end-to-end data flow — from UV photon detection at the burner tip to real-time dashboard visualization at the control room — exemplifies the connectivity value of the Honeywell C7061F2001 in Industry 4.0 combustion safety networks.

Solving Data Isolation in Industrial Sites

Many industrial facilities operating legacy burner management systems face a common challenge: flame detection data remains isolated at the field device level, invisible to plant-wide SCADA, DCS, or MES platforms. The Honeywell C7061F2001, when integrated with modern protocol gateways and burner management controllers, directly addresses this data isolation problem.

Protocol Unification: The C7061F2001’s analog output is compatible with a wide range of flame amplifiers and burner controllers that support Modbus RTU, PROFIBUS DP, and HART communication. By deploying a protocol converter or fieldbus gateway between the burner controller and the plant network, facilities can bridge the gap between legacy flame detection hardware and modern industrial Ethernet architectures — eliminating protocol fragmentation across combustion zones.

Breaking Down Data Silos: Without network-connected flame detection, burner fault events are often recorded only locally — on paper logs or standalone HMI panels — making cross-plant analysis impossible. Integrating the C7061F2001 into a networked BMS architecture enables centralized alarm logging, historical trend analysis, and cross-burner performance benchmarking through the SCADA or DCS historian.

Remote Monitoring and Diagnostics: The self-checking feature of the C7061F2001 continuously validates the UV sensor’s integrity during operation. When this self-check data is transmitted upstream via the burner management controller’s communication interface, maintenance teams can monitor sensor health remotely — reducing unplanned shutdowns and enabling condition-based maintenance scheduling without requiring physical inspection of each burner.

Production Line Transparency: In multi-burner process plants — such as boiler houses, thermal oxidizers, or industrial furnaces — the C7061F2001 provides the foundational flame status data that enables production line transparency. Each burner’s flame state, fault history, and interlock status becomes visible at the SCADA level, supporting real-time production reporting and regulatory compliance documentation.

System Scalability: The C7061 series architecture supports scalable deployment across facilities of any size. Additional C7061F2001 detectors can be added to expand burner coverage without redesigning the network topology, making it an ideal choice for phased smart factory upgrades and greenfield combustion system designs alike.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell C7061F2001 support for SCADA integration?
The C7061F2001 itself outputs an analog UV flame signal to a compatible flame amplifier. SCADA integration is achieved through the upstream burner management controller (e.g., Honeywell RM7800 series), which supports Modbus RTU or PROFIBUS DP communication via add-on display and communication modules. A protocol gateway can further bridge this data to PROFINET, EtherNet/IP, or OPC-UA for DCS and SCADA connectivity.

Q2: How does the self-checking function affect network communication latency?
The C7061F2001’s self-checking cycle operates independently of the flame signal output path and does not introduce measurable latency into the burner management controller’s communication cycle. Flame status updates are transmitted to the SCADA/DCS in real time, with typical scan cycle times determined by the burner controller’s Modbus or PROFIBUS polling interval — generally under 100 milliseconds for standard configurations.

Q3: Is the Honeywell C7061F2001 compatible with SIL-rated safety PLC systems?
Yes. The C7061F2001 is designed for use within Honeywell’s SIL-capable burner management system architecture. When integrated with a SIL 2-rated burner management controller and a certified safety PLC (such as the Honeywell Safety Manager SC), the overall system can achieve the required Safety Integrity Level for combustion safety applications per IEC 61511 and EN 298 standards.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the C7061F2001?
All Honeywell C7061F2001 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing to verify UV sensing response, self-check operation, and output signal integrity before dispatch. RFQ-confirmed units are available for shipment arranged after confirmation, and our technical team provides full application support for system integration and commissioning.
