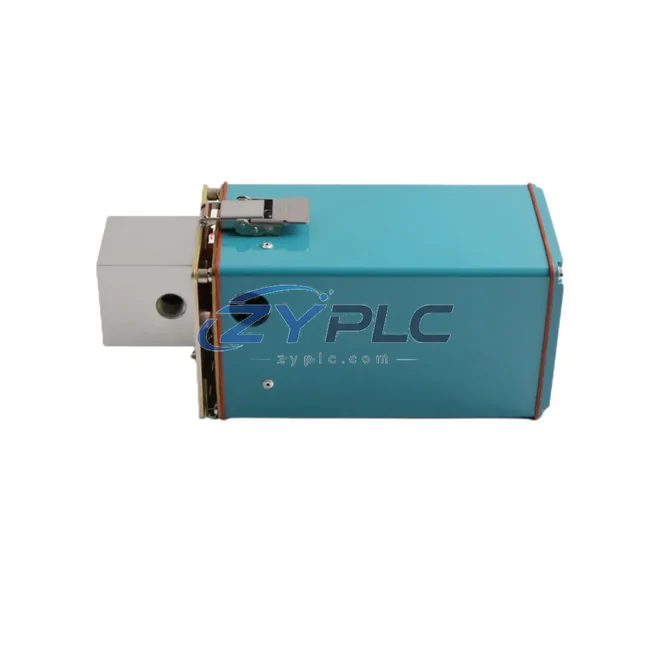

Honeywell C7076A1015 UV Flame Detector for Burner Control

Honeywell C7076A1015 UV Flame Detector for Burner

In modern industrial combustion and burner management systems, flame supervision is not a standalone function — it is a critical node within a layered control architecture that spans the control layer, I/O layer, network layer, power layer, human-machine interface layer, and actuator layer. The Honeywell C7076A1015 UV Flame Detector is engineered to fulfill this role with precision, providing reliable ultraviolet flame sensing that integrates seamlessly into complete burner control system designs across power generation, petrochemical processing, industrial heating, and process manufacturing environments.

Unlike generic sensing components, the C7076A1015 is purpose-built for system integration within Honeywell’s burner management ecosystem. It operates as a direct input device to flame amplifiers and burner controllers such as the Honeywell R7847A1082 Rectification Flame Amplifier and the Honeywell RM7800L1087 Burner Controller, forming a tightly coupled signal chain from flame detection through logic processing to fuel valve actuation. This architecture ensures that flame-on and flame-off signals are processed with the deterministic timing required by NFPA 85 and EN 746-2 safety standards.

Product Specification Table

System Compatibility Notes

The C7076A1015 achieves its full operational value when deployed within a coordinated burner management architecture. At the control layer, the Honeywell RM7800L1087 Burner Controller or RM7840L1018 Integrated Burner Controller serves as the primary logic processor, receiving flame status signals from the C7076A1015 via a compatible flame amplifier such as the R7847A1082 Rectification Flame Amplifier or the R7849A1023 UV Flame Amplifier. These amplifier modules translate the raw UV sensor output into a standardized relay signal that the burner controller can act upon within its safety interlock sequence.

At the I/O and signal conditioning layer, the flame signal is typically wired through terminal blocks and marshalling panels before reaching the burner controller’s input terminals. In larger distributed control architectures, the burner management system may interface with a Honeywell HC900 Process Controller or an Experion PKS DCS platform via hardwired safety I/O modules, enabling supervisory monitoring of flame status across multiple burner zones from a centralized control room.

At the power layer, the C7076A1015 and its associated flame amplifier are typically powered from a dedicated 120 VAC instrument power distribution panel, often protected by a Honeywell or third-party UPS module to ensure continuous flame supervision during power transients. Redundant power feeds are recommended in critical combustion applications such as utility boilers and process furnaces.

At the human-machine interface layer, flame status, fault codes, and burner sequencing data are displayed on operator workstations running Honeywell’s Experion Station software or on panel-mounted HMI terminals connected to the RM7800 series controller via RS-485 or Modbus RTU communication links. This visibility allows operators to monitor flame health in real time and respond immediately to nuisance trips or genuine flame failures.

At the actuator layer, the burner controller’s output relays drive fuel shutoff valves, ignition transformers, and combustion air damper actuators in a precisely sequenced purge-ignition-run-shutdown cycle. The C7076A1015’s fast UV response time ensures that fuel valve closure commands are issued within the safety time limits defined by the burner management program, preventing unburned fuel accumulation and the risk of furnace explosion.

This complete signal chain — from UV flame sensing through amplification, logic processing, supervisory monitoring, and actuator control — demonstrates why the C7076A1015 is not simply a sensor but a foundational element of a safe, reliable, and maintainable burner control architecture.

Industrial Application Notes

The Honeywell C7076A1015 UV Flame Detector is deployed across a wide range of industrial combustion applications where reliable flame supervision is a regulatory and operational requirement.

In power generation facilities, the C7076A1015 is installed on coal, gas, and oil-fired utility boilers to provide continuous UV flame monitoring across multiple burner elevations. Its compatibility with the RM7840 Integrated Burner Controller enables coordinated multi-burner management with individual flame supervision per burner, supporting NFPA 85 Boiler and Combustion Systems Hazards Code compliance.

In petrochemical and refinery environments, the detector is used on process heaters, reformer furnaces, and fired reboilers where flame failure in a high-temperature, high-pressure environment carries significant safety and production risk. The C7076A1015’s UV-only sensing technology eliminates false flame signals from hot refractory surfaces, ensuring that the burner management system responds only to genuine combustion events.

In industrial heating and heat treatment applications — including annealing furnaces, tempering ovens, and rotary kilns — the C7076A1015 provides the flame supervision input required by EN 746-2 Industrial Thermoprocessing Equipment safety standards, enabling CE-marked burner management system designs.

In water treatment and municipal utility plants, the detector supports reliable operation of hot water boilers and thermal oxidizers used in sludge processing, where continuous flame supervision is essential for both safety and environmental compliance.

Across all these applications, the C7076A1015’s robust NEMA 4X enclosure, wide operating temperature range, and proven UV sensing technology make it a preferred choice for engineers designing burner management systems that must operate reliably over decades of continuous service with minimal maintenance intervention.

Product Compatibility FAQ

Q1: Which flame amplifiers are compatible with the Honeywell C7076A1015, and how does the amplifier selection affect system architecture?
The C7076A1015 is compatible with Honeywell UV flame amplifiers including the R7849A1023 UV Flame Amplifier and the R7851A1023 UV/IR Flame Amplifier. The amplifier selection determines the signal conditioning characteristics and the type of burner controller the system can interface with. For new installations using the RM7800 or RM7840 series controllers, the R7849A1023 is the standard pairing. For retrofit applications on older RM7890 or R4795 series controllers, compatibility should be verified against the specific controller’s amplifier socket type before installation.

Q2: Can the C7076A1015 be used in a redundant flame supervision architecture, and what additional components are required?
Yes. In safety-critical applications such as utility boilers and process furnaces, dual-detector redundant flame supervision architectures are achievable using two C7076A1015 detectors mounted at different sight angles on the same burner, each connected to an independent flame amplifier channel within a dual-input burner controller or safety PLC. This configuration provides 1oo2 (one-out-of-two) or 2oo2 voting logic for flame status, significantly reducing the probability of dangerous failure on demand. System architects should consult Honeywell’s burner management application engineering guidelines and the applicable functional safety standard (IEC 61511 for process industries) when designing redundant flame supervision systems.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning for burner management systems?
Our warranty terms confirmed during quotation covers the C7076A1015 UV Flame Detector against defects in materials and workmanship from the date of shipment. Every unit is tested and verified before dispatch to confirm UV sensing response, electrical continuity, and enclosure integrity. For maintenance engineers managing burner management system spare parts inventories, this warranty provides assurance that stocked replacement detectors will perform to specification when needed. We recommend maintaining at least one spare C7076A1015 per burner management panel as part of a proactive maintenance strategy, particularly in facilities where burner downtime carries significant production or safety consequences.
