Honeywell CC-PAIX02 – Industrial Data Link and Smart Factory Connectivity for Experion PKS Systems

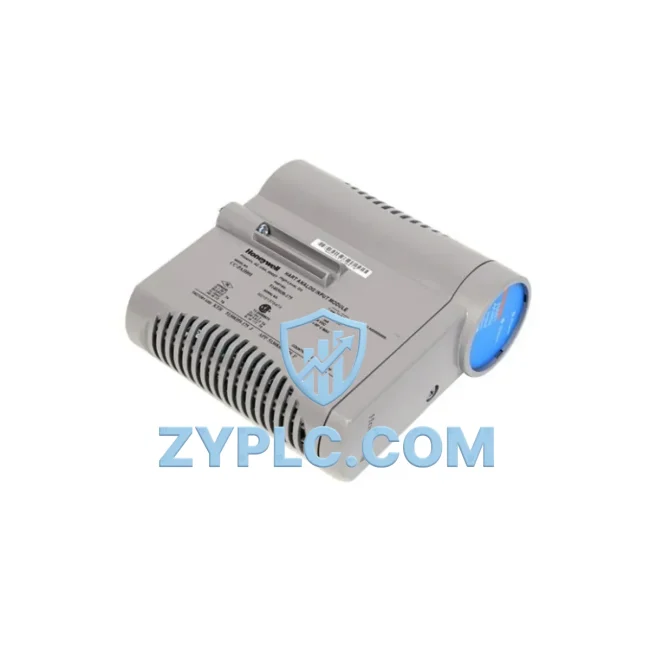

In modern industrial automation, the integrity of the data link between field instruments, distributed control systems, and supervisory platforms determines the operational efficiency of the entire plant. The Honeywell CC-PAIX02 Analog Input Module is engineered as a precision signal acquisition node within the Experion PKS (Process Knowledge System) architecture — a platform trusted across refining, petrochemical, power generation, pharmaceutical, and advanced manufacturing environments worldwide. Rather than functioning as a standalone component, the CC-PAIX02 occupies a critical position in the layered automation hierarchy: it bridges the physical process layer with the control and supervisory layers, enabling real-time data transparency, contextual integration, and system-wide decision intelligence.

The CC-PAIX02 is designed to accept standard analog input signals — typically 4–20 mA and voltage-based transmitter outputs — and convert them into high-fidelity digital values that the Experion PKS controller can process, trend, alarm, and transmit upstream to SCADA and MES platforms. Its role in the data chain begins at the field device level: pressure transmitters, flow meters, temperature sensors, and level instruments feed their process variables directly into the CC-PAIX02 input channels. From there, the module communicates over the Experion PKS C300 controller backplane, ensuring deterministic, low-latency data delivery to the control execution engine.

Within a fully integrated Experion PKS cabinet, the CC-PAIX02 operates alongside complementary I/O modules such as the CC-PAOH01 Analog Output Module and the CC-PDIL01 Digital Input Module, forming a cohesive I/O subsystem that handles both process feedback and control actuation. The C300 Controller serves as the central processing node, coordinating data from all I/O modules and executing regulatory, advanced, and safety control strategies. For applications requiring high-availability architectures, the CC-PAIX02 is compatible with redundant controller configurations, where a standby C300 mirrors the primary controller state and assumes control seamlessly in the event of a fault — a capability essential in continuous process industries where unplanned shutdowns carry significant financial and safety consequences.

Network connectivity within the Experion PKS ecosystem extends beyond the controller backplane. The ENET-2 Ethernet Interface Module and FTE (Fault Tolerant Ethernet) infrastructure provide the communication backbone that links field controllers to the Experion PKS server, operator stations, and engineering workstations. This dual-ring Ethernet topology ensures that a single cable or switch failure does not interrupt process data flow — a design principle that directly supports the 24/7 operational demands of oil and gas, chemical, and power utility facilities. The CC-PAIX02’s data, once processed by the C300, travels across this FTE network to the Experion PKS server, where it becomes available to Experion HMI displays, historian databases, and third-party SCADA systems via OPC-DA or OPC-UA interfaces.

For plants integrating legacy field devices or third-party instrumentation, the Experion PKS architecture supports protocol gateways and serial communication modules such as the CC-SCMB01 Serial Communication Module, which enables MODBUS RTU and ASCII device integration alongside the native Experion I/O. This contextual integration capability means that the CC-PAIX02 does not operate in isolation — it participates in a unified data environment where analog process values, digital status signals, and serial device data are all normalized and presented consistently to operators and control algorithms.

Remote diagnostics and predictive maintenance are increasingly central to smart factory strategies, and the CC-PAIX02 supports these objectives through the Experion PKS asset management framework. Channel-level diagnostics — including open-wire detection, over-range and under-range alerts, and module health status — are surfaced directly in the Experion operator interface and can be forwarded to Honeywell’s Asset Manager or third-party CMMS platforms. This visibility reduces mean time to repair (MTTR) and enables maintenance teams to address instrumentation issues before they escalate into process upsets or unplanned outages.

In distributed plant architectures, the CC-PAIX02 may be deployed in remote I/O enclosures located close to the process equipment, connected back to the main control room via IOLIM (I/O Link Interface Module) or fiber-optic extended I/O links. This topology minimizes field wiring costs, reduces signal degradation over long cable runs, and supports modular plant expansion — a key advantage when production capacity is scaled incrementally. The module’s DIN-rail compatible mounting and standard Experion PKS form factor ensure that adding additional CC-PAIX02 modules to an existing cabinet requires no structural modification, only backplane slot availability and controller I/O capacity.

From an inventory and supply chain perspective, ZYPLC maintains verified stock of the CC-PAIX02 alongside related Experion PKS components, supporting both planned maintenance shutdowns and emergency replacement scenarios. All units are subject to pre-shipment functional testing, and each module is covered by a 12-Month Warranty from the date of delivery — providing procurement teams and plant engineers with the confidence to specify ZYPLC-sourced components in critical infrastructure projects.

Network Communication Table

Connected Automation Data Flow

A complete Experion PKS data flow begins at the field instrument layer, where devices such as Rosemount 3051 pressure transmitters, Yokogawa EJA series differential pressure sensors, and Endress+Hauser Promag electromagnetic flow meters generate 4–20 mA analog signals. These signals are wired directly to the CC-PAIX02 input channels, which digitize and validate the process values before passing them to the C300 Controller over the high-speed backplane bus.

The C300 executes control strategies — PID loops, cascade control, ratio control, and advanced regulatory schemes — using the real-time data supplied by the CC-PAIX02 and its sibling modules. Control outputs are dispatched through the CC-PAOH01 Analog Output Module to final control elements such as control valves and variable frequency drives, closing the control loop. Digital status signals from motor starters, valve position switches, and safety interlocks are handled by the CC-PDIL01 Digital Input Module, which operates in parallel within the same I/O cabinet.

Above the controller layer, the ENET-2 Ethernet Interface Module connects the C300 to the plant’s FTE network — a dual-ring, fault-tolerant Ethernet infrastructure that links all controllers, the Experion PKS server, and operator workstations. Operators interact with the process through Experion HMI displays, where CC-PAIX02 channel data appears as real-time trends, faceplates, and alarm banners. For plants with legacy MODBUS devices, the CC-SCMB01 Serial Communication Module integrates these devices into the same unified data environment, eliminating data silos between modern and legacy instrumentation.

At the supervisory level, the Experion PKS server aggregates all process data and makes it available to Honeywell’s PHD Historian for long-term trending and reporting, and to third-party MES or ERP systems via OPC-UA. Edge computing nodes and industrial IoT gateways can subscribe to this OPC-UA data stream, enabling cloud-based analytics, AI-driven predictive maintenance, and digital twin applications — extending the value of the CC-PAIX02’s signal acquisition capability far beyond the control room.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of process data across incompatible systems, protocols, and generations of equipment. Plants that have evolved over decades often operate with a mixture of Experion PKS, legacy TDC 3000, third-party PLCs, and standalone SCADA systems — each maintaining its own data silo and requiring separate operator interfaces and maintenance procedures.

The CC-PAIX02, as part of the Experion PKS I/O architecture, directly addresses this fragmentation by providing a standardized, high-integrity analog input channel that feeds into a unified control and data platform. When combined with Experion PKS’s native OPC-UA server capability and protocol gateway modules, the CC-PAIX02’s data becomes accessible to any supervisory system capable of consuming OPC-UA — breaking down the barriers between control system islands and enabling plant-wide data transparency.

For remote monitoring applications — offshore platforms, pipeline stations, water treatment facilities, and distributed power substations — the Experion PKS architecture supports remote I/O extensions via fiber-optic links and IOLIM modules, allowing CC-PAIX02 modules to be deployed at the process equipment location while control and monitoring remain centralized. This topology eliminates the need for long analog signal cable runs, reduces susceptibility to electrical noise and ground loops, and supports incremental plant expansion without redesigning the control system architecture.

Production line transparency — the ability to see real-time process values, equipment status, and alarm conditions across the entire plant from a single operator interface — is a foundational requirement of smart factory initiatives. The CC-PAIX02 contributes to this transparency by ensuring that every analog process variable it monitors is accurately digitized, validated, and made available to the Experion PKS platform’s visualization, alarming, and reporting tools. When integrated with Honeywell’s Asset Manager and third-party CMMS platforms, the module’s diagnostic data further supports condition-based maintenance strategies, reducing reliance on time-based maintenance schedules and lowering overall maintenance costs.

Industrial Connectivity FAQ

Q1: Is the CC-PAIX02 compatible with all versions of the Experion PKS platform?
The CC-PAIX02 is designed for use with Experion PKS R400 and later releases, in conjunction with the C300 Controller. Compatibility with earlier Experion releases or TDC 3000 systems should be verified against Honeywell’s system compatibility matrices. ZYPLC’s technical team can assist with compatibility verification prior to procurement.

Q2: Does the CC-PAIX02 support redundant configurations, and how does failover affect data continuity?
Yes. When deployed with a redundant C300 controller pair, the CC-PAIX02 continues to supply analog input data without interruption during a controller failover event. The standby C300 maintains a synchronized copy of all I/O data, and switchover is transparent to the control strategy and operator interface — ensuring no data loss or process upset during the transition.

Q3: What network protocols does the Experion PKS system support for SCADA and third-party integration?
The Experion PKS platform natively supports OPC-DA and OPC-UA for integration with third-party SCADA, MES, and ERP systems. MODBUS TCP/IP and serial MODBUS RTU are supported via gateway modules such as the CC-SCMB01. FTE (Fault Tolerant Ethernet) is used for internal controller-to-server communication, providing deterministic, high-availability network performance.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the CC-PAIX02?
All CC-PAIX02 modules supplied by ZYPLC are covered by a 12-Month Warranty from the date of delivery. Each unit undergoes pre-shipment functional testing to verify channel integrity, communication capability, and module health status before dispatch. Expedited shipping via DHL or FedEx is available for urgent replacement requirements, with global delivery to major industrial regions.
