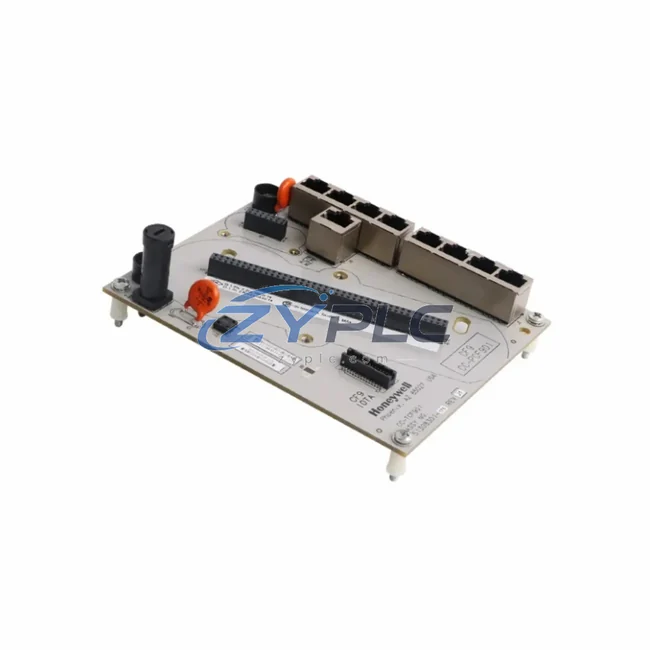

Honeywell CC-PCF901 Control for Experion

Honeywell CC-PCF901 CC-TCF901 Control Module for Experion PKS

The Honeywell CC-PCF901 and its companion termination module CC-TCF901 are purpose-built control infrastructure components for the Experion PKS distributed control system platform. Together, they form a foundational layer of the C-series I/O subsystem, enabling reliable signal routing, structured field termination, and seamless system integration across the full control hierarchy — from field instrumentation through to the operator station and enterprise data layer.

In modern industrial automation, the integrity of a control system depends not only on the processing power of the controller but on the quality and consistency of every interconnection point within the architecture. The CC-PCF901 carrier and CC-TCF901 termination assembly address this requirement directly, providing a mechanically robust, electrically stable mounting and wiring interface for Experion PKS I/O modules. Their design eliminates field wiring errors, reduces commissioning time, and supports long-term maintainability — three factors that directly determine the total cost of ownership of any DCS installation.

Product Specification Table

System Compatibility Notes

The CC-PCF901 carrier module is the physical backbone of the Experion PKS I/O subsystem. It provides the mechanical housing and backplane electrical connections that allow C-series I/O modules — including the CC-PAON01 analog output module, the CC-PAIN01 analog input module, the CC-PDOB01 digital output module, and the CC-PDIB01 digital input module — to be installed, removed, and replaced without disturbing field wiring. This plug-and-play architecture is fundamental to minimizing mean time to repair (MTTR) in live production environments.

The CC-TCF901 termination module pairs directly with the CC-PCF901 to provide the field-side wiring interface. By separating the termination point from the I/O module itself, the CC-TCF901 allows field cables to remain permanently connected during module replacement — a critical advantage in continuous process plants where disconnecting field wiring introduces risk of process upset, instrument damage, or safety interlock activation. This design philosophy aligns with the Experion PKS redundancy architecture, where the C300 Process Controller maintains control continuity even during I/O module hot-swap operations.

At the network layer, the CC-PCF901 assembly communicates with the C300 via the CIOM-A I/O Link, a high-speed, deterministic backplane bus that ensures scan-cycle consistency across all installed I/O modules. This link feeds into the Honeywell FTE (Fault Tolerant Ethernet) network, which provides dual-path, redundant communication between controllers, I/O subsystems, and the Experion Server. The result is a communication architecture that tolerates single-point network failures without interrupting process control — a requirement in safety-critical applications such as power generation, refinery operations, and pharmaceutical batch processing.

For human-machine interface integration, process data collected through the CC-PCF901 I/O assembly is presented to operators via the Honeywell Experion Station or Experion Orion Console, where real-time process graphics, alarm management, and trend displays provide full situational awareness. At the data historian layer, the Uniformance PHD platform archives all I/O channel data for long-term process analysis, regulatory compliance reporting, and predictive maintenance trending. The Uniformance Insight analytics layer further enables engineering teams to correlate I/O signal behavior with equipment performance metrics — identifying drift, degradation, or calibration issues before they escalate to unplanned shutdowns.

Power distribution to the CC-PCF901 assembly is managed through the Experion PKS Power Distribution Module (PDM), which provides regulated 24 VDC to the backplane and monitors supply health in real time. In redundant power configurations, dual PDMs ensure that a single power supply failure does not interrupt I/O scanning or control execution. This power architecture, combined with the CC-PCF901’s robust mechanical design, supports continuous operation in demanding industrial environments including offshore platforms, chemical plants, and high-vibration manufacturing facilities.

Industrial Application Notes

In refinery and petrochemical applications, the CC-PCF901 and CC-TCF901 are deployed in marshalling cabinets where hundreds of field instrument signals — pressure transmitters, temperature elements, flow meters, and control valve positioners — are terminated and routed to the Experion PKS control system. The structured termination approach of the CC-TCF901 reduces wiring errors during initial commissioning and simplifies loop testing, as each channel can be individually verified without disturbing adjacent circuits. This is particularly valuable in large-scale projects where commissioning schedules are compressed and loop count is high.

In power generation facilities, the CC-PCF901 assembly supports turbine control, boiler management, and balance-of-plant automation within a unified Experion PKS architecture. The ability to hot-swap I/O modules without process interruption is critical in baseload power plants where scheduled outages are infrequent and unplanned downtime carries significant financial and grid-stability consequences. The warranty terms confirmed during quotation provided by ZYPLC on all CC-PCF901 and CC-TCF901 units gives plant maintenance teams confidence in spare parts quality and reduces the risk of premature module failure during the warranty period.

In water and wastewater treatment plants, the CC-PCF901 is used in pump station control, chemical dosing systems, and filtration process automation. The modular I/O architecture allows treatment plant operators to expand control system capacity as new process units are commissioned, without requiring changes to the existing controller or network infrastructure. In mining and minerals processing, the same expandability supports the integration of new crushing, grinding, and flotation circuits into an existing Experion PKS control system — protecting the capital investment in the original DCS installation while accommodating process growth.

For packaging and discrete manufacturing lines, the CC-PCF901 provides the I/O density and signal integrity required to manage high-speed conveyor systems, robotic pick-and-place stations, and vision inspection systems within a process-oriented DCS framework. While PLCs are more common in pure discrete applications, the Experion PKS platform with CC-PCF901 I/O is increasingly selected for hybrid manufacturing environments where continuous process control and discrete machine control must coexist within a single automation architecture.

ZYPLC maintains verified inventory of the CC-PCF901 and CC-TCF901, with each unit undergoing mechanical inspection, backplane connectivity verification, and electrical continuity testing prior to shipment. Units are shipped within 1–3 business days and are covered by a warranty terms confirmed during quotation from the date of shipment, ensuring that procurement and maintenance teams can plan spare parts strategies with confidence.

Product Compatibility FAQ

Q1: Is the CC-PCF901 compatible with all Experion PKS C-series I/O modules, and can it be used in a redundant I/O configuration?
Yes. The CC-PCF901 carrier is designed to accept the full range of Honeywell Experion PKS C-series I/O modules, including analog input, analog output, digital input, and digital output variants. In redundant I/O configurations, paired carriers and modules are supported by the C300 controller’s redundancy management, which automatically switches to the standby I/O path in the event of a module or carrier fault. Compatibility with specific module revisions should be confirmed against the Experion PKS hardware compatibility matrix for your system release.

Q2: How does the CC-TCF901 termination module simplify long-term maintenance and module replacement?
The CC-TCF901 separates field wiring termination from the I/O module itself, meaning that when a module requires replacement, field cables remain connected to the CC-TCF901 and do not need to be disturbed. The replacement I/O module is inserted into the CC-PCF901 carrier, automatically downloads its configuration from the C300 controller, and resumes normal operation within seconds. This design eliminates the risk of wiring errors during module replacement and significantly reduces the time required to restore a faulted I/O channel to service.

Q3: What warranty and pre-shipment testing does ZYPLC provide for the CC-PCF901 and CC-TCF901?
All CC-PCF901 and CC-TCF901 units supplied by ZYPLC undergo a multi-stage inspection process including mechanical integrity verification, backplane connector inspection, electrical continuity testing, and functional compatibility checks. Units that do not meet Honeywell’s original hardware specifications are quarantined and not shipped. Every unit is covered by a warranty terms confirmed during quotation from the date of shipment, covering defects in materials and workmanship. ZYPLC ships availability confirmed by RFQ units within 1–3 business days to minimize system downtime for customers requiring urgent replacements.
