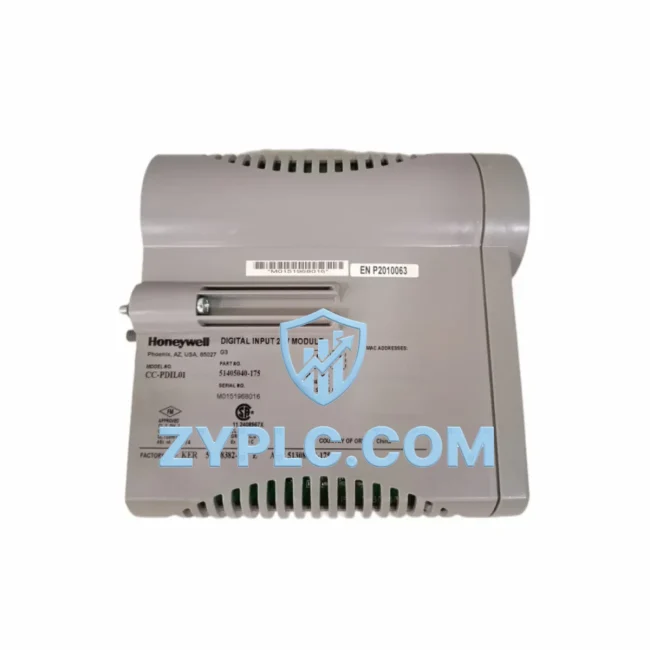

Honeywell CC-PDIL01 51405040-175 Industrial Network Interface for C300 Systems

Honeywell CC-PDIL01 51405040-175: Industrial Data Link for C300 Smart Factory Systems

The Honeywell CC-PDIL01 (Part No. 51405040-175) is a high-integrity Digital Input Module engineered for the Honeywell Experion PKS C300 Distributed Control System (DCS). Designed to serve as a critical node in the industrial data chain, this module bridges field-level signal acquisition with upper-layer control, monitoring, and analytics platforms. Whether deployed in oil & gas, chemical processing, power generation, or advanced manufacturing, the CC-PDIL01 delivers deterministic digital signal capture, seamless protocol integration, and robust network communication across every layer of the automation hierarchy.

In a modern smart factory, data integrity begins at the field device level. The CC-PDIL01 collects discrete digital signals from limit switches, proximity sensors, valve position feedback, motor run/stop status, and safety interlock outputs. These signals are transmitted in real time through the Honeywell FTE (Fault Tolerant Ethernet) backbone to the C300 Controller, where they are processed, logged, and made available to SCADA systems, historian databases, and HMI operator stations. This unbroken data flow — from sensor to screen — is the foundation of transparent, responsive industrial operations.

Network Communication Table

Connected Automation Data Flow

The CC-PDIL01 sits at the heart of a layered industrial communication architecture. At the field level, digital signals from devices such as Honeywell STT850 Smart Temperature Transmitters, pressure switches, and motor control center (MCC) auxiliary contacts are wired directly into the module’s input channels. The module digitizes these signals and encapsulates them into FTE Ethernet frames, transmitting status data upstream to the Honeywell C300 Controller — the computational core of the Experion PKS platform.

The C300 Controller processes the incoming digital states against configured control strategies and interlock logic. Alarm conditions — such as a high-level switch trip or an emergency shutdown (ESD) signal — are immediately propagated to the Honeywell Experion PKS Operator Station (HMI), where operators receive real-time visual and audible alerts. Simultaneously, the same data is archived by the Honeywell Uniformance PHD Historian, enabling trend analysis, compliance reporting, and post-event investigation.

For facilities running hybrid architectures, the CC-PDIL01 integrates alongside Honeywell CC-PAIM01 Analog Input Modules and CC-PDOB01 Digital Output Modules within the same C300 I/O chassis, creating a unified, high-density I/O subsystem. Remote I/O expansion is supported through Honeywell IOLIM (I/O Link Interface Modules), extending the data acquisition reach to distant field junction boxes without additional controller hardware.

At the network layer, the FTE switch infrastructure — typically built on Honeywell FSC (Fail-Safe Controller) compatible managed switches or third-party industrial Ethernet switches with PROFINET/EtherNet/IP passthrough — ensures that the CC-PDIL01’s data reaches both the DCS control layer and the plant-wide SCADA network. Integration with Honeywell Experion SCADA or third-party SCADA platforms via OPC-UA gateways allows enterprise-level visibility into every digital input point managed by this module.

In drive-intensive applications, digital feedback signals from Honeywell or third-party Variable Frequency Drives (VFDs) — such as run confirmation, fault status, and speed-at-setpoint signals — are captured by the CC-PDIL01 and relayed to the C300 for closed-loop process control. Edge computing nodes and industrial IoT gateways can subscribe to this data stream via OPC-UA, enabling predictive maintenance algorithms and AI-driven anomaly detection at the plant edge.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is data isolation — the inability to move process information freely between field devices, controllers, and enterprise systems. The Honeywell CC-PDIL01 51405040-175 directly addresses this challenge through its native integration with the Experion PKS FTE network, which provides a single, unified communication backbone for all C300 I/O modules.

In plants where older hardwired relay logic coexists with modern DCS infrastructure, the CC-PDIL01 acts as the digital bridge, converting discrete field signals into structured, network-addressable data points. This eliminates the need for separate signal conditioning panels and reduces wiring complexity, while simultaneously making every input point visible to SCADA dashboards, historian databases, and remote diagnostic tools.

Remote monitoring and diagnostics are fully supported through the Experion PKS platform. Maintenance engineers can interrogate the health status of the CC-PDIL01 — including channel diagnostics, communication link status, and module firmware version — from any Experion workstation on the FTE network, without requiring physical access to the field cabinet. This capability is essential for facilities with geographically distributed process units or unmanned remote stations.

Production line transparency is achieved by mapping every CC-PDIL01 input channel to a named process tag in the Experion database. These tags are accessible to MES (Manufacturing Execution Systems), ERP integrations, and cloud analytics platforms, enabling real-time OEE (Overall Equipment Effectiveness) calculations, shift production reports, and digital twin synchronization. The result is a fully connected, data-transparent production environment where no signal is stranded and no event goes unrecorded.

System scalability is inherent to the C300 architecture. Additional CC-PDIL01 modules can be added to existing I/O chassis without controller reconfiguration, and the FTE network supports ring topology expansion to accommodate new process areas. This makes the CC-PDIL01 a future-proof investment for plants undergoing phased digital transformation.

Industrial Connectivity FAQ

Q1: What communication protocol does the Honeywell CC-PDIL01 51405040-175 use, and is it compatible with third-party SCADA systems?
The CC-PDIL01 communicates natively over Honeywell’s Fault Tolerant Ethernet (FTE) protocol within the Experion PKS C300 DCS environment. For third-party SCADA integration, the Experion PKS platform supports OPC-DA and OPC-UA server interfaces, allowing any OPC-compliant SCADA or historian system to subscribe to data from the CC-PDIL01’s input channels without protocol conversion hardware.

Q2: How does the CC-PDIL01 ensure network stability and minimize communication latency in critical process applications?
The module leverages Honeywell’s dual-redundant FTE Ethernet backbone, which provides automatic path failover in the event of a cable fault or switch failure. Switchover time is sub-second, ensuring that digital input data remains continuously available to the C300 Controller and upstream SCADA systems. The deterministic Ethernet architecture eliminates the variable latency associated with standard IT networks, making the CC-PDIL01 suitable for safety-instrumented and time-critical control loops.

Q3: Can the CC-PDIL01 be expanded or integrated into a larger C300 system without replacing existing hardware?
Yes. The CC-PDIL01 is fully hot-swappable within a powered C300 I/O chassis, and additional modules can be added to expand digital input capacity without shutting down the controller or interrupting ongoing process control. The FTE network supports ring topology expansion, allowing new I/O chassis and process areas to be connected to the existing DCS infrastructure incrementally, protecting the original capital investment.

Q4: What quality assurance and warranty coverage is provided with the CC-PDIL01 51405040-175?
Every CC-PDIL01 unit supplied by ZYPLC undergoes pre-shipment functional testing, including channel-by-channel digital input verification, FTE communication link validation, and firmware integrity checks. All units are covered by a 12-month warranty against manufacturing defects and communication failures. Fast global shipping via DHL and FedEx Express ensures rapid delivery to minimize plant downtime. For stock availability and pricing, contact our team directly.
