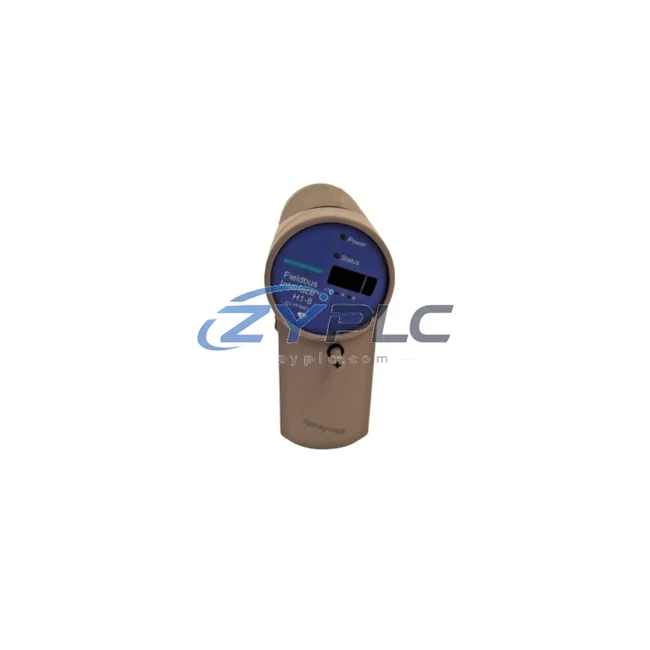

Honeywell CC-PFB801 Fieldbus Interface for C300

Honeywell CC-PFB801 Fieldbus Interface for C300

The Honeywell CC-PFB801 (part number 51410087-175) is a FOUNDATION Fieldbus H1 Interface Module purpose-built for integration within the Honeywell Experion PKS C300 distributed control system architecture. Rather than functioning as a standalone device, the CC-PFB801 occupies a critical position within the multi-layer automation hierarchy — bridging the field instrument layer and the controller layer with deterministic, high-integrity digital communication. In modern process automation environments, where system consistency, signal fidelity, and long-term maintainability are paramount, the CC-PFB801 delivers the system integration capability that engineers and plant operators depend on across the full lifecycle of a control system.

Deployed across industries including oil and gas, petrochemical refining, power generation, water treatment, pharmaceutical manufacturing, and metals processing, the CC-PFB801 enables the C300 controller to communicate natively with FOUNDATION Fieldbus-compliant field devices — including smart transmitters, control valves, and analytical instruments — without the need for intermediate signal converters or protocol gateways. This direct digital integration eliminates analog signal degradation, reduces wiring complexity, and supports advanced diagnostics that are simply not achievable with conventional 4–20 mA loops.

Within the Experion PKS architecture, the CC-PFB801 is installed into the Series C I/O chassis alongside the C300 Controller Module (CC-PCNT01 or CC-PCNT02), sharing the same backplane infrastructure. This co-location within the controller cabinet ensures minimal latency between fieldbus segment data and the control execution engine. Engineers designing redundant control architectures can pair the CC-PFB801 with redundant C300 controller pairs, ensuring that fieldbus segment communication is maintained even during controller switchover events — a critical requirement in continuous process plants where unplanned shutdowns carry significant operational and safety consequences.

The module supports up to 16 FOUNDATION Fieldbus H1 devices per segment, operating at the standard 31.25 kbps H1 data rate. Each segment is electrically isolated, protecting both the controller backplane and connected field instruments from ground loops and transient voltage events. The CC-PFB801 integrates seamlessly with Honeywell’s Fieldbus Device Manager (FDM) software, enabling online device commissioning, parameter configuration, and predictive maintenance diagnostics from the Experion operator station — without requiring physical access to the field junction box.

Product Specification Table

System Compatibility Notes

The CC-PFB801 does not operate in isolation — its value is fully realized when considered within the broader Experion PKS C300 system architecture. At the controller layer, the CC-PCNT01 C300 Controller Module serves as the primary execution engine, processing control strategies that receive real-time process data from fieldbus-connected instruments via the CC-PFB801. In redundant configurations, a secondary CC-PCNT02 Redundant C300 Controller operates in hot-standby mode, with the CC-PFB801 maintaining fieldbus segment continuity during any controller failover event.

At the I/O layer, the CC-PFB801 coexists within the same Series C chassis alongside conventional I/O modules such as the CC-PAIX01 Analog Input Module and CC-PDOB01 Digital Output Module, allowing engineers to design hybrid architectures that combine FOUNDATION Fieldbus segments with traditional hardwired I/O on a single backplane. The CC-SCMB01 Series C Main Backplane provides the physical and electrical backbone for this integration, supporting up to 10 I/O module slots per chassis.

At the power layer, the CC-PWR001 Power Supply Module delivers regulated 24 VDC to the Series C chassis, ensuring stable operating voltage for the CC-PFB801 and all co-installed modules. In high-availability plant designs, dual redundant power supplies are deployed to eliminate single points of failure at the power distribution level.

At the network and communication layer, the C300 system connects to the Experion PKS supervisory network via the CC-TCF901 FTE (Fault Tolerant Ethernet) Interface, enabling the operator station and engineering workstation to receive real-time fieldbus device data, alarm states, and diagnostic information. The FTE architecture provides dual-path Ethernet redundancy, ensuring that network faults do not interrupt process visibility or control execution.

At the human-machine interface layer, Honeywell Experion Operator Stations running the Experion PKS HMI software display live process values sourced directly from FOUNDATION Fieldbus instruments connected through the CC-PFB801. Engineers can access the Honeywell FDM (Fieldbus Device Manager) from the same workstation environment to perform online device parameterization, calibration verification, and predictive maintenance scheduling — all without interrupting the running process.

At the field instrument layer, the CC-PFB801 segment typically hosts a combination of FF-H1 smart pressure transmitters, FF-H1 temperature transmitters, and FF-H1 valve positioners from manufacturers such as Yokogawa, Emerson, and Endress+Hauser. The module’s segment-level isolation ensures that a fault on one instrument does not propagate to the controller backplane or affect other segments within the same chassis.

Industrial Application Notes

Petrochemical and Refining: In continuous distillation and reaction control applications, the CC-PFB801 enables direct digital communication with FF-H1 pressure, temperature, and flow transmitters distributed across process units. The elimination of analog signal conversion reduces measurement uncertainty and supports tighter control loop performance — critical in high-value separation processes where product quality specifications are narrow.

Power Generation: In combined-cycle and coal-fired power plants, the CC-PFB801 integrates with the C300 controller to manage boiler instrumentation, turbine auxiliary systems, and balance-of-plant I/O. The module’s support for online diagnostics via FDM allows maintenance teams to identify instrument drift or communication degradation before it affects generation output.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities deploy the CC-PFB801 within Experion PKS systems to manage dosing control, filtration monitoring, and effluent quality measurement. The digital fieldbus architecture reduces the total installed wiring cost compared to conventional 4–20 mA designs, particularly in geographically distributed plant layouts.

Mining and Metals Processing: In ore processing and smelting operations, the CC-PFB801 supports the integration of FF-H1 instruments in high-vibration, high-temperature environments. The module’s galvanic isolation and robust electrical design ensure reliable segment communication even in electrically noisy industrial environments typical of heavy industry applications.

Pharmaceutical Manufacturing: In GMP-regulated production environments, the CC-PFB801 supports the Experion PKS system’s audit trail and electronic batch record capabilities by providing traceable, digitally verified process measurements from FF-H1 field instruments — supporting regulatory compliance without additional signal conditioning hardware.

Product Compatibility FAQ

Q1: Is the CC-PFB801 compatible with all versions of the Experion PKS C300 system?
The CC-PFB801 (51410087-175) is designed for use with the Honeywell Experion PKS platform from Release R400 onwards, in conjunction with the C300 Controller Module. It is installed in the Series C I/O chassis and communicates with the C300 controller via the Series C backplane. For installations running earlier Experion releases, compatibility should be verified against the Honeywell system release notes. Our technical team can assist with version compatibility assessment prior to procurement.

Q2: Can the CC-PFB801 be used in a redundant C300 controller architecture, and how is fieldbus segment continuity maintained during controller failover?
Yes. In a redundant C300 architecture, the CC-PFB801 is associated with the primary controller module. During a controller failover event, the Experion PKS system transfers control execution to the standby C300 controller while maintaining fieldbus segment communication through the installed CC-PFB801. The fieldbus segment itself remains active during the switchover, ensuring that field instrument data continues to be collected and that control output to FF-H1 valve positioners is not interrupted. This behavior is a key advantage of the integrated Series C chassis architecture over distributed I/O designs.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for system integration and commissioning?
All CC-PFB801 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. This warranty covers hardware defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional testing to verify communication integrity and module identification. For system integration support, our engineering team provides pre-sales technical consultation on chassis configuration, segment design, and Experion PKS compatibility. system integration guidance — including segment loading calculations, device address planning, and FDM configuration support — is available upon request. Contact us at plc.sales@zyplc.com or +86 19859288691 for project-specific assistance.
