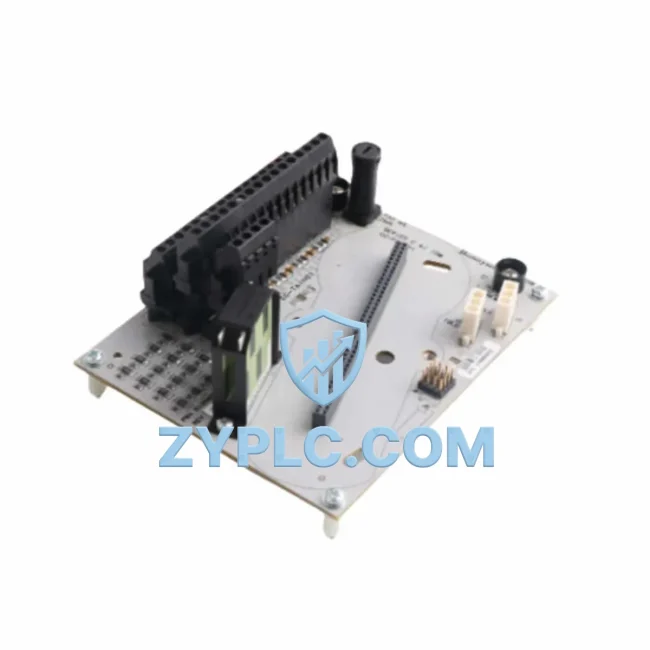

Honeywell CC-TAIN01 51306513-175 Industrial Network Interface for Experion PKS Systems

Honeywell CC-TAIN01 51306513-175: Industrial Data Link for Smart Factory Connectivity

The Honeywell CC-TAIN01 51306513-175 is a high-performance Analog Input Module engineered for seamless integration within the Experion PKS Distributed Control System (DCS) architecture. Designed to serve as a critical node in the industrial data chain, this module bridges field-level instrumentation — including transmitters, sensors, and actuators — with upper-level control, SCADA, and HMI platforms. In modern smart factory environments where real-time visibility and data integrity are non-negotiable, the CC-TAIN01 delivers the signal fidelity and network stability that process engineers and automation architects demand.

As industrial sites evolve toward fully connected, data-driven operations, the role of a reliable analog input interface becomes central to every layer of the automation pyramid. The CC-TAIN01 51306513-175 is purpose-built to support this transformation, enabling continuous, low-latency signal acquisition from field devices and transmitting structured process data upward through the Experion PKS control network to supervisory systems.

Network Communication Table

Connected Automation Data Flow

In a typical Experion PKS deployment, the CC-TAIN01 51306513-175 sits at the heart of the field-to-control data pipeline. Field instruments — pressure transmitters, flow meters, temperature sensors, and level gauges — feed analog signals directly into the CC-TAIN01, which digitizes and conditions these signals for transmission across the Fault Tolerant Ethernet (FTE) network backbone.

From the CC-TAIN01, structured process data flows to the Honeywell C300 Process Controller, where control logic executes in real time. The C300 communicates upstream via the FTE network to the Experion PKS Server, which aggregates data for operator visualization on Honeywell HMIWeb Display Builder stations. Simultaneously, the SCADA layer — often integrated via OPC DA/UA — pulls live process values for historian logging and enterprise reporting.

For remote I/O expansion, the CC-TAIN01 works in concert with Honeywell CHARM I/O modules (such as the CC-TAIX11 and CC-TAOX11 series) mounted on CHARM I/O Assemblies (CIOA), enabling distributed signal acquisition across large process units without running long analog cable runs. This architecture dramatically reduces wiring costs while improving signal integrity and noise immunity.

In multi-loop control scenarios, the CC-TAIN01 feeds analog process variables to Honeywell Series C I/O infrastructure, where data is shared across redundant controller pairs. The Honeywell Experion PKS Redundancy Module ensures bumpless transfer in the event of a controller fault, maintaining continuous data flow to HMI and SCADA without process interruption.

At the edge, Honeywell Connected Plant gateways and OPC UA servers translate Experion PKS process data into formats consumable by cloud analytics platforms and MES systems, completing the data journey from field sensor to enterprise dashboard. The CC-TAIN01 is thus not merely an input card — it is the foundational data acquisition node that makes plant-wide connectivity possible.

For drive and motor control integration, analog output signals derived from CC-TAIN01 process feedback can be routed to variable frequency drives (VFDs) and servo controllers via the C300’s analog output modules, closing the loop between process measurement and mechanical actuation. This tight integration between the CC-TAIN01 and the broader Experion PKS ecosystem ensures that every data point captured at the field level contributes to optimized, responsive process control.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is data isolation — the inability to move process information seamlessly between field devices, controllers, and supervisory systems. The CC-TAIN01 51306513-175 directly addresses this challenge within the Experion PKS framework.

Protocol Fragmentation: Many industrial sites operate a mix of legacy 4–20 mA instrumentation alongside newer HART-enabled smart devices. The CC-TAIN01’s compatibility with the Experion PKS CHARM architecture allows both signal types to coexist on the same I/O infrastructure, eliminating the need for separate signal conditioning hardware and reducing protocol conversion complexity.

Data Silos Between Control and Supervisory Layers: Without a reliable analog input interface, process data captured at the field level often fails to reach SCADA and MES systems in a timely or structured manner. The CC-TAIN01, operating within the FTE network, ensures that every analog measurement is available to the Experion PKS historian, OPC servers, and connected HMI stations with sub-second latency.

Remote Monitoring and Diagnostics: The Experion PKS platform, fed by CC-TAIN01 analog inputs, supports remote diagnostics through the Honeywell Field Device Manager (FDM) and HART pass-through capabilities. Maintenance teams can interrogate field instruments, review diagnostic data, and configure device parameters from the control room or remotely via secure VPN connections — without interrupting the process.

Production Line Transparency: By providing accurate, real-time analog data to the Experion PKS control layer, the CC-TAIN01 enables operators to monitor KPIs such as flow rates, temperatures, pressures, and levels on a unified HMI dashboard. This transparency supports proactive maintenance, reduces unplanned downtime, and accelerates root-cause analysis when process deviations occur.

System Scalability: As production capacity grows, additional CC-TAIN01 modules can be added to existing CHARM I/O Assemblies or Series C I/O cabinets without requiring controller replacement or network reconfiguration. This modular scalability protects capital investment and simplifies future expansion planning.

Industrial Connectivity FAQ

Q1: What communication protocols does the CC-TAIN01 51306513-175 support?
The CC-TAIN01 operates natively within the Honeywell Experion PKS architecture, communicating via the Fault Tolerant Ethernet (FTE) protocol over the C300 Controller I/O bus. It supports HART pass-through for smart field device diagnostics and is compatible with OPC DA/UA integration at the supervisory level. All modules undergo factory communication testing prior to shipment.

Q2: Is the CC-TAIN01 compatible with existing Experion PKS R500 and later systems?
Yes. The CC-TAIN01 51306513-175 is designed for use with Experion PKS R500 and subsequent releases, including compatibility with C300 Process Controllers and CHARM I/O Assemblies. For earlier Experion releases or Series C I/O configurations, please confirm firmware and hardware revision compatibility with your system integrator before installation.

Q3: How does ZYPLC ensure network stability and product quality before shipment?
Every CC-TAIN01 unit supplied by ZYPLC undergoes a comprehensive pre-shipment inspection, including functional testing of analog input channels, communication interface verification, and visual inspection for physical integrity. All products are covered by a 12-month warranty from the date of shipment. In-stock units are available for same-week dispatch to minimize production downtime.

Q4: Can the CC-TAIN01 be used in a redundant control architecture?
Yes. Within the Experion PKS framework, the CC-TAIN01 supports redundant I/O configurations when paired with compatible Honeywell redundancy modules and dual FTE network paths. This ensures continuous analog data acquisition even in the event of a single-point network or controller failure, making it suitable for safety-critical and high-availability process applications.
