Honeywell CC-TAIX11 51308365-175 Analog Input IOTA Redundant Module | Experion PKS

Honeywell CC-TAIX11 51308365-175: Industrial Data Link for Experion PKS Smart Factory Integration

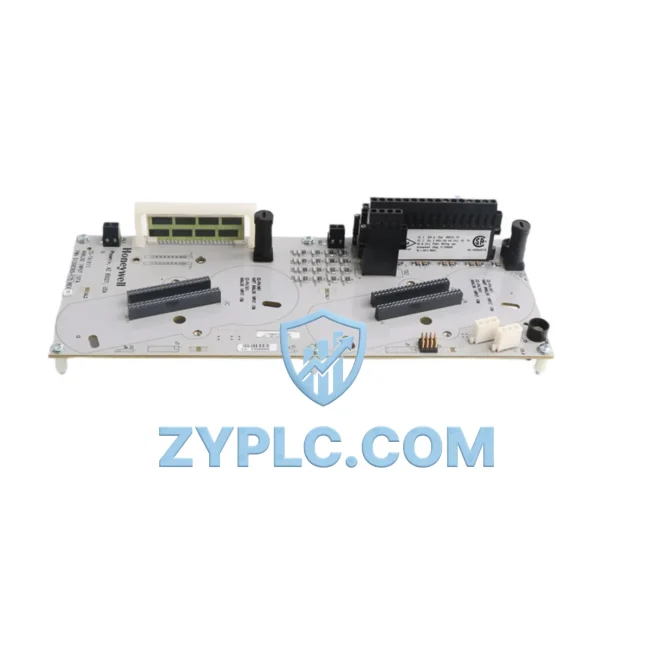

The Honeywell CC-TAIX11 51308365-175 is a high-reliability Analog Input IOTA (Input/Output Termination Assembly) Redundant Module engineered for the Honeywell Experion PKS (Process Knowledge System) Distributed Control System platform. Designed to serve as the critical physical interface between field instrumentation and the DCS controller backbone, this module enables seamless signal acquisition, redundant data transmission, and real-time process visibility across complex industrial environments — from petrochemical refineries and power generation facilities to pharmaceutical manufacturing and advanced smart factory automation networks.

In modern industrial connectivity architectures, the CC-TAIX11 functions as the foundational node in the analog signal chain. Field devices — including 4–20 mA transmitters, RTDs, thermocouples, and pressure sensors — terminate directly at the IOTA, where signals are conditioned, isolated, and forwarded to the Honeywell CC-AI01 Analog Input FTA (Field Termination Assembly) card. This tight hardware pairing ensures signal integrity from the sensor level all the way to the Experion PKS server, supporting uninterrupted data flow for SCADA dashboards, historian logging, and advanced process control loops.

Network Communication Table

Connected Automation Data Flow

The CC-TAIX11 sits at the heart of a layered industrial data architecture. At the field level, analog sensors and transmitters — such as Rosemount 3051 pressure transmitters, Yokogawa EJA series differential pressure devices, and Pt100 RTD temperature probes — deliver raw process signals to the IOTA terminal block. These signals are then routed through the Honeywell CC-AI01 Analog Input FTA card, which performs analog-to-digital conversion and passes structured process data onto the Honeywell C300 Process Controller via the Experion PKS control bus.

Within the Experion PKS architecture, the C300 controller communicates upstream over the Fault Tolerant Ethernet (FTE) network — a dual-ring, redundant Ethernet backbone — to the Experion PKS server cluster. This server hosts the Experion PKS HMIWeb Display Builder environment, where operators monitor live analog values, configure alarm thresholds, and execute control strategies. Simultaneously, the FTE network connects to Honeywell Uniformance PHD (Process Historian Database), enabling long-term trend logging, KPI reporting, and compliance data archiving.

For plants operating hybrid control environments, the CC-TAIX11 data stream can be bridged to third-party SCADA platforms — including Wonderware System Platform, Ignition by Inductive Automation, or GE iFIX — via OPC DA/UA gateway servers. This allows the Experion PKS analog input data to feed into plant-wide MES (Manufacturing Execution Systems) and ERP integration layers without protocol conversion bottlenecks. In multi-vendor installations, the Honeywell CCIE (Control Cabinet Interface Extender) module extends the C300 controller’s I/O reach across cabinet boundaries, while the Honeywell CC-PDOB01 Digital Output FTA handles discrete actuator commands in parallel with the analog monitoring loop managed by the CC-TAIX11.

For remote I/O expansion in distributed plant layouts, the CC-TAIX11 pairs naturally with Honeywell ACIO (Advanced Control I/O) modules, enabling analog signal aggregation from geographically dispersed field junction boxes back to the central DCS cabinet. Edge computing gateways — such as the Honeywell Experion Edge or third-party IIoT gateways running MQTT/Sparkplug B — can tap into the Experion PKS data stream to push real-time analog values to cloud-based analytics platforms, supporting predictive maintenance and digital twin applications.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial plants is data isolation — where field instruments, PLCs, DCS controllers, and SCADA systems operate in disconnected silos, preventing plant-wide visibility and real-time decision-making. The Honeywell CC-TAIX11 51308365-175 directly addresses this challenge within the Experion PKS ecosystem.

Protocol Unification: By providing a standardized IOTA termination point for 4–20 mA analog signals, the CC-TAIX11 eliminates the need for custom signal conditioning hardware when integrating diverse field instruments. HART-compatible wiring allows secondary digital communication over the same two-wire loop, enabling device diagnostics and configuration without additional cabling infrastructure.

Eliminating Data Silos: The redundant IOTA design ensures that no single hardware failure interrupts the analog data pipeline. With primary and secondary IOTA modules operating in hot-standby mode, the Experion PKS controller continuously receives uninterrupted process data — eliminating the data gaps that occur during module replacement in non-redundant architectures.

Remote Monitoring and Diagnostics: Through the Experion PKS FTE network, maintenance engineers can remotely access module health status, channel diagnostics, and signal quality metrics from the control room or via secure remote desktop connections. This capability reduces unplanned downtime by enabling predictive maintenance workflows — identifying degraded analog channels before they cause process upsets.

Production Line Transparency: Analog values collected by the CC-TAIX11 feed directly into Experion PKS control strategies, alarm management systems, and historian databases. This creates a complete, auditable record of process conditions — supporting regulatory compliance, root cause analysis, and continuous improvement initiatives across the production line.

System Scalability: The modular IOTA architecture of the Experion PKS platform allows plants to expand analog input capacity incrementally. Additional CC-TAIX11 modules can be added to existing I/O cabinets without controller reconfiguration, supporting phased capacity expansions and greenfield automation projects alike.

Industrial Connectivity FAQ

Q1: What communication protocols does the CC-TAIX11 support, and is it compatible with HART field devices?
The CC-TAIX11 is designed for 4–20 mA analog signal termination within the Honeywell Experion PKS platform. The IOTA supports HART-compatible field wiring, allowing HART-enabled transmitters to communicate secondary digital data — including device diagnostics, process variables, and configuration parameters — over the standard two-wire analog loop. This makes the CC-TAIX11 compatible with a wide range of HART-enabled sensors and transmitters from major manufacturers.

Q2: How does the redundant IOTA design improve network stability and minimize downtime?
The CC-TAIX11 operates as part of a redundant IOTA pair within the Experion PKS I/O subsystem. In the event of a primary module failure, the secondary IOTA automatically assumes control of the analog input channels with no interruption to data flow or control loop execution. This hot-standby redundancy architecture ensures continuous process monitoring and eliminates the communication gaps that would otherwise occur during module replacement or maintenance activities.

Q3: Can the CC-TAIX11 integrate with third-party SCADA and HMI systems outside of Experion PKS?
Yes. While the CC-TAIX11 is natively designed for the Experion PKS platform, analog data collected through this module can be exposed to third-party SCADA and HMI systems via OPC DA/UA servers running on the Experion PKS application node. This enables integration with platforms such as Wonderware, Ignition, GE iFIX, and other industry-standard SCADA environments, supporting plant-wide data visibility without replacing the existing DCS infrastructure.

Q4: What quality assurance and warranty coverage is provided with the CC-TAIX11 51308365-175?
Every CC-TAIX11 51308365-175 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify analog channel integrity, redundancy switching performance, and backplane communication. All units are covered by a 12-Month Warranty against manufacturing defects and operational failures. In-stock units are available for immediate dispatch, with fast global shipping to support urgent maintenance and system expansion requirements.
