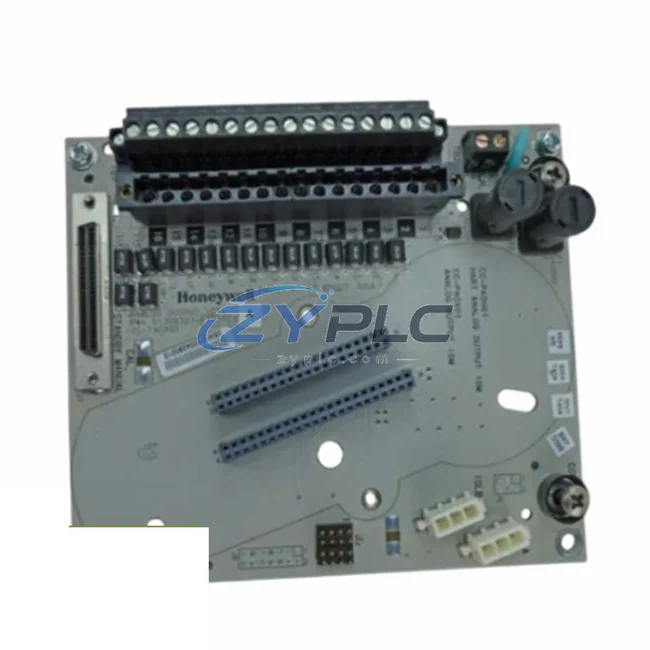

Honeywell CC-TAOX01 51308351-175 Analog Output

Honeywell CC-TAOX01 51308351-175 Analog Output Module for C300 Automation

The Honeywell CC-TAOX01 (Part No. 51308351-175) is a high-performance analog output module engineered for the Experion PKS C300 Controller platform. Designed to deliver precise 4–20 mA or 0–10 V analog signals to field devices, this module plays a central role in reducing unplanned downtime risk across process control loops. By maintaining tight output accuracy and minimizing signal drift, the CC-TAOX01 ensures that actuators, control valves, and variable-speed drives receive exactly the command signal they need — no more, no less — eliminating the unplanned downtime caused by over-actuation or oscillating control loops.

In modern industrial facilities where energy costs represent a significant share of operating expenditure, the quality of analog output signals directly impacts motor loading, pump efficiency, and compressor throughput. The CC-TAOX01 integrates seamlessly into the C300 controller’s I/O architecture, enabling engineers to implement advanced process control strategies such as cascade control, feedforward compensation, and model predictive control — all of which contribute to measurable reductions in specific operating load per unit of production output.

Product Specification Table

System Compatibility and Application

The CC-TAOX01 does not operate in isolation — its maintenance planning value is fully realized when deployed within a well-integrated Experion PKS automation architecture. At the controller level, the Honeywell C300 Process Controller executes the control algorithms that generate the analog output commands sent through the CC-TAOX01. Paired with the CC-TCNT01 Control Net Interface Module, the system maintains deterministic communication between the controller and I/O subsystems, ensuring that output updates are delivered on time without redundant retransmissions that would otherwise increase CPU load and bus utilization.

On the input side, the CC-TAIM01 Analog Input Module feeds real-time process variable data — temperature, pressure, flow — back into the C300 controller, closing the control loop. The accuracy of this feedback directly determines how aggressively the CC-TAOX01 must correct its output, and a well-calibrated input chain means smaller, more energy-efficient corrections. For digital field devices, the CC-TDIL01 Digital Input Module and CC-TDOB01 Digital Output Module complement the analog I/O by handling discrete status signals and on/off commands for motors, pumps, and solenoid valves.

At the drive level, the CC-TAOX01’s 4–20 mA output is commonly wired to Honeywell SmartLine transmitters and to the analog input cards of variable frequency drives (VFDs) such as those in the ABB ACS880 series or Siemens SINAMICS G120 family, enabling precise speed regulation of pumps and fans based on real process demand rather than fixed setpoints. This demand-based drive control is one of the most impactful operational-efficiency strategies available in process plants, with documented savings of 20–50% on motor load in variable-load applications.

For power quality monitoring and energy metering, the CC-TAOX01 works alongside Honeywell Enraf power monitoring modules and third-party energy meters connected via Modbus RTU or PROFIBUS DP gateways integrated into the Experion PKS network. The Honeywell Experion PKS Station (EPS) HMI platform aggregates operating load data from across the plant, allowing operators to identify inefficient control loops, schedule predictive maintenance, and benchmark energy performance against production KPIs.

The CC-PDOB01 Power Distribution Output Module and associated CPPM08 Power Supply Module ensure that the I/O chassis housing the CC-TAOX01 receives clean, regulated power, preventing output errors caused by power rail noise — errors that would otherwise force unnecessary actuator corrections and increase operating load at the field device level.

Maintenance and Replacement Notes

Consider a continuous chemical processing line where a series of control valves regulate reactant flow rates. Without precise analog output control, valve positioners receive noisy or drifting signals, causing them to hunt continuously — opening and closing repeatedly around the setpoint. Each unnecessary valve movement consumes pneumatic energy (compressed air) and accelerates valve seat wear, increasing both energy costs and maintenance frequency. The CC-TAOX01’s 16-bit DAC resolution and low output noise floor eliminate this hunting behavior, keeping valves stable at their optimal operating position.

In a power generation facility, the CC-TAOX01 controls the analog setpoint inputs to boiler feedwater pump VFDs. By delivering a stable, accurate speed reference signal, the module ensures that pumps operate at their best efficiency point (BEP) on the pump curve, minimizing hydraulic losses and reducing motor current draw. Over a year of continuous operation, this translates to significant reductions in kWh consumption and a measurable decrease in motor bearing temperature — a leading indicator of impending failure that, if left unaddressed, results in unplanned downtime and emergency maintenance costs.

For production line throughput optimization, the CC-TAOX01 enables tighter control of conveyor speeds, mixing agitator rates, and extruder screw speeds by providing smooth, jitter-free analog references to the respective drive systems. Smoother speed profiles reduce mechanical shock loads, extend gearbox and coupling service life, and allow production rates to be pushed closer to equipment design limits without triggering protective shutdowns — improving overall equipment effectiveness (OEE) without additional capital investment.

All units supplied by ZYPLC undergo a comprehensive pre-shipment test protocol that includes channel-by-channel output verification, load regulation testing, and communication handshake validation with a C300 controller. Each CC-TAOX01 is covered by a warranty terms confirmed during quotation from the date of shipment, with availability confirmed by RFQ availability enabling rapid dispatch to minimize production downtime for customers requiring urgent replacement modules.

Product Sourcing FAQ

Q1: How does the CC-TAOX01 contribute to measurable operational stability in a process plant?
The CC-TAOX01’s high-resolution 16-bit analog output minimizes control loop oscillation and valve hunting. Stable, accurate output signals mean field devices — valves, VFDs, actuators — operate at their intended setpoints rather than continuously correcting, directly reducing pneumatic operating load, motor loading, and heat generation in drive systems.

Q2: Is the CC-TAOX01 compatible with existing Experion PKS C300 systems without hardware modification?
Yes. The CC-TAOX01 is a standard C300 I/O module that slots directly into compatible I/O chassis. No additional hardware adapters or firmware upgrades are required for integration into existing Experion PKS R310 and later systems. Always verify chassis slot compatibility and firmware revision with your system documentation before installation.

Q3: What is the recommended replacement procedure to minimize production downtime?
The CC-TAOX01 supports hot-swap replacement in redundant I/O configurations. For non-redundant installations, plan the swap during a scheduled maintenance window. ZYPLC recommends pre-configuring the replacement module offline using Experion PKS Control Builder before the swap to reduce loop-down time to under 15 minutes. All ZYPLC-supplied modules are pre-tested and ready for immediate installation.

Q4: What warranty and testing assurance does ZYPLC provide for the CC-TAOX01?
Every CC-TAOX01 supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes full functional testing including analog output accuracy verification across all 8 channels, power consumption measurement, and communication protocol validation. Test records are available upon request.
