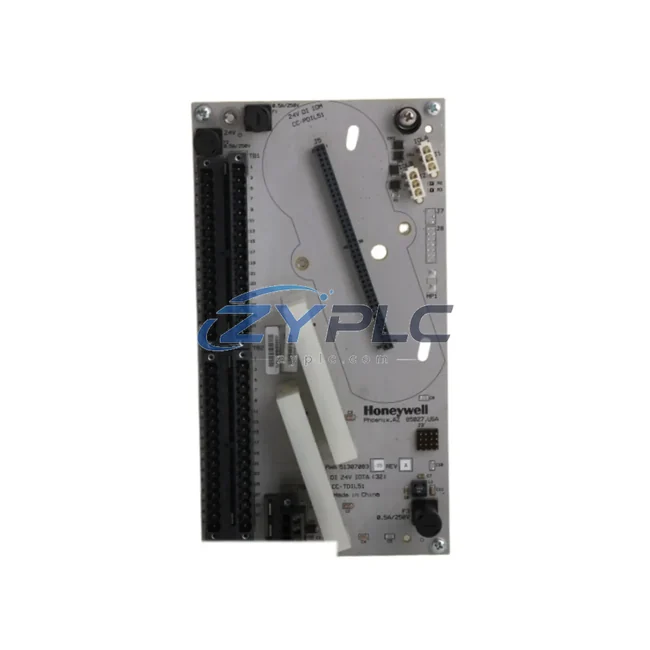

Honeywell CC-TDI220 51308394-275 Digital Input for C300

Honeywell CC-TDI220 51308394-275 Digital Input for C300

The Honeywell CC-TDI220 (Part No. 51308394-275) is a high-density digital input module purpose-built for the Experion PKS C300 Controller platform. Within a layered distributed control system, this module occupies a critical position at the I/O layer, serving as the primary interface between field-level discrete signals and the control execution environment. Rather than functioning as a standalone component, the CC-TDI220 is designed to operate as an integrated element within a broader system architecture — one that spans the control layer, I/O layer, network layer, power layer, human-machine interface layer, and field execution layer simultaneously.

In modern industrial automation, the reliability of a digital input module is inseparable from the coherence of the system it inhabits. The CC-TDI220 connects directly to the C300 Controller via the Series C I/O Link, enabling deterministic signal acquisition with minimal latency. Its 24 VDC discrete input channels are engineered to accept dry contact, wet contact, and NAMUR-compatible signals, making it suitable for a wide range of field devices including limit switches, proximity sensors, push-button stations, and relay output contacts from downstream drive systems.

From a system architecture perspective, the CC-TDI220 is typically installed within a Series C I/O FIM (Field Interface Module) chassis, sharing backplane resources with complementary modules such as the CC-TDO901 digital output module, the CC-TAI135 analog input module, and the CC-TCF901 thermocouple input module. This co-location within a common chassis reduces wiring complexity, standardizes maintenance procedures, and ensures that all I/O modules benefit from the same chassis-level power conditioning and grounding architecture. The CC-PWR001 chassis power supply provides regulated 24 VDC to the backplane, ensuring stable operation across all installed modules regardless of field load variations.

At the control layer, the C300 Controller — supported by its redundant controller pair configuration — polls the CC-TDI220 at configurable scan rates, integrating discrete input states into the control strategy executed within Experion PKS. The controller communicates upstream to the Experion server via the FTE (Fault Tolerant Ethernet) network, a dual-ring Ethernet architecture that provides network-level redundancy without single points of failure. This means that even in the event of a network segment failure, the CC-TDI220 continues to deliver real-time input data to the control layer without interruption.

For human-machine interface integration, the discrete input states captured by the CC-TDI220 are surfaced through Experion PKS Station displays, where operators can monitor field device status, acknowledge alarms, and initiate control actions. The seamless data flow from field signal through the CC-TDI220, across the C300 Controller, and into the HMI layer exemplifies the system integration philosophy — where every component contributes to a unified operational picture rather than existing as an isolated data source.

Redundancy is a central design consideration for any system incorporating the CC-TDI220. In high-availability applications, the module can be paired with redundant I/O configurations supported by the C300 platform, ensuring that a single module failure does not result in loss of process visibility. This is particularly important in industries such as oil and gas, power generation, and chemical processing, where unplanned downtime carries significant operational and safety consequences. The CC-SCMB02 system cabinet module backplane and associated redundancy switching components work in concert with the CC-TDI220 to maintain continuous I/O availability during module replacement or fault conditions.

From an engineering and commissioning standpoint, the CC-TDI220 supports hot-swap replacement without requiring controller shutdown, a feature that dramatically reduces maintenance windows in operating facilities. Field wiring connects via the CC-TBK01 or compatible terminal block assemblies, which provide clearly labeled, individually fused termination points for each input channel. This wiring architecture simplifies both initial commissioning and long-term troubleshooting, as technicians can isolate individual channels without disturbing adjacent circuits.

Inventory availability and supply chain continuity are critical factors in long-term system support. ZYPLC supports RFQ sourcing for the CC-TDI220 (51308394-275) to support both new project deployments and ongoing maintenance requirements for existing Experion PKS installations. All units are tested prior to shipment and covered by a warranty terms confirmed during quotation, providing assurance of functional integrity from the moment of installation. Whether the requirement is for a single replacement module or a bulk order for a greenfield project, ZYPLC’s supply capability ensures that system architects and maintenance engineers can source this critical component without extended lead times.

Product Specification Table

System Compatibility Notes

The CC-TDI220 achieves its full operational value when integrated within a coordinated system architecture. In a typical Experion PKS C300 deployment, the module shares a Series C FIM chassis with the CC-TDO901 digital output module, which drives field actuators and solenoid valves based on control logic executed by the C300 Controller. Analog process variables are acquired by the CC-TAI135 analog input module, providing the continuous measurement data that complements the discrete state information delivered by the CC-TDI220. Temperature measurements from thermocouples and RTDs are handled by the CC-TCF901 and CC-TRI001 modules respectively, completing the signal acquisition layer within the chassis.

Power to the I/O chassis is supplied by the CC-PWR001 chassis power supply, which provides regulated, filtered DC power to all installed modules. In redundant power configurations, a secondary CC-PWR001 unit operates in parallel, ensuring uninterrupted module operation during power supply maintenance or failure events. The CC-SCMB02 backplane provides the physical and electrical interconnection between all chassis-resident modules and the FIM communication interface.

At the network layer, the C300 Controller connects to the Experion server infrastructure via the FTE Switch (Fault Tolerant Ethernet Switch), which maintains dual-path network connectivity. The CC-PCF901 PROFIBUS communication module may be installed in the same system to interface with field devices operating on PROFIBUS DP networks, extending the system’s reach to variable frequency drives, intelligent motor control centers, and remote I/O stations. For systems requiring HART pass-through capability, the CC-TAIX11 HART-enabled analog input module works alongside the CC-TDI220 to provide both discrete and analog field device diagnostics within the same control architecture.

Human-machine interface functions are delivered through Experion PKS Station workstations, which aggregate all I/O data — including the discrete inputs from the CC-TDI220 — into unified process displays, alarm management screens, and historical trend archives. This end-to-end data integration, from field signal through I/O module, controller, network, and HMI, represents the system integration model that defines modern DCS architecture.

Industrial Application Notes

The CC-TDI220 is deployed across a broad spectrum of industrial applications where reliable discrete input acquisition is essential to process safety and operational continuity. In power generation facilities, the module monitors breaker status, valve position feedback, and equipment run/stop states, providing the control system with real-time visibility of electrical and mechanical system conditions. In oil and gas processing plants, it acquires discrete signals from emergency shutdown valves, high-level switches, and fire and gas detection systems, feeding critical safety logic executed by the C300 Controller.

In chemical and petrochemical facilities, the CC-TDI220 supports continuous process monitoring by capturing discrete inputs from agitator run confirmation, pump seal failure contacts, and interlock relay outputs. Its optical isolation architecture ensures that ground loops and electrical noise from high-power field equipment do not compromise signal integrity at the control layer. In water and wastewater treatment systems, the module monitors pump station status, valve positions, and level switch outputs across geographically distributed lift stations connected to a central Experion PKS control room.

For mining and minerals processing applications, the CC-TDI220 provides discrete input acquisition from conveyor belt alignment switches, crusher overload contacts, and mill motor run feedback, supporting the high-availability control architectures required in continuous production environments. In pharmaceutical and food processing facilities, where regulatory compliance demands complete audit trails, the module’s integration with Experion PKS ensures that all discrete input state changes are time-stamped, logged, and available for batch record generation.

Product Compatibility FAQ

Q1: Is the CC-TDI220 compatible with both redundant and non-redundant C300 Controller configurations?
Yes. The CC-TDI220 operates in both standard and redundant C300 Controller architectures. In redundant configurations, the module’s I/O data is accessible to both the primary and secondary controller simultaneously via the Series C I/O Link, ensuring seamless controller failover without loss of discrete input visibility. No additional configuration is required at the module level to support controller redundancy.

Q2: Can the CC-TDI220 be replaced online without shutting down the C300 Controller or affecting adjacent modules?
Yes. The CC-TDI220 supports hot-swap replacement within the Series C FIM chassis. The module can be removed and reinserted while the chassis remains powered and the C300 Controller continues executing its control strategy. Adjacent modules in the same chassis are not affected by the replacement operation. Following reinsertion, the module automatically re-establishes communication with the controller and resumes normal I/O scanning within seconds.

Q3: What warranty coverage is provided for the CC-TDI220 supplied by ZYPLC, and what does it include?
All CC-TDI220 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. This warranty covers functional defects identified during normal operation under specified environmental conditions. Each unit undergoes functional testing prior to shipment to verify channel integrity, communication interface operation, and electrical isolation performance. In the event of a warranty claim, ZYPLC provides replacement unit dispatch to minimize system downtime. Contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com for warranty support.
