Honeywell DC-TAID01 Analog Input IOTA Module for Experion PKS Systems

Honeywell DC-TAID01 Industrial Data Link: Precision Analog Signal Acquisition for Smart Factory Connectivity

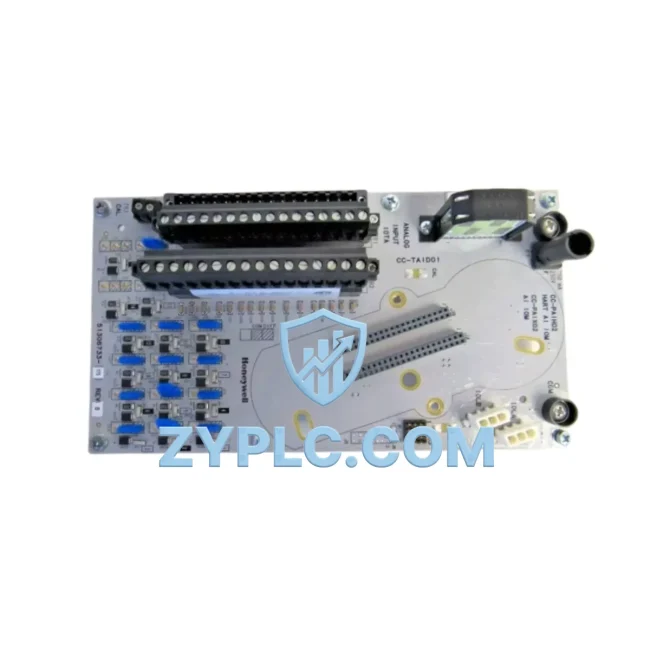

The Honeywell DC-TAID01 Analog Input IOTA Module is a high-performance field I/O interface designed for the Honeywell Experion PKS Distributed Control System (DCS) platform. As a critical node in the industrial data chain, the DC-TAID01 bridges the gap between physical field instruments and the digital control layer, enabling seamless signal acquisition, real-time data transmission, and centralized process visibility across complex manufacturing and process automation environments.

In modern smart factory architectures, the integrity of analog signal data is foundational to every downstream decision — from PID loop control and alarm management to SCADA dashboards and MES reporting. The DC-TAID01 delivers this integrity with precision, supporting standard 4–20 mA analog input signals and HART (Highway Addressable Remote Transducer) protocol communication, making it fully compatible with a wide range of field transmitters, pressure sensors, flow meters, temperature elements, and level instruments deployed across process plants, refineries, power generation facilities, and pharmaceutical manufacturing sites.

Network Communication Table

Connected Automation Data Flow

The DC-TAID01 sits at the very beginning of the industrial data pipeline. Field instruments — including pressure transmitters, thermocouple assemblies, Coriolis flow meters, and ultrasonic level sensors — output 4–20 mA analog signals that are wired directly to the IOTA termination assembly. The DC-TAID01 conditions and digitizes these signals before passing them upstream through the Honeywell C300 Controller, which executes the control strategy and communicates over the Fault Tolerant Ethernet (FTE) network backbone.

Within the Experion PKS architecture, the C300 Controller pairs with the Honeywell IOLINK communication module to manage I/O subsystem traffic, while the DC-TAIX01 and DC-TAOX01 modules handle discrete input and output functions respectively — forming a complete I/O suite alongside the DC-TAID01 for mixed-signal process environments. For applications requiring redundant field power and signal integrity, the Honeywell DC-PSCM Power Supply and Conditioner Module ensures stable voltage delivery to the I/O chassis.

At the supervisory layer, the Experion PKS Station (ES) and Operator Station (OS) receive real-time process values from the DC-TAID01 via the FTE network, feeding live data into Honeywell Experion HMI displays and historian databases. For plants running parallel SCADA systems, the Experion PKS OPC DA/UA server exports tag data to third-party SCADA platforms, enabling cross-system visibility without protocol conversion overhead. In hybrid automation environments, the Honeywell HC900 Hybrid Controller can serve as a remote process controller, with its analog I/O modules mirroring the signal acquisition role of the DC-TAID01 in smaller-scale skid applications.

For edge connectivity and remote diagnostics, the DC-TAID01’s HART pass-through capability allows asset management software such as Honeywell Field Device Manager (FDM) to communicate directly with HART-enabled field devices — reading device diagnostics, calibration data, and health status without interrupting the primary 4–20 mA control signal. This dual-layer communication architecture is essential for predictive maintenance programs and IIoT-enabled smart factory deployments where device-level data must flow continuously to cloud analytics platforms.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy process plants is data isolation — field instruments generating valuable process data that never reaches the control room or enterprise systems because of protocol mismatches, aging wiring infrastructure, or fragmented I/O architectures. The Honeywell DC-TAID01 directly addresses this challenge within the Experion PKS ecosystem.

Protocol Unification: By supporting HART communication over the standard 4–20 mA loop, the DC-TAID01 eliminates the need for separate HART multiplexers or protocol gateways in most field device communication scenarios. A single IOTA module can simultaneously carry the analog process variable and the HART digital signal, reducing wiring complexity and cabinet footprint while expanding the data available to the control system.

Eliminating Data Silos: In multi-vendor plant environments where Siemens PROFIBUS segments, Rockwell EtherNet/IP networks, and Honeywell FTE backbones coexist, the DC-TAID01 ensures that Honeywell-managed field devices contribute their data to the unified Experion PKS data model. Combined with Experion’s OPC UA server, this data can be shared with MES, ERP, and cloud analytics platforms without manual data extraction.

Remote Monitoring and Diagnostics: The HART pass-through function of the DC-TAID01 enables remote device diagnostics from the control room or from off-site engineering centers. Maintenance teams can interrogate field transmitters, review calibration records, and identify device faults without dispatching technicians to hazardous or remote field locations — reducing maintenance costs and improving plant safety.

Production Line Transparency: With the DC-TAID01 feeding accurate, high-resolution analog data into the Experion PKS historian, operations teams gain full visibility into process trends, batch performance, and equipment health. This transparency supports continuous improvement initiatives, regulatory compliance reporting, and energy optimization programs across the plant.

System Scalability: The modular IOTA architecture of the Experion PKS platform means that additional DC-TAID01 modules can be added to existing I/O cabinets as process expansion demands grow — without requiring controller replacement or network reconfiguration. This scalability protects capital investment and shortens the engineering timeline for plant expansions.

Industrial Connectivity FAQ

Q1: Does the Honeywell DC-TAID01 support HART protocol communication for field device diagnostics?
Yes. The DC-TAID01 IOTA module supports HART pass-through communication, allowing the Experion PKS system and Honeywell Field Device Manager (FDM) to access HART device variables, diagnostic data, and configuration parameters from HART-enabled field transmitters — all over the existing 4–20 mA wiring without signal interruption.

Q2: What is the communication latency of the DC-TAID01 within the Experion PKS FTE network?
The DC-TAID01 operates within the Experion PKS Fault Tolerant Ethernet (FTE) architecture, which is designed for deterministic, low-latency control communication. Typical scan cycle times for analog input modules in the Experion PKS environment are configurable from 100 ms to 500 ms depending on controller loading and network configuration, meeting the real-time requirements of most process control applications.

Q3: Is the DC-TAID01 compatible with third-party SCADA systems and OPC-based integrations?
Yes. Data acquired by the DC-TAID01 is processed by the Honeywell C300 Controller and made available through the Experion PKS OPC DA and OPC UA servers. This enables seamless integration with third-party SCADA platforms, historian software, MES systems, and IIoT data aggregation platforms that support OPC standards — without requiring additional protocol gateways or custom middleware.

Q4: What warranty and quality assurance does ZYPLC provide for the Honeywell DC-TAID01?
All Honeywell DC-TAID01 modules supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify signal integrity, communication performance, and hardware condition. We maintain in-stock inventory for immediate dispatch, with global shipping available to support urgent plant maintenance and system expansion requirements.
