Honeywell DC-TAIX51 Analog Input IOTA Card | TDC 3000 Series

Honeywell DC-TAIX51 Analog Input IOTA Card: Industrial Data Link for TDC 3000 DCS Networks

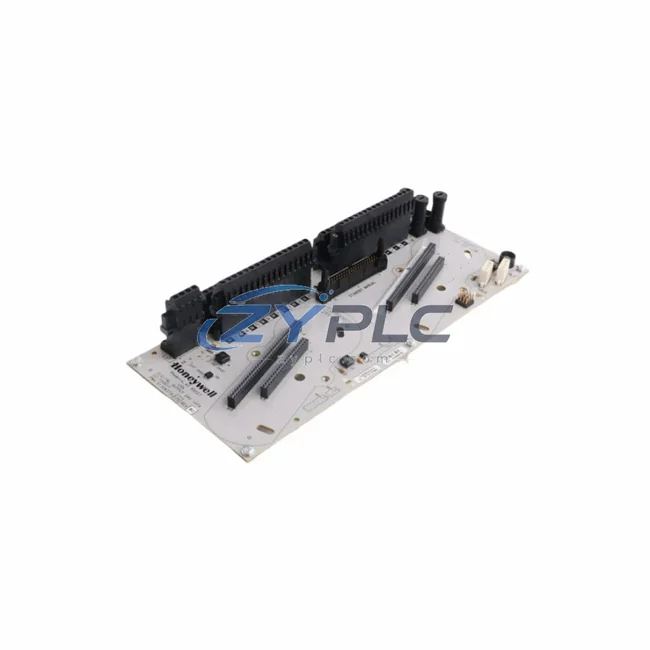

The Honeywell DC-TAIX51 is a precision Analog Input IOTA (Input/Output Termination Assembly) PCB card engineered for the Honeywell TDC 3000 Distributed Control System platform. As a foundational signal acquisition node in process automation environments, the DC-TAIX51 bridges the gap between field instrumentation and the upper-level control network — enabling seamless, real-time data flow from sensors and transmitters through to SCADA, HMI, and historian systems.

In modern smart factory and process plant architectures, analog signal integrity is the backbone of operational transparency. The DC-TAIX51 serves as the critical first link in the data chain: it receives 4–20 mA or millivolt signals from field devices such as pressure transmitters, temperature sensors, flow meters, and level gauges, then conditions and routes those signals through the TDC 3000 Local Control Network (LCN) and Universal Control Network (UCN) to the process controllers and operator stations above.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the DC-TAIX51’s role requires tracing the full data path from the plant floor to the control room. In a typical TDC 3000 installation, field instruments — including Honeywell ST 3000 Smart Transmitters and Rosemount 3051 pressure transmitters — deliver analog signals to the DC-TAIX51 IOTA card mounted in the field termination panel. The IOTA card provides the physical wiring interface and signal conditioning layer, passing conditioned data to the paired Honeywell DC-SCAI51 or equivalent Analog Input FTA (Field Termination Assembly) module seated in the TDC 3000 card file.

From the card file, data travels across the Honeywell UCN (Universal Control Network) — a deterministic, high-speed process bus — to the Honeywell PM (Process Manager) or HPM (High-Performance Process Manager) controllers, where control logic executes in real time. The PM/HPM controllers communicate upstream via the LCN (Local Control Network), a token-passing coaxial network that links all major TDC 3000 nodes including the Honeywell US (Universal Station) operator consoles, the History Module (HM) for data archiving, and the Application Module (AM) for advanced process calculations.

At the supervisory level, the LCN gateway connects to modern SCADA platforms and the Honeywell PHD (Process History Database) historian, enabling plant-wide data aggregation, trend analysis, and KPI dashboards. Integration with Honeywell HMIWeb Display Builder allows operators to visualize real-time analog values — temperature, pressure, flow, level — directly on process graphics, with alarm management handled through the Honeywell Alarm Manager module.

For plants running hybrid architectures, the TDC 3000 LCN can interface with Honeywell Experion PKS via the LCN-to-Experion Gateway (LEG), allowing legacy DC-TAIX51 analog input data to flow into modern Experion controllers and C300 Series modules such as the CC-PAON01 analog output module — bridging decades of installed base with next-generation control infrastructure. Industrial Ethernet switches and managed network infrastructure further extend connectivity to MES and ERP layers, completing the smart factory data loop from sensor to enterprise.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in process industries is data isolation — where field signals are trapped at the I/O level and never reach the systems that need them for optimization, compliance, and predictive maintenance. The DC-TAIX51 directly addresses this by providing a reliable, protocol-native termination point that ensures every analog signal is properly conditioned, electrically isolated, and network-ready before entering the TDC 3000 control fabric.

In aging DCS installations, degraded or incompatible IOTA cards are a leading cause of signal dropout, measurement drift, and unplanned shutdowns. Replacing a faulty DC-TAIX51 with a tested, verified unit restores data continuity across the entire loop — from the field transmitter through the process controller to the operator station — without requiring any software reconfiguration or network changes. This plug-and-play compatibility is critical for minimizing downtime in continuous process environments such as oil refining, chemical production, power generation, and pharmaceutical manufacturing.

For plants pursuing digital transformation, the DC-TAIX51 enables a phased modernization strategy: legacy TDC 3000 analog inputs remain fully operational while supervisory systems are upgraded to modern SCADA and cloud-connected historian platforms. Remote diagnostics become possible when PHD or Uniformance data is exposed to OPC-UA middleware or edge gateway devices, allowing maintenance teams to monitor loop health, detect sensor drift, and schedule preventive maintenance without physical site visits — reducing operational costs and improving plant availability.

System expansion is equally straightforward: additional DC-TAIX51 cards can be added to existing TDC 3000 card files to increase analog input capacity, supporting new measurement points as process lines are extended or retooled. The modular architecture of the TDC 3000 platform means that scaling up analog input infrastructure requires no changes to the LCN or UCN network topology.

Industrial Connectivity FAQ

Q1: Is the DC-TAIX51 compatible with all TDC 3000 card file configurations?
A: Yes. The DC-TAIX51 IOTA card is designed for use with the standard Honeywell TDC 3000 card file and is compatible with the full range of TDC 3000 Analog Input FTA modules. It supports both single-ended and differential analog input configurations depending on the paired FTA module. Always verify the FTA model (e.g., DC-SCAI51) to confirm the correct IOTA pairing for your installation.

Q2: What communication protocols does the TDC 3000 network support, and how does the DC-TAIX51 fit in?
A: The TDC 3000 uses Honeywell’s proprietary LCN (Local Control Network) and UCN (Universal Control Network) protocols. The DC-TAIX51 operates at the field termination layer — it does not itself implement a network protocol but provides the physical and electrical interface that allows analog signals to enter the UCN-connected card file. For integration with modern Ethernet-based SCADA or OPC systems, a gateway module or LEG (LCN-to-Experion Gateway) is used at the network boundary.

Q3: How is network stability and signal integrity ensured with the DC-TAIX51?
A: Each DC-TAIX51 unit supplied by ZYPLC undergoes full functional testing prior to shipment, including signal path continuity, isolation resistance, and connector integrity checks. The TDC 3000 UCN is a deterministic network with built-in redundancy support, ensuring that analog input data reaches the process controller with consistent, low-latency performance even in electrically noisy industrial environments.

Q4: What warranty and support does ZYPLC provide for the DC-TAIX51?
A: All DC-TAIX51 units are covered by a warranty terms confirmed during quotation from the date of shipment. Units are tested, inspected, and shipped via DHL or FedEx with full tracking. ZYPLC maintains ready stock for fast global dispatch, and our technical team is available to assist with compatibility verification, installation guidance, and post-sale support.
