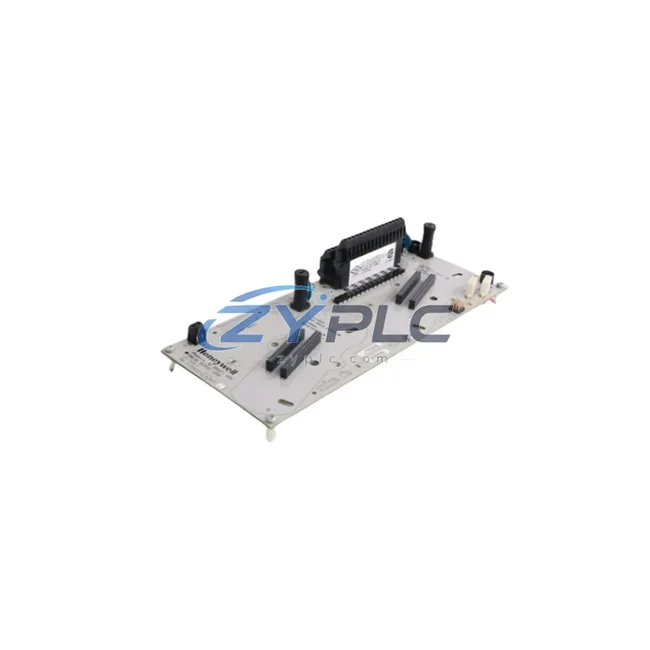

Honeywell DC-TDIL01 Digital Input for TDC 3000

Honeywell DC-TDIL01 Digital Input for TDC 3000

The Honeywell DC-TDIL01 is a high-reliability digital input module engineered for seamless integration within the TDC 3000 Distributed Control System (DCS) architecture. Rather than functioning as a standalone component, the DC-TDIL01 is designed to operate as a critical node within a layered automation hierarchy — connecting field-level discrete signals to the process control layer with precision, determinism, and long-term operational stability. In complex industrial environments such as petroleum refining, chemical processing, power generation, and water treatment, the integrity of digital input acquisition directly determines the reliability of the entire control loop. The DC-TDIL01 addresses this requirement by providing robust signal conditioning, noise immunity, and seamless system integration with the broader TDC 3000 platform.

Product Specification Table

System Compatibility Notes

The DC-TDIL01 does not operate in isolation — its value is fully realized when considered within the complete TDC 3000 control architecture. At the control layer, the Honeywell HPM (High-Performance Manager) serves as the primary process controller, executing regulatory and sequential control strategies. The DC-TDIL01 feeds discrete field status signals — such as valve open/close confirmation, motor run/stop feedback, and limit switch states — directly into the HPM’s logic engine, enabling real-time decision-making without latency.

At the I/O layer, the DC-TDIL01 is typically installed alongside complementary modules such as the Honeywell DC-TDOA01 Digital Output Module for actuator command execution, and the DC-TAID01 Analog Input Module for continuous process variable acquisition. Together, these modules form a complete I/O subsystem within the HPM rack, ensuring that both discrete and analog signals are handled within a unified, diagnostics-capable environment.

Network integrity is maintained through the TDC 3000 Local Control Network (LCN) and the Universal Control Network (UCN), which provide deterministic, high-speed communication between the HPM, the Honeywell AM (Application Module), and the HM (History Module). The DC-TDIL01’s signal data is transmitted across these networks in real time, supporting historian logging, alarm management, and advanced process control functions.

For human-machine interface requirements, the Honeywell GUS (Global User Station) or US (Universal Station) workstations provide operators with real-time visualization of the digital input states captured by the DC-TDIL01. This tight integration between the field I/O layer and the HMI layer ensures that operators have immediate, accurate situational awareness across all monitored discrete points.

Power distribution to the DC-TDIL01 and its associated rack modules is managed through the Honeywell DC-PS032 Power Supply Module, which provides regulated, redundant DC power to the I/O subsystem. In high-availability architectures, redundant power supply configurations ensure that a single power supply failure does not interrupt digital input acquisition — a critical requirement in continuous process industries.

For applications requiring redundant control, the DC-TDIL01 can be deployed within a redundant HPM configuration, where a standby HPM mirrors the primary controller’s I/O state in real time. This architecture, supported by the Honeywell Redundancy Link Module (RLM), ensures bumpless transfer in the event of a primary controller fault, maintaining uninterrupted digital input monitoring throughout the switchover event.

Industrial Application Notes

The DC-TDIL01 finds application across a broad spectrum of industrial sectors where discrete signal integrity is non-negotiable. In petroleum refining and petrochemical plants, the module monitors valve position feedback, pump status, and emergency shutdown (ESD) system inputs, providing the TDC 3000 DCS with the discrete state information required for safe, compliant process operation. Its optical isolation ensures that high-voltage transients common in heavy industrial environments do not propagate into the control system.

In power generation facilities — including thermal, hydro, and combined-cycle plants — the DC-TDIL01 captures breaker status, turbine protection relay outputs, and auxiliary equipment run/stop signals. The module’s deterministic scan cycle ensures that critical protection signals are processed within the required response time windows defined by plant safety instrumented systems (SIS).

For water and wastewater treatment applications, the DC-TDIL01 monitors pump station status, flow switch inputs, and level switch signals across geographically distributed lift stations and treatment facilities. Its compatibility with the TDC 3000 UCN enables long-distance signal aggregation without sacrificing scan rate or diagnostic capability.

In mining and metallurgical processing environments, where conveyor systems, crushers, and smelting equipment generate significant electrical noise, the DC-TDIL01’s robust input filtering and optical isolation maintain signal fidelity under adverse electromagnetic conditions. The module’s extended operating temperature range supports deployment in both climate-controlled control rooms and field-mounted enclosures in harsh environments.

For pharmaceutical and food-grade manufacturing facilities operating under GMP and FDA compliance requirements, the DC-TDIL01 provides the audit-ready, diagnostics-capable digital input acquisition required for validated control systems. Its online self-diagnostic capability supports continuous system health monitoring without requiring process shutdown for module verification.

Product Compatibility FAQ

Q1: Is the DC-TDIL01 compatible with both HPM and PM (Process Manager) racks in the TDC 3000 system?
The DC-TDIL01 is designed for use within the TDC 3000 I/O subsystem and is primarily validated for HPM rack configurations. Compatibility with legacy PM racks should be verified against the specific TDC 3000 system revision and I/O link firmware version in use at your facility. Our technical team can assist with compatibility verification prior to procurement to ensure seamless integration with your existing architecture.

Q2: Can the DC-TDIL01 be replaced online without shutting down the TDC 3000 system?
The TDC 3000 platform supports online module replacement (hot-swap) for I/O modules in appropriately configured HPM racks, subject to the specific system configuration and redundancy architecture in place. The DC-TDIL01’s channel-level diagnostics allow maintenance personnel to identify a faulty module and prepare for replacement while the system remains in operation. All replacement modules supplied by ZYPLC are tested and verified prior to shipment, covered under our warranty terms confirmed during quotation, to minimize commissioning time during the replacement procedure.

Q3: What is the recommended maintenance strategy for DC-TDIL01 modules in long-term TDC 3000 installations?
For TDC 3000 installations with extended operational lifecycles, we recommend maintaining a strategic spare inventory of DC-TDIL01 modules to support rapid replacement in the event of module failure. ZYPLC provides tested, verified spare modules with full warranty terms confirmed during quotation coverage, ensuring that your spare inventory is deployment-ready at all times. Periodic diagnostic review using the TDC 3000 system’s built-in module health monitoring tools is also recommended to identify early-stage degradation before it impacts process availability. Our team provides system integration support to assist with spare parts planning, system architecture review, and long-term maintenance strategy development.
