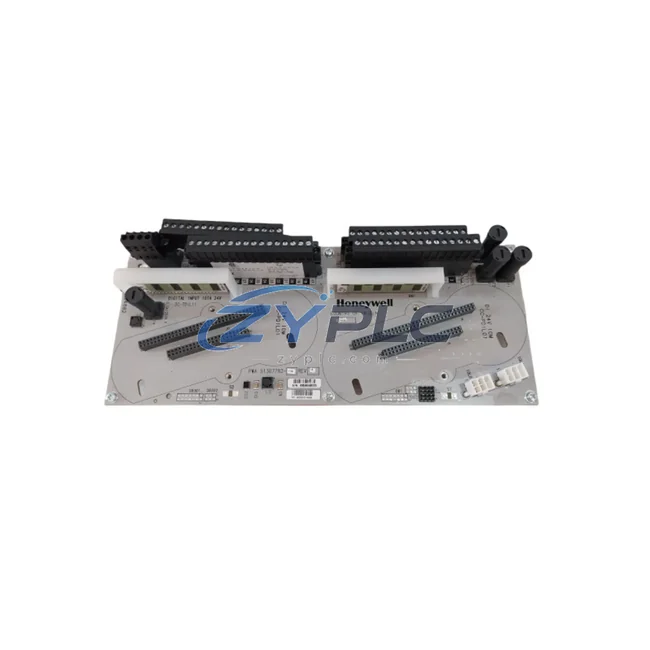

Honeywell DC-TDIL11 Digital Input Module for TDC 3000 Systems

Honeywell DC-TDIL11 Industrial Network Interface for TDC 3000 Systems: Bridging Field Devices and Smart Factory Data Links

The Honeywell DC-TDIL11 is a 24V DC redundant digital input module engineered for the TDC 3000 Distributed Control System (DCS) platform. Designed to serve as a critical node in industrial data acquisition chains, the DC-TDIL11 captures discrete field signals from sensors, limit switches, valve position feedback, and safety interlocks, converting them into structured digital data that flows seamlessly into the TDC 3000 control network. In modern smart factory environments where real-time visibility and system reliability are non-negotiable, this module delivers the signal integrity and redundancy that process engineers depend on.

As industrial facilities transition toward fully connected automation architectures, the DC-TDIL11 occupies a foundational role in the data pipeline — from raw field-level signal acquisition through protocol-compliant transmission to supervisory control layers. Its IOTA (Input/Output Termination Assembly) redundant design ensures that no single point of failure can interrupt the continuous flow of process data, making it an essential component in high-availability DCS configurations across oil and gas, chemical processing, power generation, and advanced manufacturing.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated TDC 3000 environment, the DC-TDIL11 sits at the edge of the control network, collecting binary state signals from field instruments and feeding them upstream through the Honeywell Local Control Network (LCN). This data flow begins at the physical layer — pressure switches, temperature limit contacts, motor run/stop feedback, and emergency shutdown (ESD) signals — all of which are wired directly to the DC-TDIL11’s IOTA termination assembly.

Once acquired, these discrete signals are transmitted in real time to the Honeywell Process Manager (PM) or Advanced Process Manager (APM) controllers, which execute the control logic and pass processed data up to the Universal Station (US) or Global User Station (GUS) HMI consoles. Operators monitoring the plant from these HMI workstations receive live alarm states, interlock status, and equipment health indicators derived directly from the DC-TDIL11’s input channels.

For facilities running hybrid architectures, the DC-TDIL11 data stream can be bridged to modern systems via the Honeywell Experion PKS platform using a TDC-to-Experion Gateway, enabling legacy TDC 3000 I/O to appear natively within contemporary SCADA dashboards. This integration path is commonly used alongside Honeywell HC900 hybrid controllers and Modbus TCP/IP gateway modules that translate TDC 3000 proprietary protocol data into open industrial standards accessible by third-party SCADA systems such as Wonderware, iFIX, or Ignition.

In remote I/O expansion scenarios, the DC-TDIL11 works in conjunction with Honeywell LLMUX (Low-Level Multiplexer) units and Data Hiway repeaters to extend the digital input network across large plant footprints without signal degradation. Variable frequency drives (VFDs) and motor control centers (MCCs) equipped with digital run/fault feedback contacts connect directly to the DC-TDIL11, providing the DCS with real-time drive status that feeds into automated alarm management and predictive maintenance workflows.

Edge computing nodes and industrial IoT gateways — such as those running on the Honeywell Connected Plant framework — can subscribe to the DC-TDIL11’s data points via OPC-DA or OPC-UA server interfaces layered above the TDC 3000 network, enabling cloud-based analytics, remote diagnostics, and AI-driven process optimization without disrupting the underlying control architecture.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is data isolation — where field-level signals remain trapped within proprietary control networks, invisible to modern analytics platforms, ERP systems, and remote operations centers. The Honeywell DC-TDIL11, when properly integrated within the TDC 3000 architecture, directly addresses this challenge by providing a reliable, redundant digital input pathway that can be exposed to higher-level systems through protocol gateway solutions.

Plants operating mixed-vendor environments — where Honeywell TDC 3000 coexists with Siemens S7 PLCs, Allen-Bradley ControlLogix systems, or Schneider Electric Modicon controllers — often face protocol incompatibility that creates blind spots in SCADA visibility. By deploying the DC-TDIL11 alongside dedicated protocol conversion gateways (supporting Modbus RTU, Modbus TCP, PROFIBUS DP, or EtherNet/IP), operations teams can unify discrete input data from all control platforms into a single SCADA namespace, eliminating data silos and enabling plant-wide transparency.

Remote monitoring is another area where the DC-TDIL11 delivers measurable value. Its redundant IOTA design ensures that digital input data continues to flow even during module maintenance or partial hardware failure, supporting uninterrupted remote diagnostics from centralized operations centers. Maintenance engineers can monitor interlock states, valve positions, and equipment run status from remote HMI clients without requiring physical presence on the plant floor — reducing response times and operational risk.

For production line transparency and OEE (Overall Equipment Effectiveness) tracking, the DC-TDIL11’s discrete input channels provide the raw event data — machine cycle counts, downtime signals, batch completion pulses — that MES (Manufacturing Execution Systems) and analytics platforms require to calculate real-time performance metrics. System expansion is straightforward: additional DC-TDIL11 modules can be added to the TDC 3000 I/O subsystem without architectural redesign, supporting phased capacity growth aligned with production scaling requirements.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell DC-TDIL11 support, and can it integrate with non-Honeywell SCADA systems?
The DC-TDIL11 operates natively on the Honeywell TDC 3000 Local Control Network (LCN) and Data Hiway protocols. Integration with non-Honeywell SCADA systems is achieved through protocol gateway solutions — such as OPC-DA/UA servers, Modbus TCP gateways, or the Honeywell Experion PKS bridge — which translate TDC 3000 proprietary data into open industrial standards compatible with Wonderware, iFIX, Ignition, and other SCADA platforms.

Q2: How does the redundant IOTA design of the DC-TDIL11 ensure network stability and minimize downtime?
The IOTA (Input/Output Termination Assembly) redundant architecture provides dual-channel signal paths for each digital input. In the event of a primary channel fault, the secondary channel automatically assumes data acquisition without interrupting the control loop or triggering false alarms. This hot-standby redundancy is critical for high-availability applications in oil and gas, power generation, and chemical processing where unplanned downtime carries significant safety and financial consequences.

Q3: What is the typical communication latency of the DC-TDIL11 within a TDC 3000 DCS network?
Within the TDC 3000 LCN architecture, digital input scan cycles are typically in the range of 100–500 milliseconds depending on system configuration and network load. For time-critical applications requiring faster response, the DC-TDIL11 can be configured within high-speed scan groups, and the TDC 3000 system supports prioritized interrupt-driven processing for safety-critical digital inputs such as ESD signals.

Q4: Does the DC-TDIL11 come with a warranty, and has it been tested prior to shipment?
Yes. Every Honeywell DC-TDIL11 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Each module undergoes pre-shipment functional verification testing to confirm digital input channel integrity, communication bus connectivity, and redundancy switchover performance before dispatch. Verified inventory is maintained RFQ Available for rapid fulfillment, with global shipping available to support urgent project timelines.
