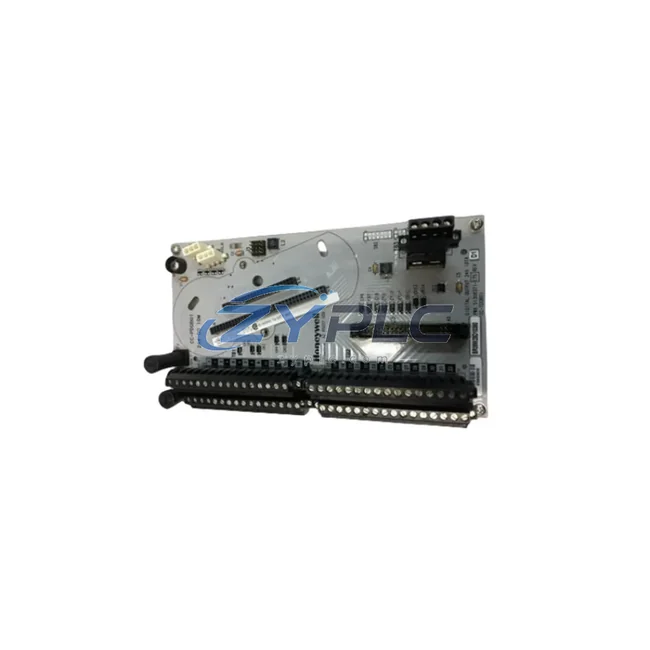

Honeywell DC-TDOB11 Digital Output for DC Series

Honeywell DC-TDOB11 Digital Output for DC Series

The Honeywell DC-TDOB11 is a high-reliability digital output module engineered for seamless integration within the Honeywell TDC 3000 and DC Series Distributed Control System (DCS) architecture. Rather than functioning as a standalone component, the DC-TDOB11 occupies a critical position within the layered automation hierarchy — bridging the control layer’s command logic with the physical execution layer’s actuators, solenoids, motor starters, and on/off control devices. Its design philosophy centers on system consistency, deterministic signal delivery, and long-term maintainability across complex industrial environments.

In a fully realized DC Series control architecture, the DC-TDOB11 operates downstream of the process controller nodes — such as the Honeywell PM (Process Manager) or HPM (High-Performance Process Manager) — receiving discrete output commands and translating them into field-level switching signals. This signal flow is tightly coordinated with the system’s I/O bus infrastructure, ensuring that output state changes are executed with the timing precision required for process-critical applications. The module’s compatibility with the standard DC Series I/O carrier and backplane system means it can be installed alongside analog output modules like the DC-TAOX11, analog input modules such as the DC-TAIX11, and digital input counterparts like the DC-TDIB11, creating a unified, mixed-signal I/O subsystem within a single rack assembly.

From a network and communication standpoint, the DC-TDOB11 participates in the broader LCN (Local Control Network) and UCN (Universal Control Network) ecosystem that defines Honeywell TDC 3000 system topology. Output commands originate at the operator station or engineering workstation level, traverse the LCN backbone, pass through the process controller, and are finally executed by modules like the DC-TDOB11 at the field I/O level. This multi-layer communication path ensures that every output action is logged, traceable, and consistent with the system’s overall process strategy — a requirement in regulated industries such as petrochemical refining, pharmaceutical batch processing, and power generation.

Power layer integration is equally important. The DC-TDOB11 draws its operating power from the DC Series I/O power supply infrastructure, typically supported by redundant power supply modules to eliminate single points of failure. In high-availability architectures, the output module rack is paired with redundant power feeds, ensuring that a power supply fault does not interrupt field device control. This design aligns with the broader redundancy philosophy of the TDC 3000 platform, where controller redundancy, I/O redundancy, and network redundancy are layered to achieve the uptime targets demanded by continuous process industries.

At the human-machine interface layer, operators interact with the DC-TDOB11’s output states through Honeywell’s GUS (Global User Station) or the modern Experion PKS operator station, where discrete output faceplates display real-time status, allow manual override, and support alarm configuration. The seamless integration between the HMI layer and the physical output module ensures that operators have full visibility and control authority over every field device connected to the DC-TDOB11’s output channels — a critical capability during startup sequences, emergency shutdowns, and routine process transitions.

For system engineers and maintenance teams, the DC-TDOB11 offers significant advantages in terms of modularity and serviceability. Its hot-swap compatibility within the DC Series rack system allows for module replacement without full system shutdown, reducing maintenance windows and minimizing production impact. When combined with the Honeywell FTA (Field Termination Assembly) system — including dedicated digital output FTAs — field wiring remains permanently connected to the termination assembly while the I/O module itself can be extracted and replaced independently. This architecture dramatically reduces the risk of wiring errors during maintenance and accelerates return-to-service timelines.

Inventory availability and supply chain continuity are critical considerations for facilities operating legacy TDC 3000 and DC Series systems. ZYPLC maintains availability subject to RFQ confirmation of the DC-TDOB11 alongside complementary components including the DC-PDOB11, DC-PDIB11, DC-TAOX11, and DC-TAIX11, ensuring that system architects and maintenance planners can source complete I/O subsystem assemblies from a single, reliable supplier. All units are subject to functional verification prior to shipment and are covered by a warranty terms confirmed during quotation, providing procurement teams with the confidence required for long-term asset management planning.

Product Specification Table

System Compatibility Notes

The DC-TDOB11 achieves its full value when deployed as part of a coordinated DC Series I/O strategy. In a typical TDC 3000 cabinet assembly, the module shares rack space with the DC-TDIB11 digital input module, which reads field device status signals, and the DC-TAOX11 analog output module, which handles modulating control signals to control valves and variable-speed drives. Together, these modules form a complete mixed-signal I/O layer under the supervision of the HPM (High-Performance Process Manager) controller, which executes the control strategy and issues output commands at scan-rate intervals.

Power integrity for the entire I/O rack is maintained by the DC Series Power Supply Module, with redundant units configured in parallel to eliminate power-related single points of failure. Field wiring connects to the system via dedicated Digital Output FTAs (Field Termination Assemblies), which physically separate the I/O module from the field wiring harness — a design that simplifies module replacement and protects field connections during maintenance activities.

At the network layer, the Honeywell NIM (Network Interface Module) manages communication between the I/O subsystem and the LCN backbone, ensuring that output commands from the operator station or advanced control application reach the DC-TDOB11 with minimal latency. For facilities requiring enhanced network redundancy, dual NIM configurations provide automatic failover, maintaining output control continuity even during network segment faults.

Human-machine interface integration is achieved through the Honeywell GUS (Global User Station) or Experion PKS operator console, where discrete output faceplates provide real-time status visualization, manual control capability, and alarm management for every channel managed by the DC-TDOB11. This end-to-end integration — from operator intent at the HMI layer, through the controller, across the network, and down to the output module — defines the system coherence that makes the TDC 3000 platform a preferred choice for continuous process industries.

Industrial Application Notes

The DC-TDOB11 is deployed across a wide range of industrial sectors where reliable discrete output control is essential to process safety and operational efficiency.

In petroleum refining and petrochemical processing, the module controls solenoid-operated shutdown valves, motor starters for pump and compressor systems, and on/off control devices within safety instrumented systems. Its deterministic output behavior supports the precise sequencing required during unit startup, normal operation, and emergency shutdown procedures.

In power generation facilities — including thermal, combined-cycle, and cogeneration plants — the DC-TDOB11 manages discrete outputs for burner management systems, auxiliary equipment control, and balance-of-plant automation. Its compatibility with redundant controller and power architectures aligns with the high-availability requirements of grid-connected generation assets.

In water and wastewater treatment plants, the module provides reliable on/off control for pump stations, valve actuators, chemical dosing systems, and aeration equipment. Its long service life and hot-swap maintainability reduce operational disruption in facilities that operate continuously with minimal staffing.

In mining and mineral processing operations, the DC-TDOB11 supports conveyor control systems, crusher sequencing, and flotation cell management — environments characterized by high electrical noise, vibration, and demanding duty cycles that require robust, proven I/O hardware.

In pharmaceutical and food-grade manufacturing, the module’s integration with the TDC 3000 audit trail and batch management capabilities supports regulatory compliance requirements, providing traceable records of every discrete output state change throughout the production process.

Product Compatibility FAQ

Q1: Is the DC-TDOB11 compatible with both the TDC 3000 and the newer Experion PKS platform?
The DC-TDOB11 is a native DC Series I/O module designed for the TDC 3000 architecture. It operates within the DC Series I/O carrier and communicates via the UCN/LCN network infrastructure. Facilities migrating to Experion PKS typically retain their existing DC Series I/O subsystems through Honeywell’s C300 controller migration path, which preserves compatibility with legacy I/O hardware including the DC-TDOB11, protecting the existing field wiring and termination investment during phased migration projects.

Q2: Can the DC-TDOB11 be replaced without shutting down the entire I/O rack or controller?
Yes. The DC Series rack architecture supports hot-swap module replacement when used in conjunction with the appropriate FTA (Field Termination Assembly) configuration. Field wiring remains connected to the FTA while the I/O module is extracted and replaced, eliminating the need to disconnect field cables. The replacement module is recognized by the controller upon insertion, and output control resumes after a brief initialization sequence. This capability is critical for minimizing maintenance downtime in continuous process environments.

Q3: What warranty and quality assurance does ZYPLC provide for the DC-TDOB11?
All DC-TDOB11 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Prior to dispatch, each module undergoes functional verification testing to confirm output channel integrity, communication response, and electrical parameter compliance. ZYPLC maintains verified inventory of the DC-TDOB11 and compatible DC Series components, enabling rapid fulfillment for both planned maintenance procurement and emergency replacement requirements. For technical inquiries or order support, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
