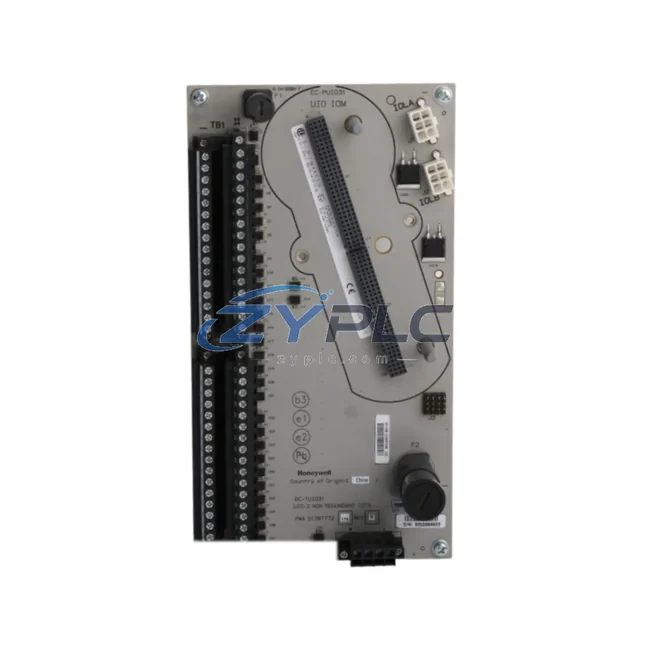

Honeywell DC-TUIO31 51307772-176 Analog Input for TDC 3000

Honeywell DC-TUIO31 51307772-176 Analog Input for TDC 3000 Control System

The Honeywell DC-TUIO31 51307772-176 is a precision analog input module engineered for seamless integration within the TDC 3000 Distributed Control System (DCS) architecture. Designed to operate as a critical node in the I/O layer of a multi-tier process automation environment, this module delivers reliable signal acquisition, high-resolution analog conversion, and deterministic data transmission to the control layer — ensuring system-wide consistency across the most demanding industrial applications.

In a fully layered automation architecture, the DC-TUIO31 51307772-176 occupies the field I/O tier, receiving 4–20 mA or voltage-based analog signals from field transmitters, sensors, and transducers, and converting them into digital process values that are passed upstream to the Honeywell TDC 3000 High-Performance Process Manager (HPM) or Basic Process Manager (BPM). This upstream-downstream signal flow is the backbone of real-time process visibility and closed-loop control, and the DC-TUIO31 ensures that signal integrity is maintained from the field device all the way to the operator console.

Product Specification Table

System Compatibility Notes

The DC-TUIO31 51307772-176 does not function in isolation — its value is realized through its role within a coordinated, multi-layer control system. In a typical TDC 3000 installation, this analog input module is mounted within a Honeywell TDC 3000 I/O Link Extender or standard I/O rack, sharing the backplane with complementary modules such as the DC-TAOX11 analog output module and the DC-TDIX11 digital input module. Together, these modules form a complete I/O subsystem that handles the full range of field signal types encountered in process automation.

At the control layer, the DC-TUIO31 interfaces directly with the Honeywell HPM (High-Performance Process Manager) or BPM (Basic Process Manager), which executes the control algorithms and regulatory loops that govern process behavior. The HPM reads the digitized analog values from the DC-TUIO31 at scan rates consistent with the process dynamics, enabling tight PID control, cascade loops, and feedforward strategies without latency-induced instability.

Network communication between the I/O layer and the control layer is handled via the Honeywell Universal Control Network (UCN) or the Local Control Network (LCN), depending on the system topology. These deterministic, token-passing networks ensure that process data from the DC-TUIO31 reaches the HPM and the Honeywell GUS (Global User Station) operator console with predictable timing — a critical requirement in safety-critical and high-throughput process environments.

For human-machine interface functions, the GUS workstation or Honeywell PHD (Process History Database) server aggregates the analog input data from the DC-TUIO31 for real-time trending, alarm management, and historical analysis. This integration supports operator situational awareness and enables engineering teams to perform root-cause analysis and process optimization using long-term data records.

Power distribution to the I/O rack housing the DC-TUIO31 is typically managed by a Honeywell TDC 3000 Power Supply Module, which provides regulated DC power to the backplane and all installed I/O modules. In high-availability installations, redundant power supply configurations ensure that a single power supply failure does not interrupt I/O scanning or control execution. The DC-TUIO31 is fully compatible with these redundant power architectures, making it suitable for continuous process environments where unplanned shutdowns carry significant operational and safety consequences.

For installations requiring field-side signal conditioning or terminal connectivity, the DC-TUIO31 is paired with Honeywell TDC 3000 Field Termination Assemblies (FTAs) or marshalling panels that consolidate field wiring before it reaches the I/O module. This approach simplifies commissioning, reduces wiring errors, and accelerates troubleshooting during maintenance windows. The structured wiring architecture also supports hot-swap module replacement, allowing maintenance teams to replace a faulty DC-TUIO31 without interrupting adjacent I/O channels or requiring a full system shutdown.

Industrial Application Notes

The Honeywell DC-TUIO31 51307772-176 is deployed across a wide range of process industries where the TDC 3000 platform has established a long operational track record. In petroleum refining and petrochemical processing, the module acquires analog signals from pressure transmitters, flow meters, and temperature sensors distributed across distillation columns, reactors, and heat exchangers. The high-resolution analog conversion ensures that small process deviations are detected early, enabling the HPM to initiate corrective control actions before product quality or safety margins are compromised.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the DC-TUIO31 monitors critical parameters such as steam pressure, turbine inlet temperature, and feedwater flow. The module’s compatibility with the TDC 3000 redundant I/O architecture means that analog input data remains available to the control system even during partial hardware failures, supporting the high-availability requirements of grid-connected generation assets.

In water and wastewater treatment plants, the DC-TUIO31 integrates with the TDC 3000 system to monitor dissolved oxygen levels, pH, turbidity, and flow rates across treatment stages. The module’s ability to accept standard 4–20 mA signals from a wide variety of field instruments makes it compatible with the diverse sensor ecosystems found in municipal and industrial water treatment facilities.

For mining and metallurgical operations, the DC-TUIO31 supports analog signal acquisition from conveyor load cells, crusher pressure sensors, and flotation cell level transmitters. The module’s robust industrial design and compatibility with the TDC 3000 I/O rack environment ensures reliable operation in the high-vibration, high-dust conditions characteristic of mineral processing facilities.

In pharmaceutical and fine chemical manufacturing, where batch process control and regulatory compliance are paramount, the DC-TUIO31 provides the analog input infrastructure needed to monitor reactor temperatures, agitator speeds, and vessel pressures with the accuracy and repeatability required by GMP (Good Manufacturing Practice) standards. The warranty terms confirmed during quotation and documented system integration support simplify the validation and qualification activities required for regulated manufacturing environments.

Product Compatibility FAQ

Q1: Is the DC-TUIO31 51307772-176 compatible with both HPM and BPM controllers in the TDC 3000 system?
Yes. The DC-TUIO31 is designed for use within the TDC 3000 I/O subsystem and is compatible with both the High-Performance Process Manager (HPM) and the Basic Process Manager (BPM). The module communicates via the standard TDC 3000 I/O bus and backplane interface, and its analog input data is accessible to any TDC 3000 controller configured to scan the associated I/O rack. When integrating this module into an existing system, verify the I/O rack address configuration and ensure that the HPM or BPM database includes the corresponding point definitions for the new analog input channels.

Q2: Can the DC-TUIO31 be installed in a redundant I/O configuration, and what are the architecture requirements?
The DC-TUIO31 supports installation in TDC 3000 redundant I/O architectures where dual I/O racks or redundant I/O link configurations are employed. In a redundant configuration, a primary and a secondary DC-TUIO31 module are installed in mirrored rack positions, with the TDC 3000 system automatically switching to the secondary module in the event of a primary module failure. This configuration requires compatible redundant I/O rack hardware and appropriate HPM or BPM configuration to enable automatic failover. The warranty terms confirmed during quotation covers both primary and secondary module installations, and ZYPLC supports RFQ sourcing for matched module pairs to support redundant architecture deployments.

Q3: What commissioning steps are required when replacing a DC-TUIO31 in a live TDC 3000 system, and how does the warranty terms confirmed during quotation apply?
Replacing a DC-TUIO31 in a live TDC 3000 system typically involves placing the affected I/O channels in manual mode at the HPM or BPM level, physically removing the faulty module from the I/O rack, installing the replacement DC-TUIO31, and verifying that the new module is recognized by the TDC 3000 system and that all analog input channels return to their expected engineering unit values. In systems with hot-swap capable I/O racks, this process can be completed without a full system shutdown. The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed through our technical support team at plc.sales@zyplc.com, and replacement units are dispatched to minimize system downtime.
