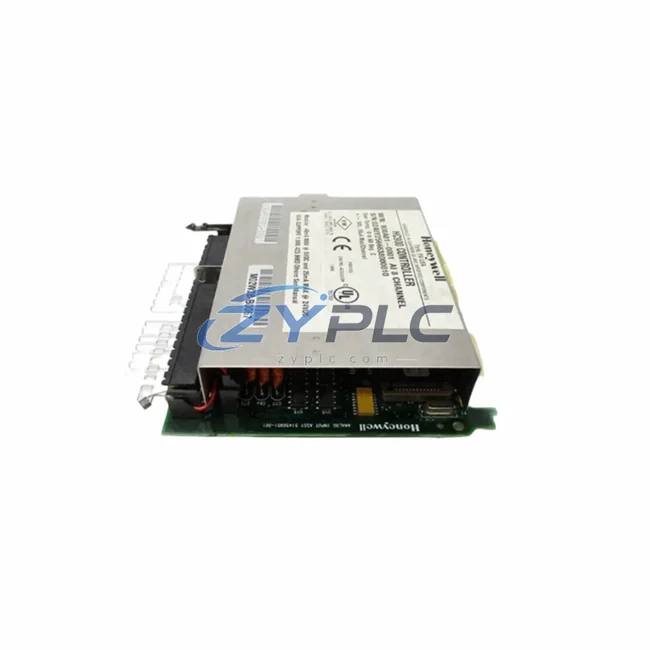

Honeywell DL2-742-0001 Analog Input for DL2-700

Honeywell DL2-742-0001 Analog Input for DL2-700

The Honeywell DL2-742-0001 is a precision analog input module engineered for seamless integration within the DL2-700 series distributed control architecture. Rather than functioning as a standalone component, this module is designed to operate as a critical node within a layered automation system — bridging field-level instrumentation with the supervisory control layer through reliable, high-resolution signal acquisition. Its role in the overall control hierarchy makes it an indispensable element for engineers designing or maintaining process-critical environments where signal fidelity, system consistency, and long-term operational stability are non-negotiable.

In modern industrial automation, the analog input layer serves as the sensory foundation of the entire control system. The DL2-742-0001 accepts standard analog signals — typically 4–20 mA current loops or 0–10 V voltage inputs — from field transmitters such as pressure sensors, temperature transducers, flow meters, and level detectors. These signals are digitized and passed upstream to the DL2-700 series CPU module, where they are processed against control logic, setpoints, and interlock conditions. The accuracy and stability of this signal chain directly determines the quality of closed-loop control across the entire process.

Product Specification Table

System Compatibility Notes

The DL2-742-0001 achieves its full potential only when considered within the broader DL2-700 system architecture. At the control layer, the Honeywell DL2-700 CPU module serves as the central processing unit, executing scan cycles and managing all I/O data exchange across the backplane. The DL2-742-0001 feeds real-time analog process values directly into this CPU’s data table, enabling precise PID loop execution and alarm management.

Power integrity is maintained by the Honeywell DL2-700 series power supply module, which provides regulated DC voltage to all rack-mounted modules including the DL2-742-0001. In redundant system designs, a secondary power supply module can be paired to eliminate single-point power failure — a critical requirement in continuous process industries such as petrochemical refining and power generation.

The backplane itself — the DL2-700 series rack and backplane assembly — provides the physical and electrical interconnect between the CPU, power supply, and all I/O modules. Proper slot assignment and backplane configuration are essential during commissioning to ensure the DL2-742-0001 is correctly addressed within the CPU’s I/O map.

On the digital side, Honeywell DL2-700 digital input and digital output modules complement the analog input function of the DL2-742-0001 by handling discrete signals from limit switches, solenoid valves, motor starters, and relay outputs. Together, these modules form a complete I/O layer capable of managing both continuous process variables and discrete event-driven control.

For systems requiring remote I/O expansion or multi-rack configurations, Honeywell DL2-700 series communication gateway modules extend the control network across Modbus RTU, Modbus TCP/IP, or proprietary Honeywell fieldbus protocols. This allows the DL2-742-0001 to be deployed in distributed rack configurations without sacrificing scan time performance or data integrity.

At the human-machine interface layer, Honeywell operator interface terminals or compatible SCADA workstations display the analog values acquired by the DL2-742-0001 in real time. Trend displays, alarm banners, and process graphics are all driven by the data this module delivers — making its calibration accuracy and channel reliability directly visible to plant operators.

Terminal block assemblies and DL2-700 compatible field wiring modules provide the physical connection point between field instrument cables and the DL2-742-0001’s input terminals. Proper shielding, grounding, and cable routing at this layer are essential to maintaining signal quality, particularly in electrically noisy environments such as motor control centers or high-voltage switchgear rooms.

Industrial Application Notes

The DL2-742-0001 is deployed across a wide range of industrial sectors where analog process measurement is fundamental to safe and efficient operation.

In power generation and utilities, this module monitors turbine inlet temperatures, steam pressure, and generator output parameters — feeding critical analog data to the DL2-700 CPU for protective relay logic and load-following control. Its channel isolation capability prevents ground loop interference from corrupting measurements in high-voltage environments.

In petrochemical and refinery applications, the DL2-742-0001 interfaces with pressure transmitters and flow meters across distillation columns, heat exchangers, and reactor vessels. The module’s compatibility with 4–20 mA HART-capable transmitters (where supported by the DL2-700 platform) enables advanced diagnostics without additional wiring infrastructure.

In water and wastewater treatment, the module acquires pH, dissolved oxygen, turbidity, and flow rate signals from field analyzers. These values drive dosing pump control, aeration blower speed regulation, and effluent quality monitoring — all managed through the DL2-700 CPU’s control logic.

In mining and metallurgical processing, the DL2-742-0001 handles analog signals from conveyor load cells, crusher motor current transducers, and flotation cell level sensors. Its robust industrial design ensures reliable operation in dusty, vibration-prone environments typical of mineral processing facilities.

In packaging and discrete manufacturing, the module supports tension control, web speed measurement, and fill-level verification — integrating seamlessly with servo drives and vision systems through the DL2-700 architecture’s coordinated I/O management.

Product Compatibility FAQ

Q1: Is the DL2-742-0001 compatible with all DL2-700 series rack configurations, and can it be mixed with digital I/O modules in the same rack?
Yes. The DL2-742-0001 is designed for the DL2-700 series backplane and can be installed in any available I/O slot within a DL2-700 rack. It can coexist with digital input modules, digital output modules, and other analog modules in the same rack, provided the CPU’s I/O configuration is updated to reflect the correct slot assignments. Always verify the rack’s total power budget when adding modules to ensure the power supply module is not overloaded.

Q2: How does the DL2-742-0001 support redundant system architectures, and what happens if the module fails during operation?
In standard DL2-700 configurations, I/O module redundancy is achieved at the system level through hot-standby CPU pairs and redundant communication paths rather than individual module mirroring. If the DL2-742-0001 fails, the CPU will detect the loss of analog input data and trigger configured fault routines — typically driving outputs to safe states and generating operator alarms. For applications requiring continuous analog input availability, a spare DL2-742-0001 should be maintained on-site. ZYPLC maintains ready stock of this module with a warranty terms confirmed during quotation to support rapid replacement and minimize unplanned downtime.

Q3: What commissioning steps are required when installing the DL2-742-0001 into an existing DL2-700 system, and how is long-term calibration managed?
Installation requires physical insertion into the correct backplane slot, followed by updating the CPU’s I/O configuration file to recognize the new module address. Field wiring should be connected to the module’s terminal block with attention to signal polarity, shielding continuity, and loop power supply requirements for 4–20 mA transmitters. After wiring, perform a loop calibration check by injecting known reference signals and verifying the CPU’s data table reflects accurate engineering unit values. For long-term maintenance, annual calibration verification is recommended, along with periodic inspection of terminal connections for corrosion or loosening. ZYPLC provides technical support throughout the module’s operational life, backed by a warranty terms confirmed during quotation from the date of shipment.
