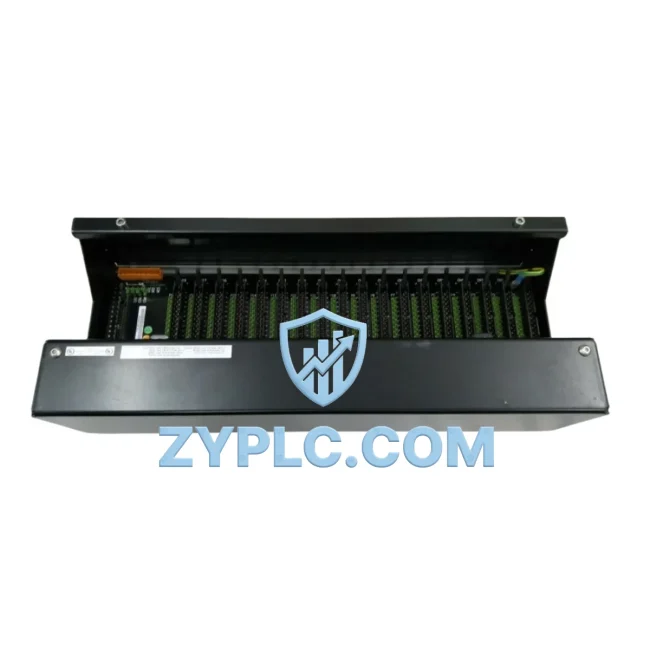

Honeywell EM9118B2-6 Industrial Network Interface for Experion PKS Systems

Honeywell EM9118B2-6 Industrial Network Interface for Experion PKS Systems: Precision Data Links for Smart Factory Connectivity

The Honeywell EM9118B2-6 is a 6-channel analog input module and industrial network interface engineered for seamless integration within the Experion PKS Distributed Control System (DCS) architecture. Positioned as a critical gateway node in the industrial data chain, this module captures 4–20 mA analog signals from field-level sensors and transmitters, converts them into structured process data via HART protocol, and delivers real-time values to the Experion PKS controller network. Whether deployed in oil and gas, chemical processing, power generation, or advanced manufacturing, the EM9118B2-6 ensures that every field signal is accurately represented at the supervisory and SCADA layer — eliminating data isolation and enabling full production line transparency.

In modern smart factory environments, the integrity of the data link between field instruments and upper-level systems is non-negotiable. The EM9118B2-6 addresses this requirement by supporting HART (Highway Addressable Remote Transducer) communication on each of its six input channels. This dual-layer capability — simultaneous 4–20 mA analog transmission and HART digital overlay — allows operators to retrieve device diagnostics, calibration data, and status information from HART-enabled transmitters without interrupting the primary process signal. The result is a continuous, high-fidelity data stream from the sensor to the DCS controller, and ultimately to the SCADA and HMI layers where operators make real-time decisions.

Network Communication Table

Connected Automation Data Flow

The EM9118B2-6 sits at the heart of a layered industrial automation architecture, acting as the primary protocol gateway between physical field devices and the digital control fabric. At the field level, HART-enabled pressure transmitters, temperature sensors, and flow meters connect directly to the module’s six input channels. The module reads both the 4–20 mA process variable and the HART digital signal simultaneously, forwarding structured data to the Honeywell C300 Controller — the primary processing unit within the Experion PKS platform — via the high-speed FTE (Fault Tolerant Ethernet) backplane network.

From the C300 Controller, process data is distributed across the Experion PKS server infrastructure, where it becomes available to Honeywell Experion Operator Stations and Station HMI terminals for real-time visualization. Operators monitoring the plant floor can view live analog values, trend histories, and HART device health indicators without leaving the control room. Simultaneously, the data is forwarded to the plant’s SCADA system — integrated via OPC-DA or OPC-UA protocol gateways — enabling enterprise-level reporting, KPI dashboards, and remote monitoring from centralized operations centers.

In multi-loop control scenarios, the EM9118B2-6 works in parallel with Honeywell analog output modules such as the EM9124B2-8, which handles the return signal path to control valves and actuators. Remote I/O cabinets equipped with Honeywell’s IOLIM (I/O Link Interface Module) extend the reach of the Experion PKS network to geographically distributed field junction boxes, ensuring that even remote measurement points contribute to the plant-wide data fabric. For sites integrating legacy Modbus RTU devices alongside HART instruments, dedicated protocol conversion gateways bridge the two communication domains, feeding unified data into the Experion PKS historian for long-term storage and compliance reporting.

Variable frequency drives (VFDs) connected to motor control centers also participate in this data ecosystem. Drive status, speed feedback, and fault codes are collected via Profibus DP or Modbus TCP interfaces and merged with the analog process data from the EM9118B2-6 at the DCS controller level. This convergence of field signals — from pressure and temperature to motor speed and valve position — creates a comprehensive process picture that supports advanced process control (APC) strategies and predictive maintenance programs. Edge computing gateways installed at the field cabinet level can pre-process HART diagnostic data from the EM9118B2-6 channels, flagging instrument drift or loop integrity issues before they escalate into process upsets. Industrial Ethernet switches with managed QoS settings ensure that real-time control traffic from the EM9118B2-6 is prioritized over bulk data transfers across the plant network backbone.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of process data across incompatible protocols, legacy systems, and isolated control islands. The Honeywell EM9118B2-6 directly addresses this challenge by serving as a standardized, protocol-aware network interface between the physical process and the digital control layer.

Sites that rely on conventional 4–20 mA wiring without HART often face a critical limitation: the analog signal carries only the primary process variable, leaving device health, calibration status, and secondary variables invisible to the control system. The EM9118B2-6 eliminates this blind spot by activating the HART digital channel on each input, making device-level intelligence available to the Experion PKS system without requiring additional wiring or infrastructure investment. This capability is foundational to achieving production line transparency — operators can see not just what the process is doing, but whether the instruments measuring it are functioning correctly.

For plants undergoing digital transformation, the EM9118B2-6 provides a clear migration path. Existing 4–20 mA field wiring is preserved, while HART communication unlocks access to advanced diagnostics, remote configuration, and multi-variable measurement. This approach reduces the capital cost of modernization while delivering the data richness required for SCADA integration, OEE (Overall Equipment Effectiveness) tracking, and regulatory compliance reporting. System expansion is straightforward: additional EM9118B2-6 modules can be added to the Experion PKS I/O chassis without disrupting existing control loops, supporting phased capacity growth aligned with production demands.

Remote diagnostics capability is another key advantage. Maintenance engineers can interrogate HART devices connected to the EM9118B2-6 from the Experion PKS workstation, retrieving loop current, device temperature, sensor limits, and fault codes without dispatching technicians to the field. This remote visibility reduces mean time to repair (MTTR), lowers maintenance costs, and supports the shift from reactive to predictive maintenance strategies that define Industry 4.0 operations. Alarm management systems integrated at the SCADA layer receive structured fault notifications from the EM9118B2-6 HART diagnostic channel, enabling operators to respond to instrument failures before they impact process stability or product quality.

Industrial Connectivity FAQ

Q1: Does the Honeywell EM9118B2-6 support simultaneous HART communication on all six channels?
Yes. The EM9118B2-6 supports HART communication on each of its six analog input channels independently. Both the 4–20 mA primary variable and HART digital data are processed simultaneously, allowing the Experion PKS system to access device diagnostics and secondary variables from all connected field instruments without signal interruption or multiplexing delays. This ensures zero-latency impact on primary control loop performance.

Q2: What is the communication latency between the EM9118B2-6 and the Experion PKS C300 Controller?
The EM9118B2-6 communicates with the C300 Controller via the Experion PKS high-speed FTE backplane, which operates at deterministic scan rates typically configured between 100 ms and 500 ms depending on the control strategy. HART polling for secondary variables and diagnostics occurs on a separate, lower-priority cycle and does not impact the primary analog scan rate or control loop performance, ensuring network stability under full load.

Q3: Is the EM9118B2-6 compatible with third-party SCADA systems and OPC servers?
Yes. Data acquired by the EM9118B2-6 is processed by the Experion PKS server, which supports OPC-DA and OPC-UA interfaces. This allows third-party SCADA platforms, MES systems, and historian databases to subscribe to real-time and historical process data from the EM9118B2-6 channels using standard industrial communication protocols, ensuring broad system compatibility and seamless integration with existing plant infrastructure.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the EM9118B2-6?
All Honeywell EM9118B2-6 modules supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify analog input accuracy, HART communication integrity, and backplane interface performance. In-stock units are available for immediate dispatch with global shipping support, and our technical team provides post-sale assistance for installation, configuration, and system integration queries.
