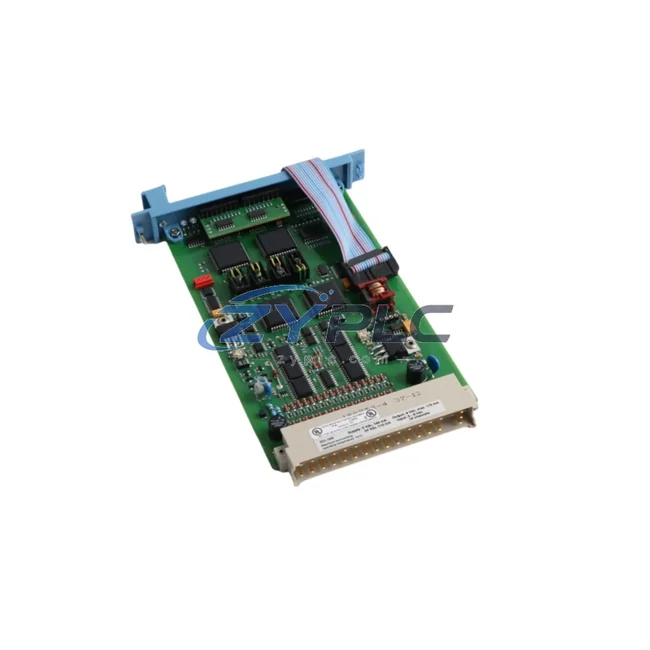

Honeywell FC-DO-1624 Digital Output Module for FSC

Honeywell FC-DO-1624 Digital Output Module: Coordination and Downstream Execution Layer Integration

The Honeywell FC-DO-1624 is a 16-channel digital output module engineered specifically for deployment within the Honeywell FSC (Fail Safe Controller) Safety Manager platform — one of the most widely adopted safety-rated control architectures in process-critical industries worldwide. Rather than functioning as a standalone component, the FC-DO-1624 is designed from the ground up to operate as an integral node within a layered automation system, where its role spans the boundary between the control layer and the physical execution layer. Understanding this module’s value requires examining how it interacts with every tier of the FSC architecture: from the central processing unit and backplane infrastructure, through the I/O bus and communication network, down to the field devices and actuators it ultimately commands.

In a fully configured FSC Safety Manager system, the FC-DO-1624 occupies a defined slot within the FSC rack assembly, sharing the backplane with the central processing module — typically the FC-CPU-0702 or FC-CPU-0802 — and drawing its operational logic directly from the safety-rated scan cycle managed by the CPU. The backplane itself, such as the FC-BP-0802 or FC-BP-1602 chassis, provides the physical and electrical backbone that allows the FC-DO-1624 to receive output commands at deterministic intervals, ensuring that actuator response times remain within the tolerances demanded by SIL 2 and SIL 3 certified safety functions. This tight coupling between the CPU, backplane, and output module is what distinguishes FSC-based architectures from general-purpose PLC systems: every component is validated as part of a coherent safety loop, not merely as an individual device.

The FC-DO-1624 supports 16 discrete digital output channels, each capable of driving solenoid valves, motor starters, relay coils, and other field actuators at 24 VDC. Its output circuitry incorporates internal diagnostics that continuously verify channel integrity, detecting open-load conditions, short circuits, and supply voltage deviations without interrupting normal operation. These diagnostics feed directly into the FSC system’s fault management layer, where the FC-CPU processes diagnostic data alongside process variables to determine whether a safe-state transition is required. This closed-loop diagnostic architecture is essential in applications where a failed output channel must be detected and reported before it can compromise a safety function — a requirement that is non-negotiable in sectors such as oil and gas, chemical processing, and power generation.

Product Specification Table

System Compatibility Notes

The FC-DO-1624 achieves its full potential only when integrated within a coherent FSC system architecture. At the processing core, the FC-CPU-0702 or FC-CPU-0802 central processing unit executes the safety application program and generates the output commands that the FC-DO-1624 translates into physical actuator signals. The CPU communicates with the output module via the FSC backplane bus — a deterministic, high-speed internal bus that eliminates the latency and variability associated with external fieldbus connections at the I/O layer.

On the input side of the same rack, FC-DI-1624 digital input modules and FC-AI-1622 analog input modules collect process signals from field sensors, transmitters, and switches. These input values are processed by the FC-CPU alongside the safety logic, and the resulting output commands are dispatched to the FC-DO-1624 within the same scan cycle. This synchronous input-to-output data flow is fundamental to maintaining the response time budgets required by SIL-rated safety functions.

For systems requiring analog output capability — for example, to modulate control valves or variable-speed drives — the FC-AO-0822 analog output module can be installed in adjacent rack slots, sharing the same backplane and CPU resources as the FC-DO-1624. This allows a single FSC rack to manage both discrete and continuous control outputs within a unified safety architecture, reducing the number of separate control cabinets and simplifying system validation.

Communication beyond the local rack is handled by dedicated gateway modules such as the FC-GATEWAY or Honeywell’s Modbus/PROFIBUS interface cards, which bridge the FSC internal bus to plant-level networks including PROFIBUS DP, Modbus RTU, and OPC-based supervisory systems. This network layer integration allows the FC-DO-1624’s channel status and diagnostic data to be surfaced in the plant DCS or SCADA system — typically a Honeywell Experion PKS or a third-party supervisory platform — without compromising the integrity of the safety network.

At the power layer, the FC-PS-0801 or equivalent FSC power supply module provides regulated 24 VDC to the rack, with redundant power supply configurations available for applications where power continuity is a safety requirement. The FC-DO-1624’s output channels draw their load current from this regulated supply, and the module’s internal diagnostics monitor supply voltage continuously to detect brownout conditions before they can affect output channel reliability.

For human-machine interface requirements, Honeywell’s Station or third-party HMI panels connected via the gateway layer provide operators with real-time visibility into FC-DO-1624 channel states, diagnostic alarms, and safety function status. This HMI integration closes the loop between the execution layer — where the FC-DO-1624 drives physical actuators — and the operator layer, where process engineers monitor system health and respond to alarms.

Industrial Application Notes

The FC-DO-1624 is deployed across a wide range of process industries where safety-rated discrete output control is a regulatory and operational requirement.

In oil and gas production and refining, the FC-DO-1624 drives emergency shutdown (ESD) solenoid valves, blowdown valves, and fire and gas suppression actuators within FSC-based safety instrumented systems (SIS). Its SIL 2 capability and internal diagnostic coverage make it suitable for use in safety functions that must achieve a probability of failure on demand (PFD) within IEC 61511 requirements. Offshore platforms and onshore processing facilities rely on the FSC architecture — with the FC-DO-1624 at the execution layer — to manage hydrocarbon containment and personnel protection systems.

In chemical and petrochemical plants, the module controls reactor isolation valves, quench system actuators, and vent stack dampers. The deterministic response time of the FSC backplane bus ensures that the FC-DO-1624 can execute a safe-state output command within the process safety time budget, even under high CPU load conditions. This predictability is essential in batch reactor applications where a delayed output response could result in a runaway reaction.

In power generation and utilities, including gas turbine control, boiler management, and substation automation, the FC-DO-1624 interfaces with trip relay circuits, breaker control coils, and burner management system (BMS) actuators. Its compatibility with the broader FSC platform — including redundant CPU configurations using paired FC-CPU modules — supports the high-availability requirements of power generation assets where unplanned shutdowns carry significant financial and grid-stability consequences.

In water and wastewater treatment, the FC-DO-1624 controls pump motor starters, valve actuators, and chemical dosing systems within FSC-based control architectures. The module’s open-load diagnostic capability is particularly valuable in these applications, where a failed output channel driving a pump starter could result in process overflow or contamination events that are difficult to detect through process measurement alone.

In mining and metals processing, the FC-DO-1624 is used in conveyor control systems, crusher isolation circuits, and ventilation fan control applications. The module’s robust operating temperature range and compatibility with the FSC rack’s vibration-resistant mounting system make it suitable for deployment in control rooms adjacent to heavy processing equipment.

Product Compatibility FAQ

Q1: Is the FC-DO-1624 compatible with all FSC Safety Manager rack configurations, and can it be mixed with other I/O module types in the same chassis?
Yes. The FC-DO-1624 is designed for native installation in any standard FSC rack chassis — including the FC-BP-0802 (8-slot) and FC-BP-1602 (16-slot) backplanes — and can be freely mixed with FC-DI digital input modules, FC-AI analog input modules, and FC-AO analog output modules within the same rack. Slot assignment is configured in the FSC Safety Builder engineering tool, which validates the rack configuration against the CPU’s I/O capacity and generates the appropriate I/O mapping for the safety application program. No hardware jumpers or DIP switch settings are required for slot assignment.

Q2: What are the key considerations for integrating the FC-DO-1624 into a redundant FSC architecture, and does redundancy affect output channel behavior?
In redundant FSC configurations — where two FC-CPU modules operate in a primary/standby arrangement — the FC-DO-1624 continues to receive output commands from the active CPU via the backplane bus. During a CPU switchover event, the backplane bus transfers control to the standby CPU within the FSC’s defined switchover time, and the FC-DO-1624’s output channels maintain their last commanded state during the transition. This bumpless transfer behavior is critical in applications where an output state change during a CPU switchover could trigger an unintended process response. Engineers should verify that the safety application’s output hold logic is correctly configured in Safety Builder to ensure consistent behavior across switchover events.

Q3: What does the warranty terms confirmed during quotation cover for the FC-DO-1624, and what support is available for installation and commissioning?
Every FC-DO-1624 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. Prior to dispatch, each module undergoes functional testing to verify output channel operation, diagnostic response, and backplane communication integrity. During the warranty period, defective units are replaced or repaired at no additional cost. For installation and commissioning support, ZYPLC’s technical team can provide guidance on rack slot assignment, Safety Builder configuration, I/O mapping, and field wiring practices. Customers requiring on-site commissioning assistance or long-term maintenance contracts are encouraged to contact our sales team directly.
