Honeywell FC-IOBUS-HB2A Industrial Network Interface for Experion PKS

Honeywell FC-IOBUS-HB2A Industrial Network Interface for Experion PKS Systems

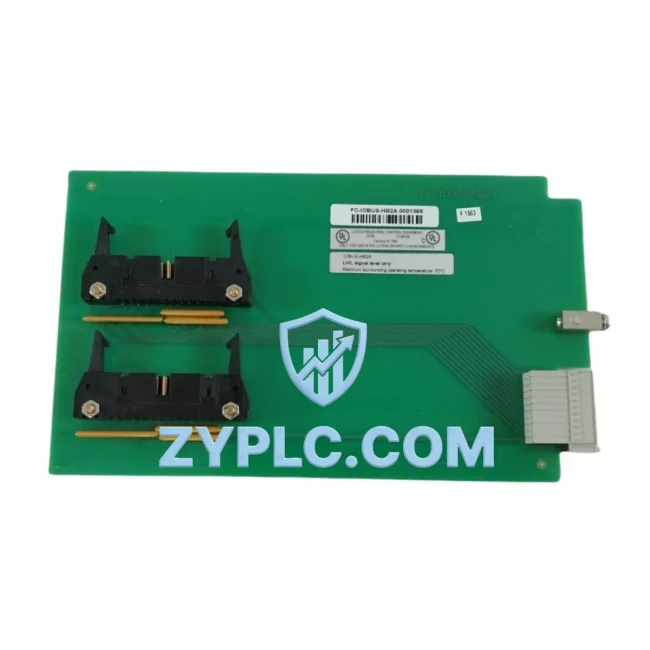

The Honeywell FC-IOBUS-HB2A is a high-reliability IO Bus Transfer Board engineered for seamless integration within the Honeywell Experion PKS Distributed Control System architecture. As a critical node in the industrial data chain, the FC-IOBUS-HB2A bridges field-level I/O signals with the upper-layer control and supervisory network, enabling real-time data acquisition, protocol-consistent communication, and deterministic signal transfer across complex automation environments.

In modern smart factory deployments, the integrity of the data path between field instruments, remote I/O modules, PLC controllers, and SCADA platforms is non-negotiable. The FC-IOBUS-HB2A fulfills this role by providing a stable, low-latency horizontal bus interface that connects I/O termination assemblies to the Experion PKS controller backbone. Its design ensures that process variables — from pressure transmitters, flow sensors, and temperature elements — are accurately captured and transmitted without signal degradation or communication dropout.

Network Communication Table

Connected Automation Data Flow

The FC-IOBUS-HB2A operates at the heart of the Experion PKS I/O subsystem, forming the physical and logical bridge between field instrumentation and the control layer. In a typical smart factory deployment, field signals originate from devices such as Honeywell STT850 Smart Temperature Transmitters and Honeywell ST 800 Pressure Transmitters, which feed analog and digital values into the I/O termination assemblies. The FC-IOBUS-HB2A transfers these signals across the horizontal bus to the Honeywell FC-SDIL-0800 Digital Input Module and FC-SDOA-0800 Digital Output Module, ensuring that every process variable is accurately represented in the controller’s memory map.

At the controller level, the Honeywell C300 Process Controller — paired with its FC-CPMK02 Controller Performance Module — receives the I/O data stream via the IO Bus architecture that the FC-IOBUS-HB2A supports. This data is then made available to the Honeywell Experion PKS SCADA/HMI platform, where operators monitor real-time process trends, configure alarm thresholds, and execute remote control commands. The FC-IOBUS-HB2A’s role in this chain is to guarantee that the bus handshake between the I/O modules and the controller backplane remains stable under continuous cyclic polling.

For facilities operating hybrid automation architectures, the FC-IOBUS-HB2A also supports integration scenarios where Honeywell FIM4 Field Interface Modules aggregate signals from HART-enabled field devices and pass them upstream through the IO Bus. In distributed plant layouts, Honeywell IOLIM Local Interface Modules extend the I/O network to remote marshalling cabinets, with the FC-IOBUS-HB2A serving as the termination and transfer point that maintains bus continuity. Variable frequency drives and motor control centers connected via Honeywell HC900 Hybrid Controllers can also feed operational data — speed references, torque feedback, fault status — into the Experion PKS network through this bus interface layer.

Edge computing nodes and industrial gateways that aggregate OPC-UA or Modbus TCP data from third-party PLCs and sensors can route their outputs into the Experion PKS environment, with the FC-IOBUS-HB2A ensuring that the I/O bus segment remains the reliable last-mile connection between the field and the control room. This makes the FC-IOBUS-HB2A an indispensable component in any Experion PKS expansion or retrofit project.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols, legacy field buses, and siloed control systems. The Honeywell FC-IOBUS-HB2A directly addresses these issues within the Experion PKS ecosystem by providing a standardized, high-integrity bus interface that eliminates the communication gaps between I/O termination hardware and the controller backplane.

In plants where multiple generations of control equipment coexist, the FC-IOBUS-HB2A enables a unified I/O communication layer that supports transparent data flow from field sensors to SCADA dashboards. Operators gain full production line visibility — real-time process values, equipment status, and alarm states — without the latency or data loss that characterizes poorly integrated systems. Remote diagnostic capabilities are enhanced because the IO Bus architecture allows the Experion PKS system to continuously poll I/O module health, detect communication faults, and generate maintenance alerts before equipment failures escalate into unplanned downtime.

System expansion is equally straightforward: additional I/O modules can be added to the bus segment supported by the FC-IOBUS-HB2A without requiring controller reconfiguration or network redesign. This scalability makes it ideal for phased smart factory upgrades, where new production lines or process units must be integrated into an existing Experion PKS infrastructure with minimal disruption. Every FC-IOBUS-HB2A unit shipped by ZYPLC undergoes functional testing and communication verification to confirm bus integrity and signal fidelity prior to dispatch.

Industrial Connectivity FAQ

Q1: What communication protocol does the FC-IOBUS-HB2A use, and is it compatible with third-party I/O modules?
The FC-IOBUS-HB2A uses Honeywell’s proprietary IO Bus protocol, which is specifically designed for the Experion PKS I/O subsystem. It is optimized for use with Honeywell-certified I/O modules and termination assemblies within the Experion PKS architecture. Integration with third-party modules requires protocol gateway hardware.

Q2: How does the FC-IOBUS-HB2A ensure network stability in high-noise industrial environments?
The FC-IOBUS-HB2A is designed to Honeywell’s industrial-grade electrical specifications, incorporating noise immunity measures appropriate for DCS cabinet environments. The horizontal bus architecture minimizes signal path length and reduces susceptibility to electromagnetic interference, supporting stable cyclic communication even in electrically demanding plant conditions.

Q3: Can the FC-IOBUS-HB2A support system expansion without disrupting existing I/O communication?
Yes. The IO Bus architecture allows additional I/O modules to be added to the bus segment incrementally. The FC-IOBUS-HB2A maintains bus continuity during expansion, and the Experion PKS controller can be reconfigured online to recognize new I/O points without requiring a full system restart in most deployment scenarios.

Q4: What testing and warranty coverage does ZYPLC provide for the FC-IOBUS-HB2A?
Every FC-IOBUS-HB2A unit is functionally tested and communication-verified before shipment. ZYPLC provides a 12-month warranty covering hardware defects and communication failures. In-stock units are available for immediate dispatch, supporting urgent maintenance and replacement requirements across global industrial sites.
