Honeywell FC-IOCHAS-0001R Redundant I/O for HC900

Honeywell FC-IOCHAS-0001R Redundant I/O for HC900

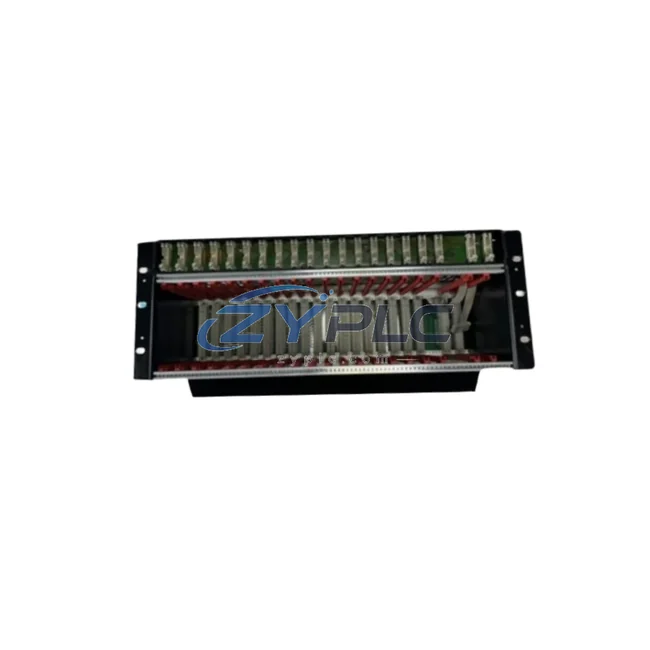

The Honeywell FC-IOCHAS-0001R is a high-availability redundant I/O chassis module purpose-built for the HC900 Hybrid Controller platform. Within a layered industrial automation architecture, this module occupies a critical position at the I/O layer — serving as the physical and logical bridge between field instrumentation and the HC900 controller core. Its redundant design ensures that signal acquisition and output command delivery remain uninterrupted even in the event of a single-point hardware failure, making it an indispensable component in process-critical environments where downtime carries significant operational and financial consequences.

In a complete HC900 control system architecture, the FC-IOCHAS-0001R does not operate in isolation. It functions as part of a tightly coordinated ecosystem that spans the control layer, I/O layer, network layer, power layer, human-machine interface layer, and execution layer. The controller chassis — typically populated with the HC900 CPU module such as the FC-PROC-0001 or FC-PROC-0002 — communicates with the I/O chassis over a dedicated high-speed backplane bus. The FC-IOCHAS-0001R chassis hosts a range of I/O modules including analog input cards (e.g., FC-AI16-0001), analog output cards (e.g., FC-AO08-0001), and digital I/O modules, all of which feed real-time process data upward to the controller for scan-cycle processing. This architecture ensures deterministic signal flow and minimizes latency between field measurement and control response.

Redundancy is a defining characteristic of the FC-IOCHAS-0001R. When paired with a redundant controller configuration using dual FC-PROC modules and the FC-RKCX-0001 redundancy kit, the I/O chassis supports bumpless switchover — meaning that in the event of a primary controller failure, the standby controller assumes control without interrupting field I/O scanning. This capability is essential in applications such as refinery distillation column control, power plant boiler management, and municipal water treatment dosing systems, where even a momentary loss of control output can trigger safety shutdowns or product quality deviations.

At the network layer, the HC900 system communicates with supervisory SCADA platforms and historian servers via Ethernet using Modbus TCP or OPC DA/UA protocols. The FC-IOCHAS-0001R chassis integrates seamlessly into this communication hierarchy, with the controller managing all upstream data exchange while the I/O chassis handles field-level signal conditioning. For distributed architectures, remote I/O expansion is supported through the FC-RKCX series remote chassis kits, allowing engineers to extend the I/O footprint across large plant areas without adding controller nodes — a significant advantage in greenfield expansions or phased capacity upgrades.

Power integrity is maintained through the HC900 power supply modules, such as the FC-PSU-0001, which provide regulated 24 VDC to the I/O chassis backplane. The FC-IOCHAS-0001R is designed to accept redundant power feeds, ensuring that a power supply failure does not compromise I/O availability. This power redundancy, combined with the module’s hot-swap capability, allows maintenance teams to replace individual I/O cards during live operation — a feature that dramatically reduces planned maintenance windows and supports continuous production targets in 24/7 manufacturing environments.

From an HMI and SCADA integration perspective, the HC900 system is commonly paired with Honeywell’s Station Designer or third-party HMI platforms via OPC connectivity. Operators interact with process variables sourced directly from the I/O modules housed in the FC-IOCHAS-0001R chassis, viewing real-time analog trends, alarm states, and digital status indicators on operator workstations. The system integration of the FC-IOCHAS-0001R within this data flow ensures that every field signal is accurately represented at the supervisory level, supporting informed operator decision-making and regulatory compliance reporting.

Product Specification Table

System Compatibility Notes

Deploying the FC-IOCHAS-0001R within a complete HC900 control system requires careful coordination across multiple hardware layers. At the controller level, the FC-PROC-0001 or FC-PROC-0002 CPU modules serve as the computational core, executing control strategies and managing I/O scan cycles. The FC-RKCX-0001 redundancy kit links the primary and standby controller chassis, enabling automatic failover without operator intervention. Within the I/O chassis itself, engineers typically populate slots with a combination of FC-AI16-0001 analog input modules for 4–20 mA process signals, FC-AO08-0001 analog output modules for control valve positioning, and FC-DI16-0001 or FC-DO16-0001 digital I/O modules for discrete device status and command outputs.

For applications requiring intrinsically safe field wiring in hazardous areas, Zener barrier or galvanic isolator terminal assemblies are installed between the I/O module terminals and field junction boxes, maintaining ATEX or IECEx compliance without modifying the HC900 chassis hardware. Communication gateways such as the HC900 Ethernet Interface module extend connectivity to plant-wide DCS networks or MES systems, enabling seamless data exchange with historian platforms and production scheduling software. The FC-PSU-0001 power supply module, mounted within the controller chassis, provides stable regulated power to both the controller and I/O backplane, with optional redundant power supply configurations available for maximum uptime assurance.

Industrial Application Notes

The FC-IOCHAS-0001R finds application across a broad spectrum of process industries where system reliability and signal integrity are non-negotiable. In oil and gas refining, the module supports continuous monitoring and control of distillation columns, heat exchangers, and compressor trains, where redundant I/O ensures that process upsets are detected and responded to without delay. In power generation facilities, it integrates with boiler management systems and turbine control loops, providing the I/O backbone for steam temperature, pressure, and flow regulation. Municipal water treatment plants rely on HC900-based systems with redundant I/O chassis to manage chemical dosing, filtration backwash cycles, and pump station control across geographically distributed sites.

In the mining and metallurgy sector, the FC-IOCHAS-0001R supports ore processing control systems where harsh environmental conditions — including high ambient temperatures, vibration, and airborne particulates — demand robust hardware with proven field reliability. Packaging and food processing lines benefit from the module’s hot-swap capability, allowing I/O card replacement during scheduled micro-stops without requiring a full system shutdown. Chemical and petrochemical batch processing applications leverage the HC900’s integrated batch sequencing capabilities, with the FC-IOCHAS-0001R providing the physical I/O infrastructure to execute recipe-driven process steps with precision and repeatability.

Product Compatibility FAQ

Q1: Is the FC-IOCHAS-0001R compatible with both simplex and redundant HC900 controller configurations?
Yes. The FC-IOCHAS-0001R is designed to operate in both simplex and redundant HC900 controller architectures. In a simplex configuration, it functions as a standard I/O expansion chassis. When paired with dual FC-PROC controller modules and the FC-RKCX-0001 redundancy kit, it supports full hot-standby redundancy with automatic bumpless switchover, ensuring continuous I/O availability during controller failover events.

Q2: Can I mix analog and digital I/O modules within the same FC-IOCHAS-0001R chassis, and are there slot assignment restrictions?
Yes, the HC900 I/O chassis supports mixed I/O module populations within a single chassis. Analog input (FC-AI16-0001), analog output (FC-AO08-0001), and digital I/O modules (FC-DI16-0001, FC-DO16-0001) can be installed in any available slot. Slot assignment is configured through Honeywell’s HC Designer software, which automatically maps physical slot positions to controller I/O tags. Engineers should consult the HC900 system planning guide to verify power budget constraints when fully populating a chassis with high-density I/O modules.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance planning?
All FC-IOCHAS-0001R units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. The warranty includes technical support for installation and commissioning queries, as well as replacement unit provision in the event of a verified hardware fault. For long-term maintenance planning, ZYPLC maintains inventory of HC900 series spare parts — including I/O modules, power supplies, and controller components — to support customers’ multi-year maintenance contracts and emergency breakdown requirements. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for spare parts availability and maintenance program options.
